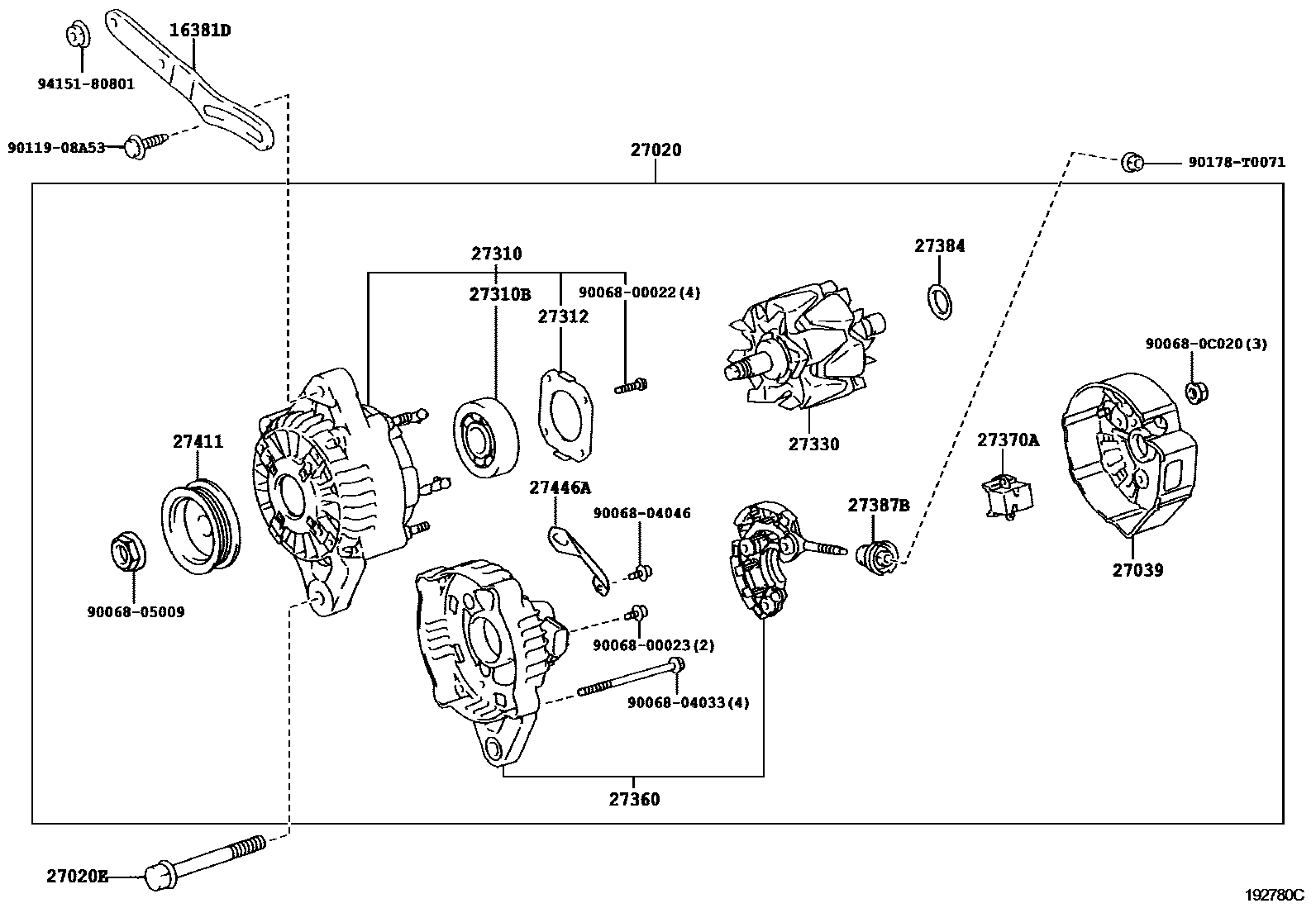

Toyota VIOS — ALTERNATOR
16381DBAR, FAN BELT ADJUSTING
27020ALTERNATOR ASSY
12V 80A
27020EBOLT(FOR ALTERNATOR)
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27360COIL ASSY, ALTERNATOR
27370AHOLDER ASSY, ALTERNATOR BRUSH
27384WASHER
27387BINSULATOR, ALTERNATOR TERMINAL
27411PULLEY, ALTERNATOR
27446ACLAMP
9006800022
main90068-00022
9006800023
main90068-00023
9006804033
main90068-04033
9006804046
main90068-04046
9006805009
main90068-05009
900680C020
main90068-0C020
9011908A53
main90119-08A53
90178T0071
main90178-T0071
9415180801
main94151-80801
23 parts on this diagram · 1 diagram in section
ALTERNATOR for Toyota VIOS
This section contains 23 genuine Toyota parts for the ALTERNATOR system of the Toyota VIOS. Key components include: BAR, FAN BELT ADJUSTING, ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), COVER, ALTERNATOR REAR END, FRAME ASSY, DRIVE END, ALTERNATOR.
