Toyota VIOS — ABS & VSC

4102

89516WIRE, SKID CONTROL SENSOR

main89516-0D090iNCP93..RHD..MTM..(15J,LIMO)200702-201401

RH

main89516-0D100iNCP92..13E;NCP93..ATM;NCP93..MTM..(15E,15G,E,J)200702-201401

LH

89542SENSOR, SPEED, FRONT RH

main89542-0D040iNCP93..ATM;NCP9#..MTM..(13E,15E,15G,E,J)200712-201403

main89542-52030iNCP93..LIMO..IDN;NCP9#..13E,15E,15G,15J,15S,E,G,J,S200702-200712

89543SENSOR, SPEED, FRONT LH

main89543-0D040iNCP93..RHD..MTM..(15J,LIMO)200712-201403

main89543-52030iNCP93..LIMO..IDN;NCP9#..13E,15E,15G,15J,15S,E,G,J,S200702-200712

J-ECO PACKAGE

90119T0229

main90119-T0229

9017906178

main90179-06178

91611B0614

main91611-B0614

91671A0614

main91671-A0614

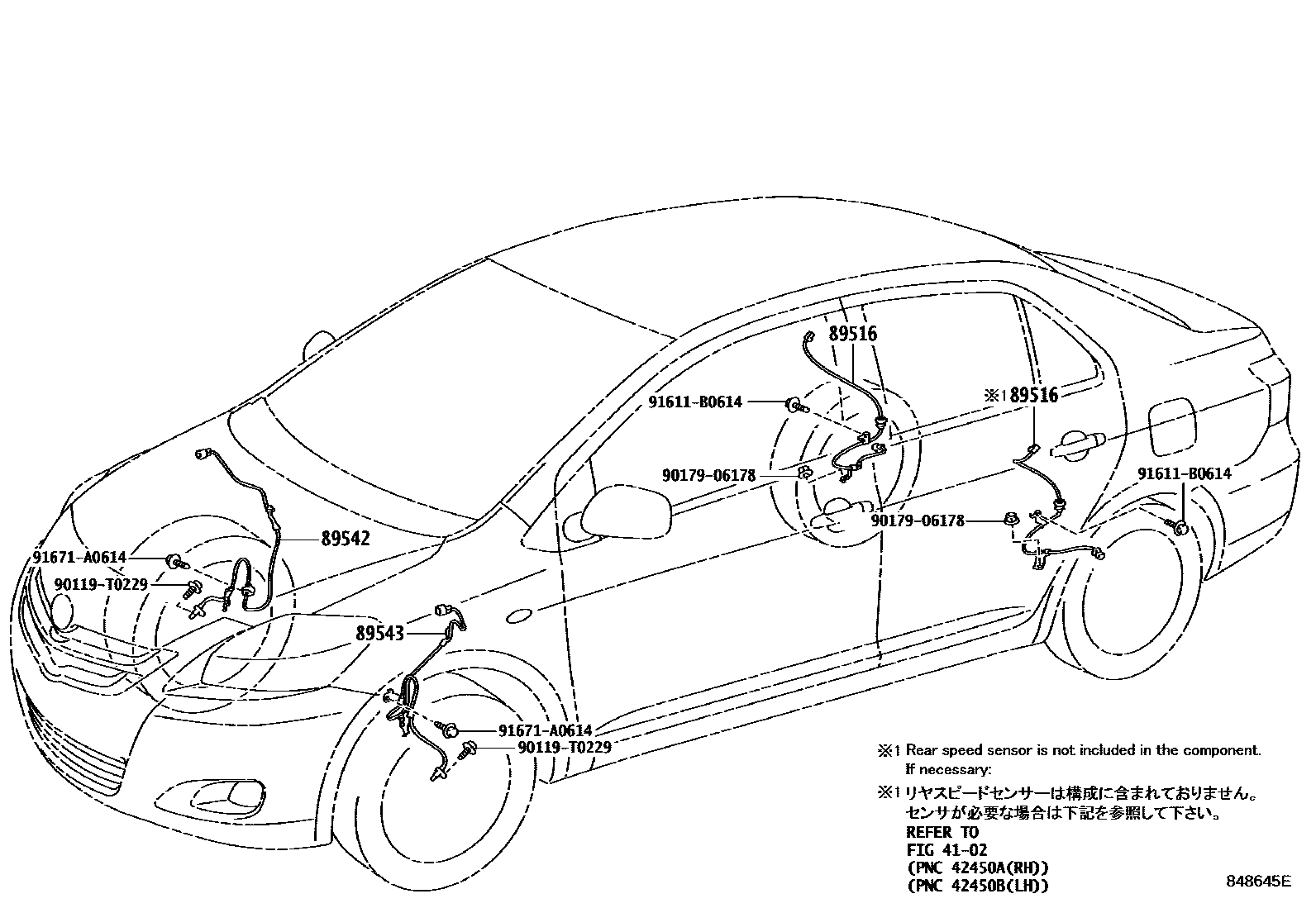

8 parts on this diagram · 1 diagram in section
