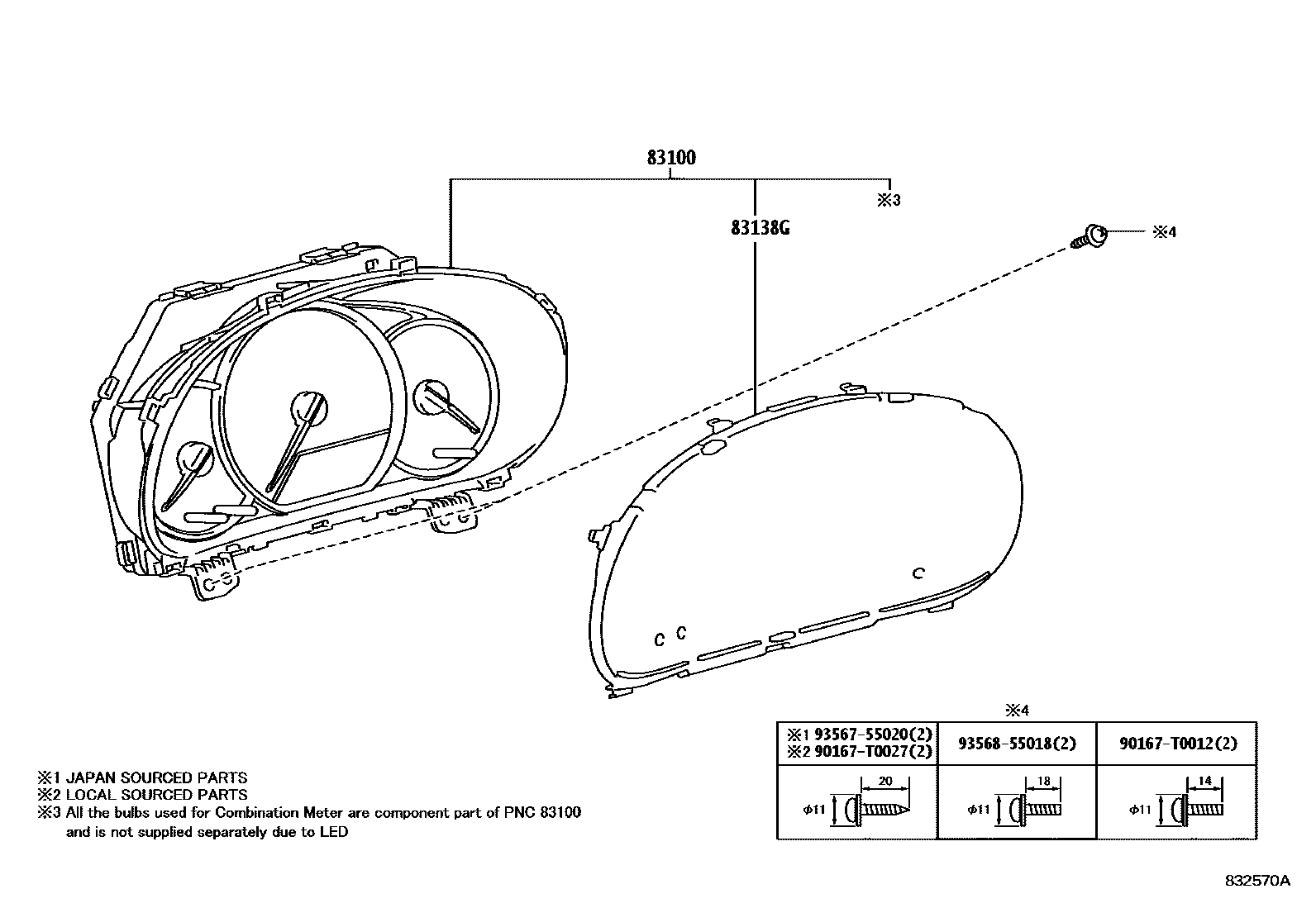

Toyota VIOS/YARIS — METER
83100METER ASSY, COMBINATION
DENSO,CHILE SPEC&YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH; DENSO,COSTA RICA SPEC&YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH; DENSO,ECUADOR&YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH; DENSO,GUATEMALA&YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH; DENSO,YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH
DENSO,ECO PACKAGE&YP2 PACKAGE
DENSO,YP2 PACKAGE
DENSO,G PACKAGE&YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH
DENSO,YP2 PACKAGE
DENSO,YP2 PACKAGE
DENSO,YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH
DENSO,YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH
DENSO,YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH
DENSO,YP2 PACKAGE
DENSO,YP2 PACKAGE
DENSO,CHILE SPEC&YP2 PACKAGE; DENSO,COSTA RICA SPEC&YP2 PACKAGE; DENSO,ECUADOR&YP2 PACKAGE; DENSO,GUATEMALA&YP2 PACKAGE; DENSO,YP2 PACKAGE
DENSO,YP2 PACKAGE
DENSO,YP2 PACKAGE
DENSO,YP2 PACKAGE
DENSO,YP2 PACKAGE&SMC PACKAGE
DENSO,YP1 PACKAGE&ACTIVE SAFETY PACKAGE-WITH&MULTI-INFORMATION DISPLAY-WITH(TFT DISPLAY) & WITHOUT(PICTURE)
DENSO,YP2 PACKAGE
DENSO,YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH
83138GGLASS, COMBINATION METER
ECO PACKAGE&YP2 PACKAGE; YP2 PACKAGE
main83852-0UY60iNSP151..5F..GEN; NSP151..5F..GEN;NSP151..LHD..CVT..R;NSP150,152..(G,R)..(GEN,PKN,TH); NSP151..CVT..R..GEN; NSP151..R..GEN202303
CHILE SPEC&YP2 PACKAGE; COSTA RICA SPEC&YP2 PACKAGE; ECUADOR&YP2 PACKAGE; GUATEMALA&YP2 PACKAGE; YP2 PACKAGE
YP2 PACKAGE; YP2 PACKAGE&SMC PACKAGE
90167T0012
main90167-T0012
90167T0027
main90167-T0027
9356755020
main93567-55020
9356855018
main93568-55018
6 parts on this diagram · 1 diagram in section
METER for Toyota VIOS/YARIS
This section contains 6 genuine Toyota parts for the METER system of the Toyota VIOS/YARIS. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
