Toyota VIOS/YARIS — WINDSHIELD WASHER

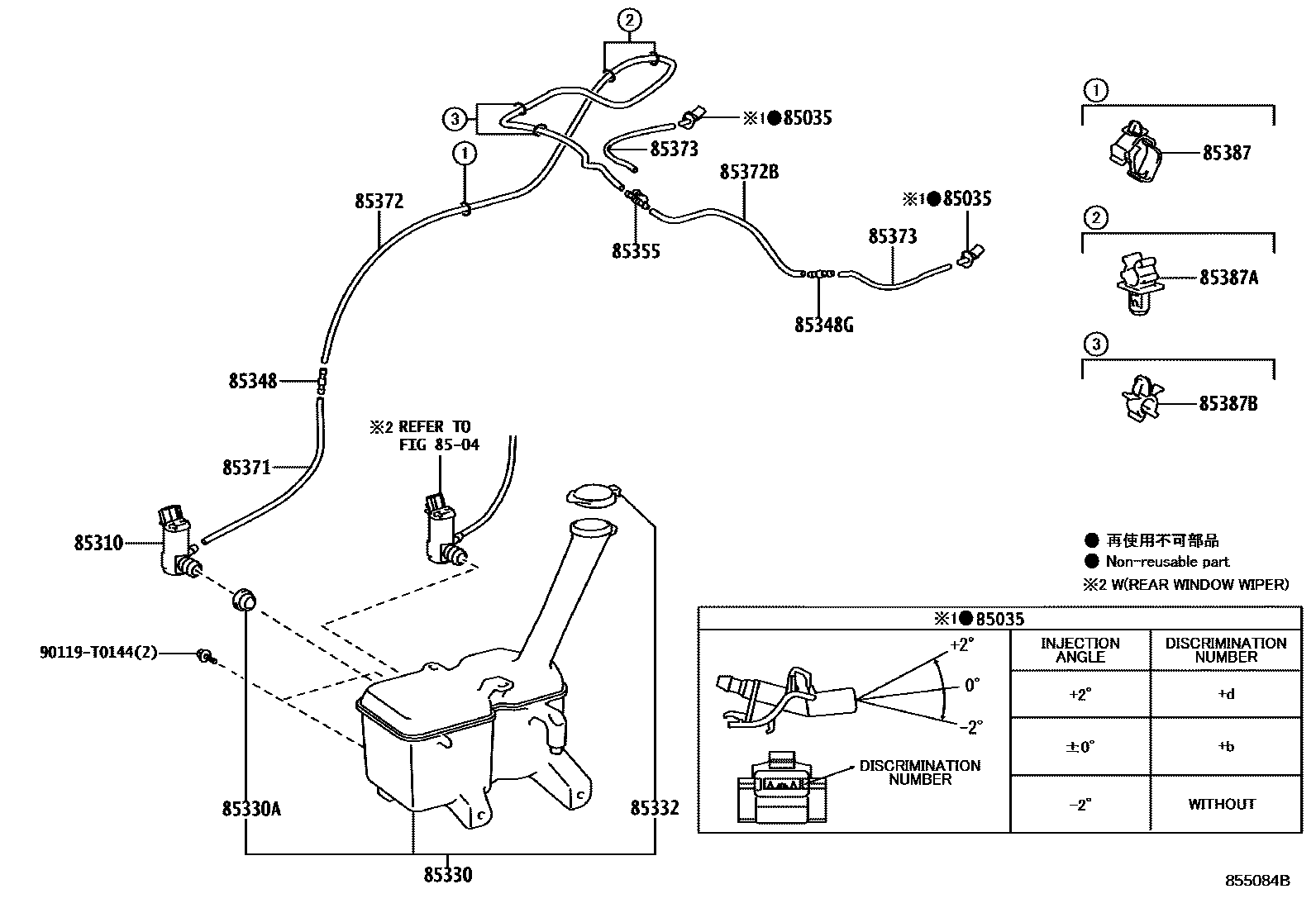

Parts diagram

85035NOZZLE SUB-ASSY, WASHER

main85381-30220i202303

ANGLE 0

main85381-30230i202303

ANGLE -2

main85381-30240i202303

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0D131i202303

85330JAR ASSY, WINDSHIELD WASHER

main85310-0D430i202407

main85315-0D220i202304-202308

main85315-0D221i202308

main85315-0D230i202303-202308

main85315-0D231i202308

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i202303

85332CAP, WINDSHIELD WASHER JAR

main85316-02630i202303-202308

main85316-02631i202308

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i202305

main85375-02330i202303

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i202305

main85375-02330i202303

85355VALVE, WINDSHIELD WASHER HOSE

main85321-0A010i202303

main85321-28020i202305

main85348-14390i202303

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33207i202303

L=230

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-59167i202303

L=1620

main90099-59371i202305

L=1620

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-59176i202303

L=300

main90446-07001i202305

L=1800(*H,L=300)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33153×2i202303

L=180

main90068-33160i202303

L=40

main90099-33299i202305

L=1000(*H,L=180)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-0K100i202303

85387ACLAMP, WASHER, NO.2

main85371-52110×2i202303

85387BCLAMP, WASHER, NO.3

main90469-T0005×2i202303

90119T0144

main90119-T0144

17 parts on this diagram · 3 diagrams in section

WINDSHIELD WASHER for Toyota VIOS/YARIS

This section contains 20 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota VIOS/YARIS. Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
