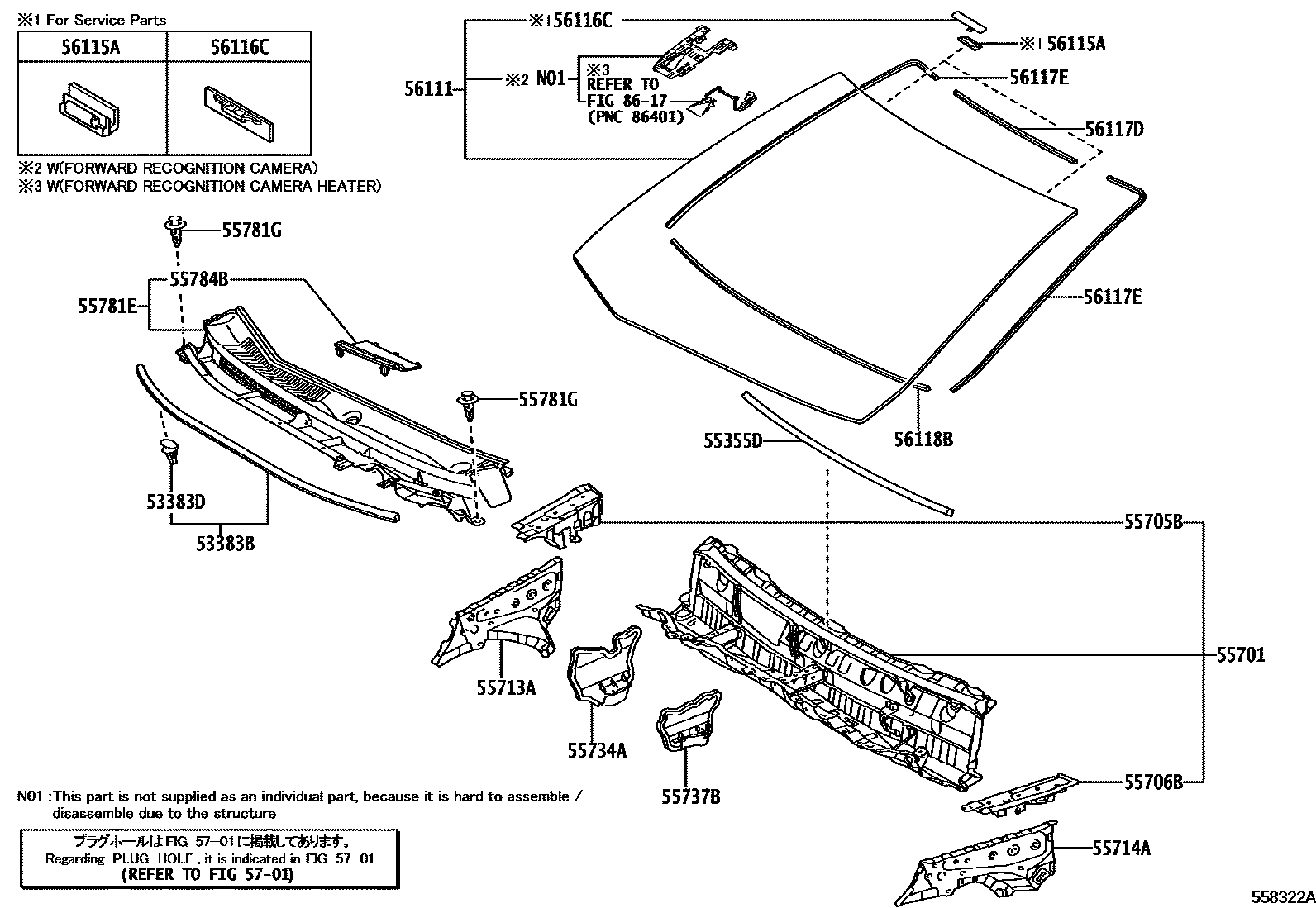

Toyota VIOS/YARIS — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55355DCUSHION, INSTRUMENT PANEL, NO.1
main55355-0D480iNSP151..5F..GEN; NSP151..CVT..R..GEN; NSP151..MA,PKN,VN;NSP150,152..GEN,PKN,TH; NSP151..R..GEN202303
CHILE SPEC; COSTA RICA SPEC; ECUADOR; GUATEMALA
55701PANEL SUB-ASSY, COWL
CHILE SPEC; COSTA RICA SPEC; ECUADOR; GUATEMALA
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55734APLATE, WATER GUARD, RH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2
56111GLASS, WINDSHIELD
main56101-0D390supersedes 56101-0D370iNSP150..GEN;NSP151..5D..VN; NSP151..5F..GEN; NSP151..CVT..R..GEN; NSP151..R..GEN202303
CHILE SPEC; COSTA RICA SPEC; ECUADOR; GUATEMALA
ECO PACKAGE
YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH
YP1 PACKAGE&ACTIVE SAFETY PACKAGE-WITH
main56101-0DE30supersedes 56101-0D370iNSP150..GEN; NSP151..5F..GEN; NSP151..CVT..R..GEN; NSP151..R..GEN202303
ACTIVE SAFETY PACKAGE-WITH; CHILE SPEC&ACTIVE SAFETY PACKAGE-WITH; COSTA RICA SPEC&ACTIVE SAFETY PACKAGE-WITH; ECUADOR&ACTIVE SAFETY PACKAGE-WITH; GUATEMALA&ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH
G PACKAGE&YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
main56117-0D160iNSP150,151..GEN; NSP151..5D..VN; NSP151..5D..VN;NSP15#..GCC,GEN,MA,PKN,TH; NSP151..5F..GEN; NSP151..CVT..R..GEN; NSP151..R..GEN; NSP152202303
L=549; L=549,ACTIVE SAFETY PACKAGE-WITH; L=549,CHILE SPEC; L=549,CHILE SPEC&ACTIVE SAFETY PACKAGE-WITH; L=549,COSTA RICA SPEC; L=549,COSTA RICA SPEC&ACTIVE SAFETY PACKAGE-WITH; L=549,ECO PACKAGE; L=549,ECUADOR; L=549,ECUADOR&ACTIVE SAFETY PACKAGE-WITH; L=549,G PACKAGE&YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH; L=549,GUATEMALA; L=549,GUATEMALA&ACTIVE SAFETY PACKAGE-WITH; L=549,YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH
L=549; L=549,YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH
56117EDAM, WINDOW GLASS ADHESIVE
main56117-0D170×2iNSP150,151..GEN; NSP151..5D..VN; NSP151..5D..VN;NSP15#..GCC,GEN,MA,PKN,TH; NSP151..5F..GEN; NSP151..CVT..R..GEN; NSP151..R..GEN; NSP152202303
L=915; L=915,ACTIVE SAFETY PACKAGE-WITH; L=915,CHILE SPEC; L=915,CHILE SPEC&ACTIVE SAFETY PACKAGE-WITH; L=915,COSTA RICA SPEC; L=915,COSTA RICA SPEC&ACTIVE SAFETY PACKAGE-WITH; L=915,ECO PACKAGE; L=915,ECUADOR; L=915,ECUADOR&ACTIVE SAFETY PACKAGE-WITH; L=915,G PACKAGE&YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH; L=915,GUATEMALA; L=915,GUATEMALA&ACTIVE SAFETY PACKAGE-WITH; L=915,YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH
L=915; L=915,YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH
56118BDAM, WINDOW GLASS ADHESIVE, NO.2
main56117-0D180iNSP150,151..GEN; NSP151..5D..VN; NSP151..5D..VN;NSP15#..GCC,GEN,MA,PKN,TH; NSP151..5F..GEN; NSP151..CVT..R..GEN; NSP151..R..GEN; NSP152202303
L=1182; L=1182,ACTIVE SAFETY PACKAGE-WITH; L=1182,CHILE SPEC; L=1182,CHILE SPEC&ACTIVE SAFETY PACKAGE-WITH; L=1182,COSTA RICA SPEC; L=1182,COSTA RICA SPEC&ACTIVE SAFETY PACKAGE-WITH; L=1182,ECO PACKAGE; L=1182,ECUADOR; L=1182,ECUADOR&ACTIVE SAFETY PACKAGE-WITH; L=1182,G PACKAGE&YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH; L=1182,GUATEMALA; L=1182,GUATEMALA&ACTIVE SAFETY PACKAGE-WITH; L=1182,YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH
L=1182; L=1182,YP2 PACKAGE&ACTIVE SAFETY PACKAGE-WITH
5701HOLE PLUG
8617PRE-COLLISION SYSTEM
21 parts on this diagram · 2 diagrams in section
COWL PANEL & WINDSHIELD GLASS for Toyota VIOS/YARIS
This section contains 23 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota VIOS/YARIS. Key components include: SEAL, HOOD TO COWL TOP, CLIP(FOR HOOD TO COWL TOP SEAL), CUSHION, INSTRUMENT PANEL, NO.1, PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP SIDE, RH.
