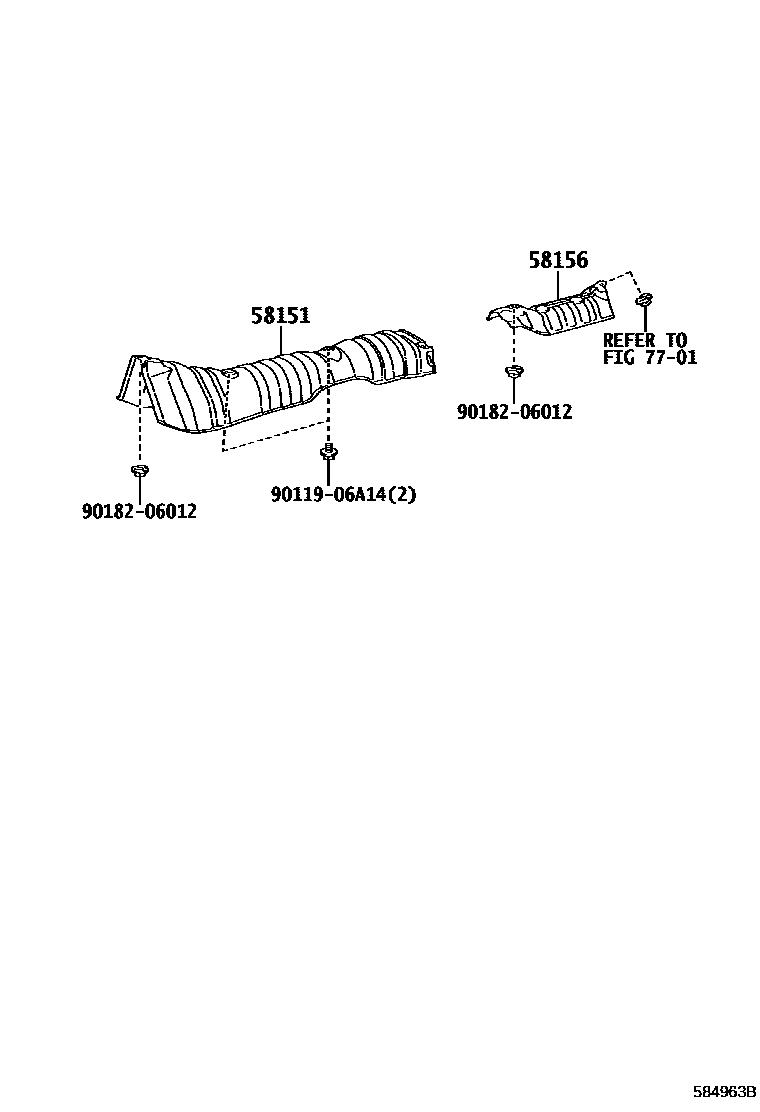

Toyota VIOS/VIOS FS (CHINA) — FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0D110i201311-201609

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-0D110i201311-201609

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011906A14

main90119-06A14

9018206012

main90182-06012

5 parts on this diagram · 1 diagram in section

FLOOR INSULATOR for Toyota VIOS/VIOS FS (CHINA)

This section contains 5 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota VIOS/VIOS FS (CHINA). Key components include: INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR, FRONT FLOOR HEAT, NO.4, FUEL TANK & TUBE.
