Toyota VIOS/VIOS FS (CHINA) — ABS & VSC

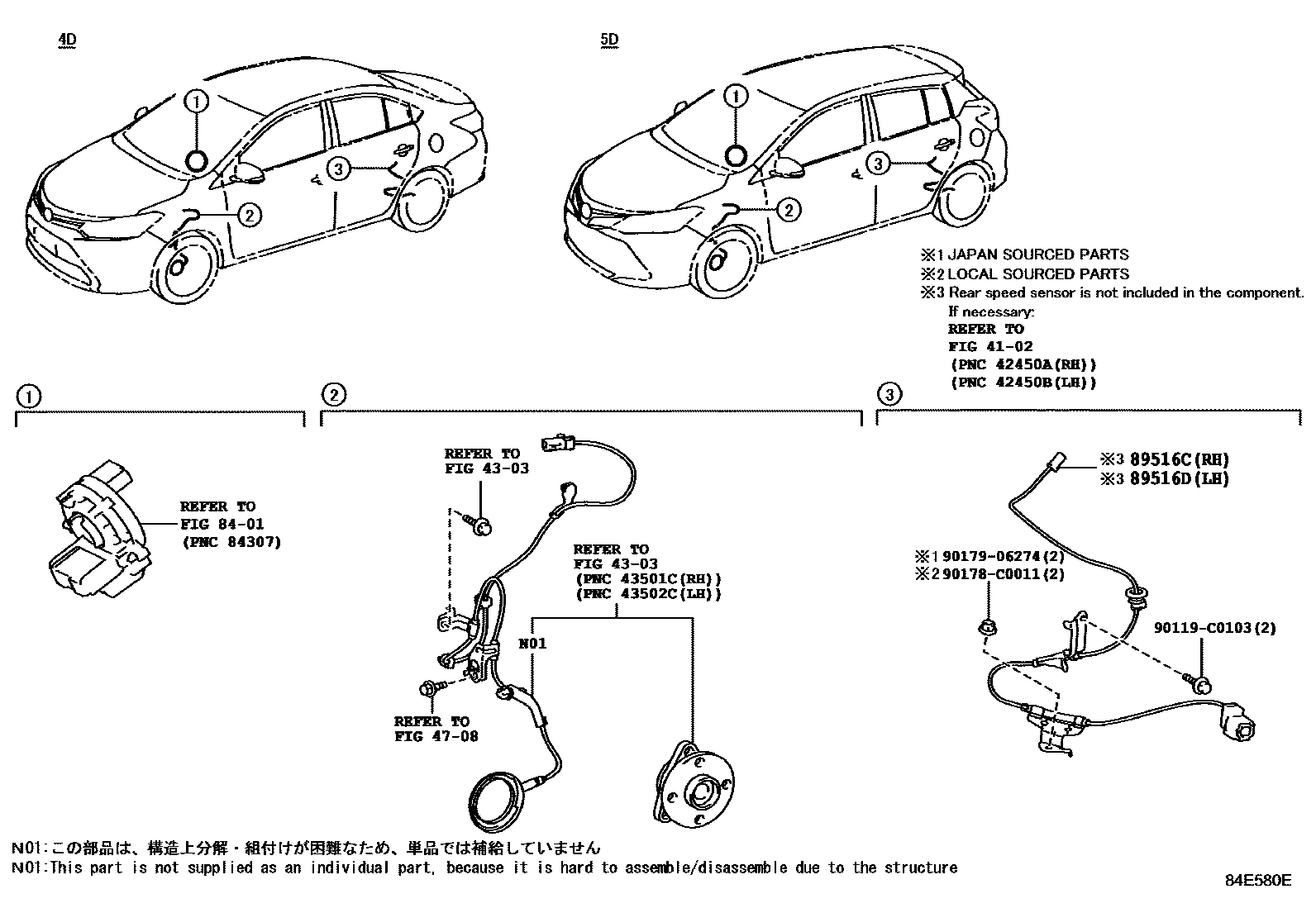

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

4303FRONT AXLE HUB

→ Go to FIG 43-03

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-0D250i201311-201609

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-0D260i201311-201609

90119C0103

main90119-C0103

90178C0011

main90178-C0011

9017906274

main90179-06274

9 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota VIOS/VIOS FS (CHINA)

This section contains 9 genuine Toyota parts for the ABS & VSC system of the Toyota VIOS/VIOS FS (CHINA). Key components include: REAR AXLE SHAFT & HUB, FRONT AXLE HUB, BRAKE TUBE & CLAMP, SWITCH & RELAY & COMPUTER, WIRE, SKID CONTROL SENSOR, RH.
