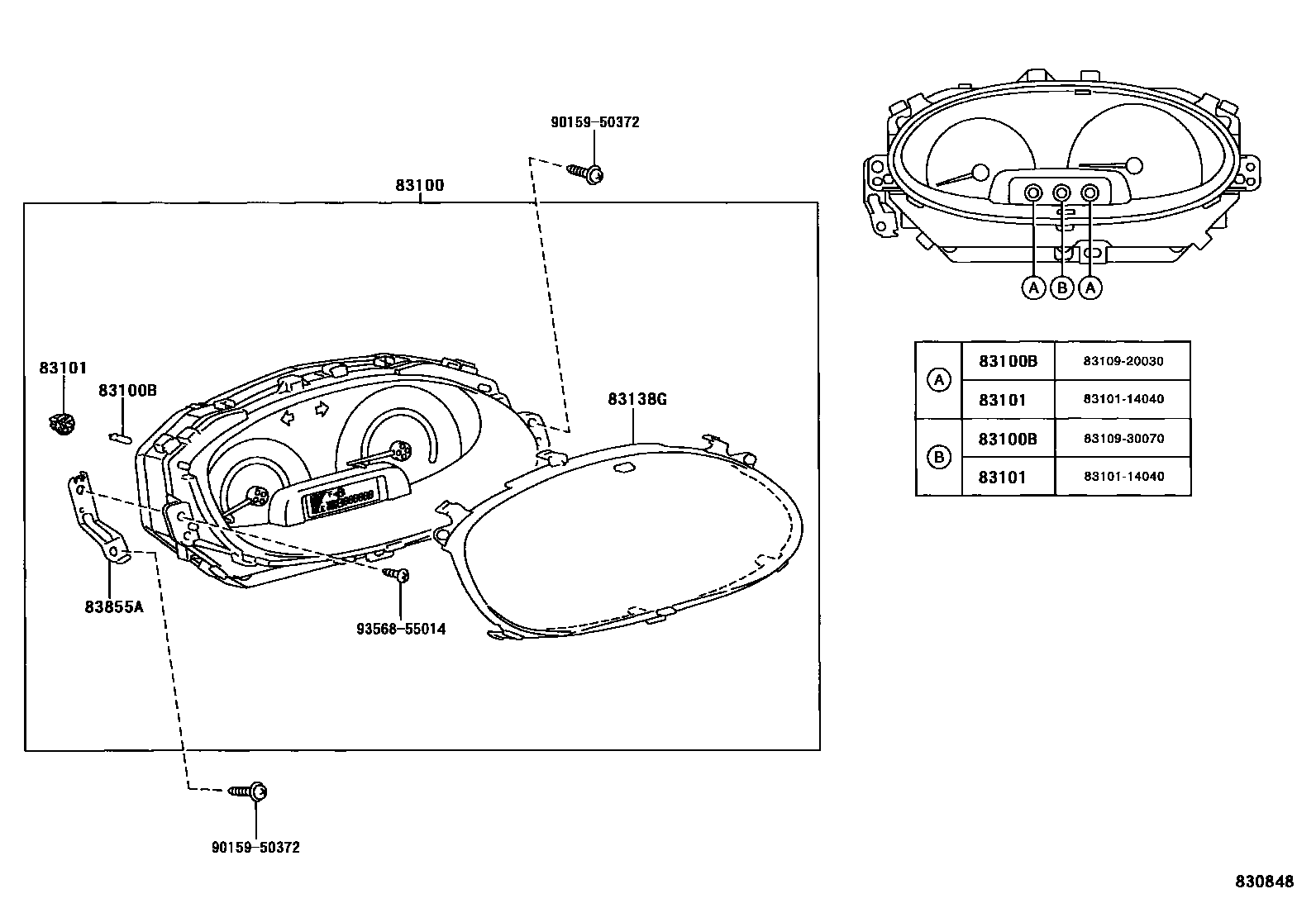

Toyota VIOS/SOLUNA VIOS — METER
83100METER ASSY, COMBINATION
W(ABS)
W(SRS AIR BAG)
W(ABS & SRS AIR BAG)
W(SRS AIR BAG)
W(SRS AIR BAG)
W(ABS & SRS AIR BAG)
W(ABS & SRS AIR BAG)
W(ABS & SRS AIR BAG)
W(ABS)
W(ABS)
W(SRS AIR BAG)
W(ABS & SRS AIR BAG)
W(ABS & SRS AIR BAG)
BRUNEI OR SINGAPORE SPEC
INDONESIA SPEC
W(ABS & SRS AIR BAG)
W(SRS AIR BAG)
W(SRS AIR BAG)
INDONESIA SPEC
INDONESIA SPEC
W(ABS)
BRUNEI OR SINGAPORE SPEC
83100BBULB, COMBINATION METER, NO.1
12V 1.4W,BLUE CAP,TYPE A:REFER ILLUST.
14V 2.0W,W/O SOCKET,TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
14V 1.4W,TYPE A:REFER ILLUST.
14V 1.12W,TYPE A:REFER ILLUST.
14V0.84W W/O(SOCKET),TYPE B:REFER ILLUST.
12V 1.2W W/O SOCKET,TYPE C:REFER ILLUST.
83101SOCKET SUB-ASSY, COMBINATION METER BULB
83138GLASS, SPEEDOMETER
83138GGLASS, COMBINATION METER
83855ABRACKET, COMBINATION METER, NO.1
9015950372
main90159-50372
9356855014
main93568-55014
8 parts on this diagram · 7 diagrams in section
METER for Toyota VIOS/SOLUNA VIOS
This section contains 16 genuine Toyota parts for the METER system of the Toyota VIOS/SOLUNA VIOS. Key components include: METER ASSY, COMBINATION, BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, CASE, COMBINATION METER, CASE, COMBINATION METER, NO.2.
