Toyota VIOS/SOLUNA VIOS — FRONT AXLE HUB

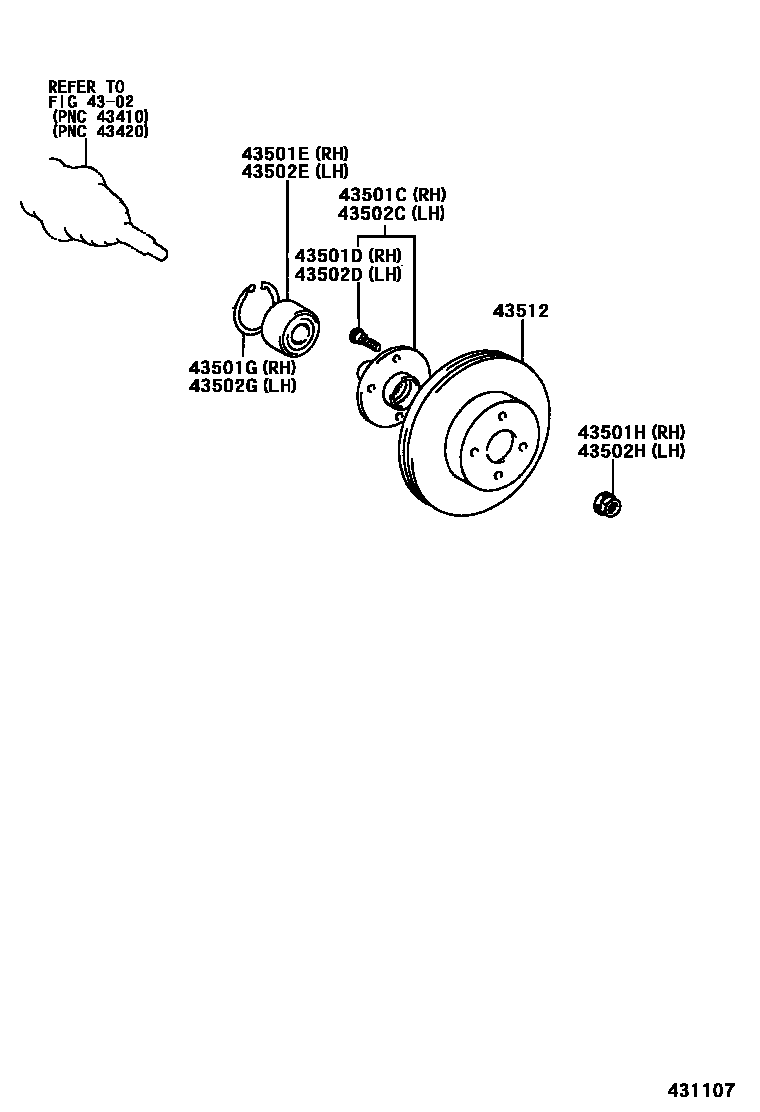

Parts diagram

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-0D020i200511-200608

main43502-0D030i200510-200709

main43502-0D040i200303-200510

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×4i200210-200511

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36156i200210-200511

main90080-36178i200510-200709

main90080-36201i200510-201204

main90369-T0009i201204

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-77001i200210-200511

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i200212-200603

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-0D020i200210-200511

main43502-0D030i200510-200709

main43502-0D040i200510

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×4i200210-200511

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36156i200608

main90080-36178i200510-200709

main90080-36201i200303-200510

main90369-T0009i201204

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-77001i200212-200603

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i200212-200603

43512DISC, FRONT

main43512-0D020×2i200608

main43512-0D030×2i200212-200603

main43512-0D040×2i200510-201309

main43512-52050×2i200210-200511

12 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota VIOS/SOLUNA VIOS

This section contains 12 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota VIOS/SOLUNA VIOS. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH).
