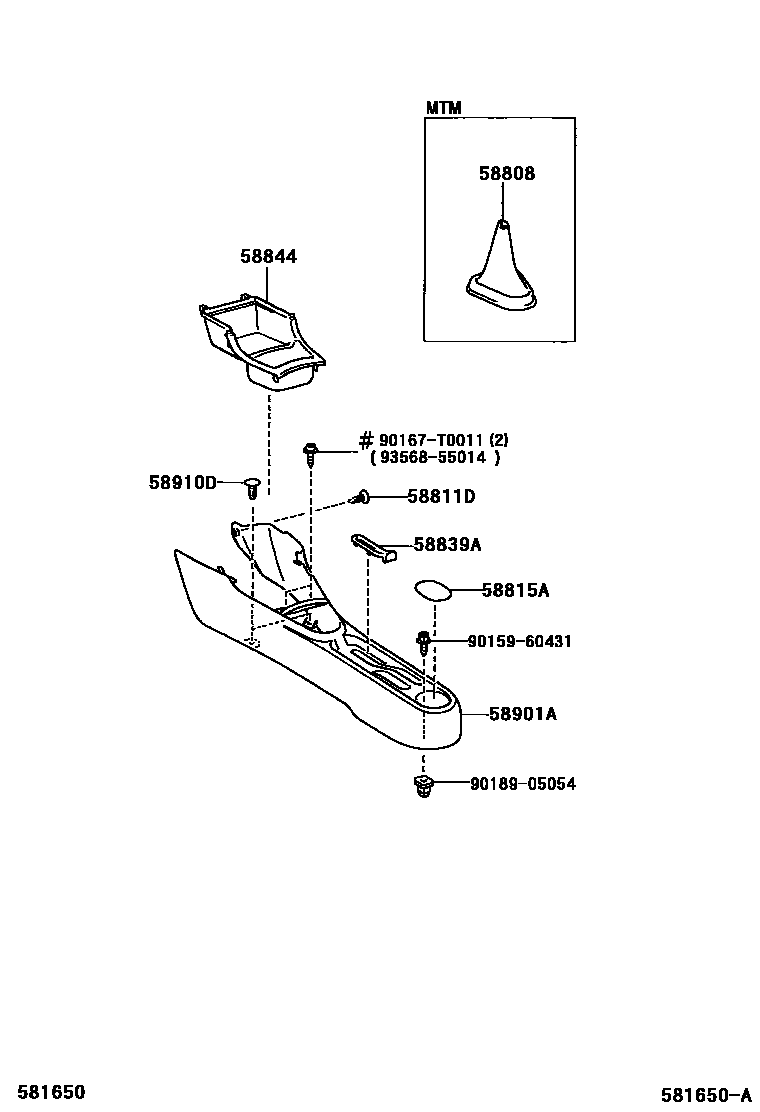

Toyota VIOS/SOLUNA VIOS — CONSOLE BOX & BRACKET

0001 1 0006 1

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-0D010-C0iNCP42..MTM..TH200212-200510

BLACK,TRIM1#

main58808-0D030-C0iSCP41..MTM200608

BLACK,TRIM0#,1#

main58808-0D080-C0iNCP4#..LHD..MTM200305-200603

BLACK,TRIM1#

58811DCLIP(FOR CONSOLE BOX)

main90467-05020-A4iAXP4#200210-200511

IVORY,TRIM0#

sub90467-05027

main90467-05020-P1iNCP42..MTM..15S;NCP42..15E..TAIW;NCP42..(15G,15J)..(MA,TAIW)200510-201309

DK.GRAY,TRIM1#

sub90467-05027

main90467-05020-P2iAXP42..15GLI,GLS200511-200608

STONE,TRIM1#

sub90467-05027

58815ACARPET, CONSOLE BOX

main58815-0D010-A1iSCP4#..GL,GLI,GLXI200608

IVORY,TRIM0#

main58815-0D010-B0iAXP42..15GLI,GLS200511-200608

DARK GRAY,TRIM1#

main58815-0D020-A1iNCP42..(15E,15G)..TAIW200404-200510

IVORY,TRIM0#

main58815-0D020-C1iNCP42..TAIW200404-200510

BLACK,TRIM1#

main58815-0D030-A0iNCP42..ATM..(15E,15S)..TH200311-200510

IVORY,TRIM0#

main58815-0D030-C1iNCP42..MTM..(15E,15G)..(TH,VN)200510-200709

W/O(CONSOLE BOX DOOR),BLACK,TRIM1#

main58815-0D060-A0iNCP42200710-201303

IVORY,TRIM0#

main58815-0D060-C0iNCP4#..PHL,VN;NCP42..15J..TAIW200510-201309

BLACK,TRIM1#

main58815-0D070-A0iNCP42..RHD..ATM..(15E,15S)200510-200708

IVORY,TRIM0#

main58815-0D070-C0iNCP42..15E..TH;NCP42..RHD..(15G,15J,15S)200510-200708

BLACK,TRIM1#

main58815-0D090-A0iNCP42..(15E,15G)..TAIW200510-200710

IVORY,TRIM0#

main58815-0D090-C0iNCP42..(15E,15G)..TAIW200510-200710

BLACK,TRIM1#

58839ACOVER, CONSOLE BOX HOLE

main58917-0D020-A0iAXP4#..15GLI,GL,GLXI200511-200608

IVORY,TRIM0#

main58917-0D020-B0iSCP42..GLI,GLS200608

STONE,TRIM1#

main58917-0D030-A0iNCP42..TAIW200510-201303

IVORY,TRIM0#

main58917-0D030-B0iNCP42..VN200305-200404

STONE,TRIM1#

main58917-0D030-B1iNCP42..TAIW200303-200510

DK.GRAY,TRIM1#

main58917-0D040-A0iNCP42..ATM..(15E,15S)..TH200404-200510

IVORY,TRIM0#

main58917-0D040-B0iNCP42..VN200404-200603

STONE,TRIM1#

main58917-0D040-B1iNCP42..ATM..15S200510-200702

DK.GRAY,TRIM18

58844BEZEL, CONSOLE BOX

main58844-0D010iAXP4#200210-200511

main58844-0D020iNCP4#..LHD200510

main58844-0D030iNCP42..RHD200212-200512

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-0D020-A0iSCP4#..GL,GLI,GLXI200608

IVORY,TRIM0#

main58911-0D020-B0iAXP42..15GLI,GLS200511-200608

STONE,TRIM1#

main58911-0D030-A0iNCP42..(15E,15G)..TAIW200303-200510

IVORY,TRIM0#

main58911-0D030-B0iNCP42..VN200603-200709

W/O(CONSOLE BOX DOOR),STONE,TRIM1#

main58911-0D030-B1iNCP42..TAIW200303-200510

DK.GRAY,TRIM1#

main58911-0D040-A0iNCP42..ATM..(15E,15S)..TH200212-200510

IVORY,TRIM0#

main58911-0D040-B0iNCP42..MTM..15E200510-200702

W/O(CONSOLE BOX DOOR),STONE,TRIM1#

main58911-0D040-B1iNCP42..RHD..(15G,15S)200212-200512

DK.GRAY,TRIM1#

main58911-0D090-A0iNCP42200710-201303

IVORY,TRIM0#

main58911-0D090-B0iNCP4#..PHL,VN200510-200709

STONE,TRIM1#

main58911-0D090-B1iNCP42..15J..TAIW200510-201309

DK.GRAY,TRIM1#

main58911-0D100-A0iNCP42..RHD..ATM..(15E,15S)200510-200708

IVORY,TRIM0#

main58911-0D100-B0iNCP42..ATM..15S200510-200702

STONE,TRIM1#

main58911-0D100-B1iNCP42..15G..MA;NCP42..MTM..15S200510-200708

DK.GRAY,TRIM1#

main58911-0D130-A0iNCP42..(15E,15G)..TAIW200510-200710

IVORY,TRIM0#

main58911-0D130-B0iNCP42..(15E,15G)..TAIW200510-200710

DK.GRAY,TRIM1#

58910DCLIP(FOR CONSOLE BOX)

main90467-08104-A4×2iAXP4#200210-200511

IVORY,TRIM0#

main90467-08104-B0×2iSCP42..GLI,GLS200608

STONE,TRIM1#

9015960431

main90159-60431

90167T0011

main90167-T0011

9018905054

main90189-05054

9356855014

main93568-55014

11 parts on this diagram · 2 diagrams in section
