Toyota VIOS/SOLUNA VIOS — CONSOLE BOX & BRACKET

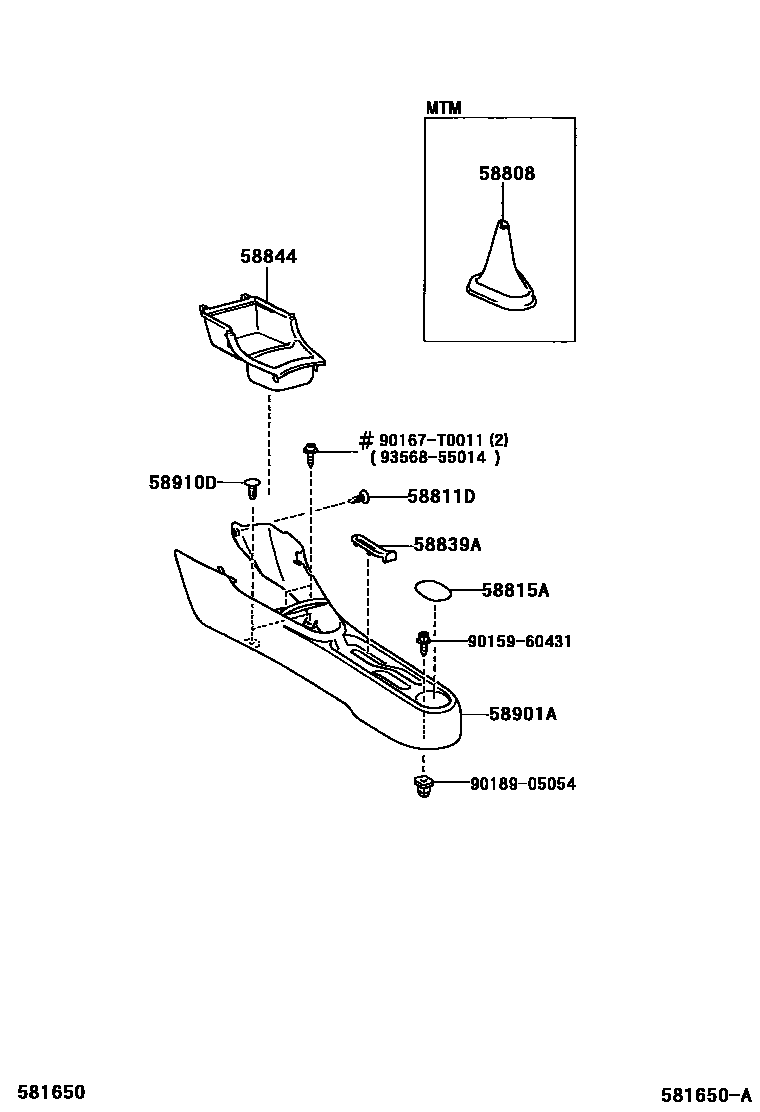

Parts diagram
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-0D010-C0i200212-200702
BLACK,TRIM1#
main58808-0D030-C0i200210-200608
BLACK,TRIM0#
main58808-0D030-C0i200511-200608
BLACK,TRIM0#,1#
main58808-0D080-C0i200305-200709
BLACK,TRIM1#
58811DCLIP(FOR CONSOLE BOX)
main90467-05020-A4i200210-201303
IVORY,TRIM0#
main90467-05020-A4i200303-200510
IVORY,TRIM04
main90467-05020-P1i200510-201309
DK.GRAY,TRIM1#
main90467-05020-P1i200212-200512
DK.GRAY,TRIM13
main90467-05020-P1i200510-200702
DK.GRAY,TRIM18
main90467-05020-P2i200212-200709
STONE,TRIM1#
main90467-05020-P2i200212-200512
STONE,TRIM13
main90467-05020-P2i200510-200702
STONE,TRIM17
main90467-05020-P2i200303-200510
STONE,TRIM04,13
58815ACARPET, CONSOLE BOX
main58815-0D010-A1i200210-200608
IVORY,TRIM0#
main58815-0D010-B0i200511-200608
DARK GRAY,TRIM1#
main58815-0D020-A1i200404-200510
IVORY,TRIM0#
main58815-0D020-C1i200404-200510
BLACK,TRIM1#
main58815-0D030-A0i200311-200510
IVORY,TRIM0#
main58815-0D030-C1i200510-200709
W/O(CONSOLE BOX DOOR),BLACK,TRIM1#
main58815-0D030-C1i200311-200603
BLACK,TRIM1#
main58815-0D060-A0i200710-201303
IVORY,TRIM0#
main58815-0D060-C0i200510-201309
BLACK,TRIM1#
main58815-0D070-A0i200510-200708
IVORY,TRIM0#
main58815-0D070-C0i200510-200708
BLACK,TRIM1#
main58815-0D090-A0i200510-200710
IVORY,TRIM0#
main58815-0D090-C0i200510-200710
BLACK,TRIM1#
58839ACOVER, CONSOLE BOX HOLE
main58917-0D020-A0i200210-200608
IVORY,TRIM0#
main58917-0D020-B0i200511-200608
STONE,TRIM1#
main58917-0D030-A0i200303-201303
IVORY,TRIM0#
main58917-0D030-B0i200305-200702
STONE,TRIM1#
main58917-0D030-B1i200303-201309
DK.GRAY,TRIM1#
main58917-0D040-A0i200404-200708
IVORY,TRIM0#
main58917-0D040-B0i200212-200709
STONE,TRIM1#
main58917-0D040-B0i200510-200702
STONE,TRIM17
main58917-0D040-B1i200510-200702
DK.GRAY,TRIM18
main58917-0D040-B1i200212-200708
DK.GRAY,TRIM1#
58844BEZEL, CONSOLE BOX
main58844-0D010i200210-200608
main58844-0D020i200303-200603
main58844-0D030i200212-200708
58901ABOX SUB-ASSY, CONSOLE, REAR
main58911-0D020-A0i200210-200608
IVORY,TRIM0#
main58911-0D020-B0i200511-200608
STONE,TRIM1#
main58911-0D030-A0i200303-200510
IVORY,TRIM0#
main58911-0D030-B0i200603-200709
W/O(CONSOLE BOX DOOR),STONE,TRIM1#
main58911-0D030-B0i200305-200603
STONE,TRIM1#
main58911-0D030-B1i200303-200510
DK.GRAY,TRIM1#
main58911-0D040-A0i200212-200510
IVORY,TRIM0#
main58911-0D040-B0i200510-200702
W/O(CONSOLE BOX DOOR),STONE,TRIM1#
main58911-0D040-B0i200212-200512
STONE,TRIM1#
main58911-0D040-B1i200212-200512
DK.GRAY,TRIM1#
main58911-0D090-A0i200710-201303
IVORY,TRIM0#
main58911-0D090-B0i200510-200709
STONE,TRIM1#
main58911-0D090-B1i200510-201309
DK.GRAY,TRIM1#
main58911-0D100-A0i200510-200708
IVORY,TRIM0#
main58911-0D100-B0i200510-200702
STONE,TRIM1#
main58911-0D100-B0i200510-200702
STONE,TRIM17
main58911-0D100-B1i200510-200708
DK.GRAY,TRIM1#
main58911-0D100-B1i200510-200702
DK.GRAY,TRIM18
main58911-0D130-A0i200510-200710
IVORY,TRIM0#
main58911-0D130-B0i200510-200710
DK.GRAY,TRIM1#
58910DCLIP(FOR CONSOLE BOX)
main90467-08104-A4i200210-200608
IVORY,TRIM0#
main90467-08104-B0i200212-200608
STONE,TRIM1#
main90467-08104-B0i200510-201309
STONE
main90467-08104-B0i200303-200510
STONE,TRIM0#,1#
9015960431
main90159-60431
90167T0011
main90167-T0011
9018905054
main90189-05054
9356855014
main93568-55014

11 parts on this diagram · 2 diagrams in section

CONSOLE BOX & BRACKET for Toyota VIOS/SOLUNA VIOS

This section contains 19 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota VIOS/SOLUNA VIOS. Key components include: HOLDER, REAR CONSOLE BOX, CUP, COVER SUB-ASSY, SHIFTING HOLE, CLIP(FOR CONSOLE BOX), CARPET, CONSOLE BOX, COVER, CONSOLE BOX HOLE.
