Toyota VIOS/SOLUNA VIOS — AIR BAG

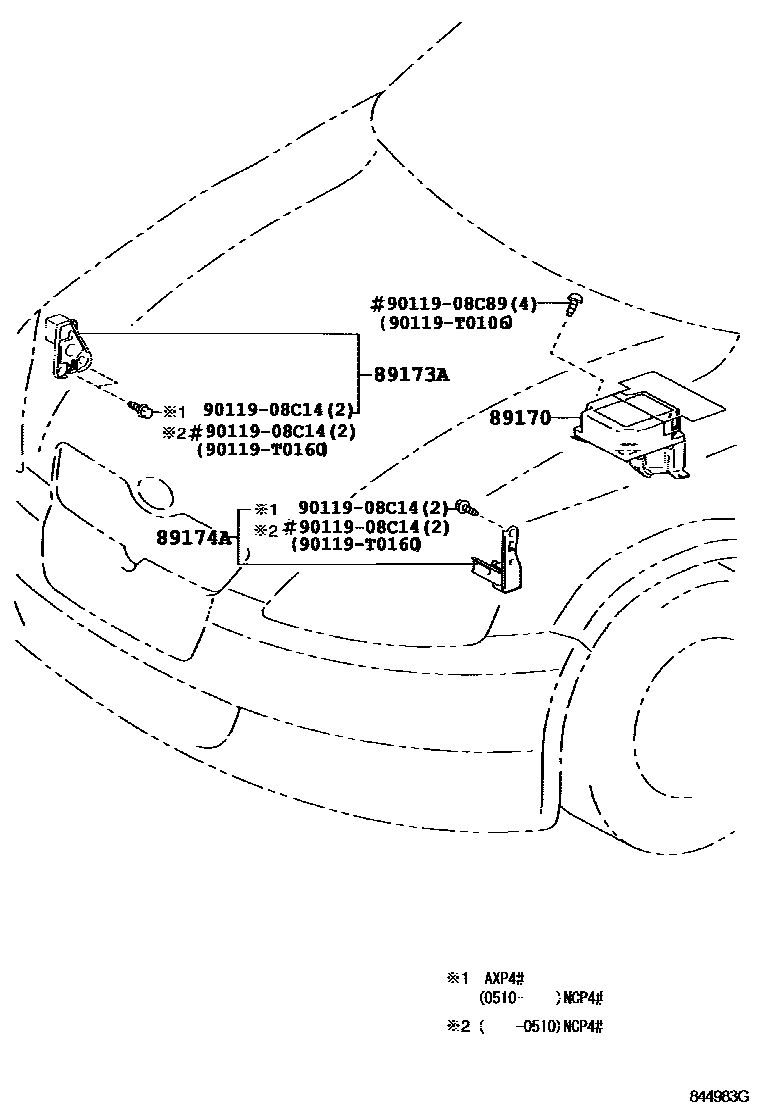

Parts diagram

89170SENSOR ASSY, AIRBAG

main89170-0D050i200212-200512

W(SRS AIR BAG,DRIVER SIDE)

main89170-0D060i200911

main89170-0D150i200512-200708

main89170-0D190i200608

main89170-52170i200410-200412

main89170-52180i200210-200410

W(SRS AIR BAG,DRIVER SIDE)

89173ASENSOR, AIRBAG, FRONT RH

main89173-59215i200210-200511

89174ASENSOR, AIRBAG, FRONT LH

main89174-59145i200210-200511

9011908C14

main90119-08C14

9011908C89

main90119-08C89

90119T0106

main90119-T0106

90119T0160

main90119-T0160

7 parts on this diagram · 1 diagram in section

AIR BAG for Toyota VIOS/SOLUNA VIOS

This section contains 7 genuine Toyota parts for the AIR BAG system of the Toyota VIOS/SOLUNA VIOS. Key components include: SENSOR ASSY, AIRBAG, SENSOR, AIRBAG, FRONT RH, SENSOR, AIRBAG, FRONT LH.
