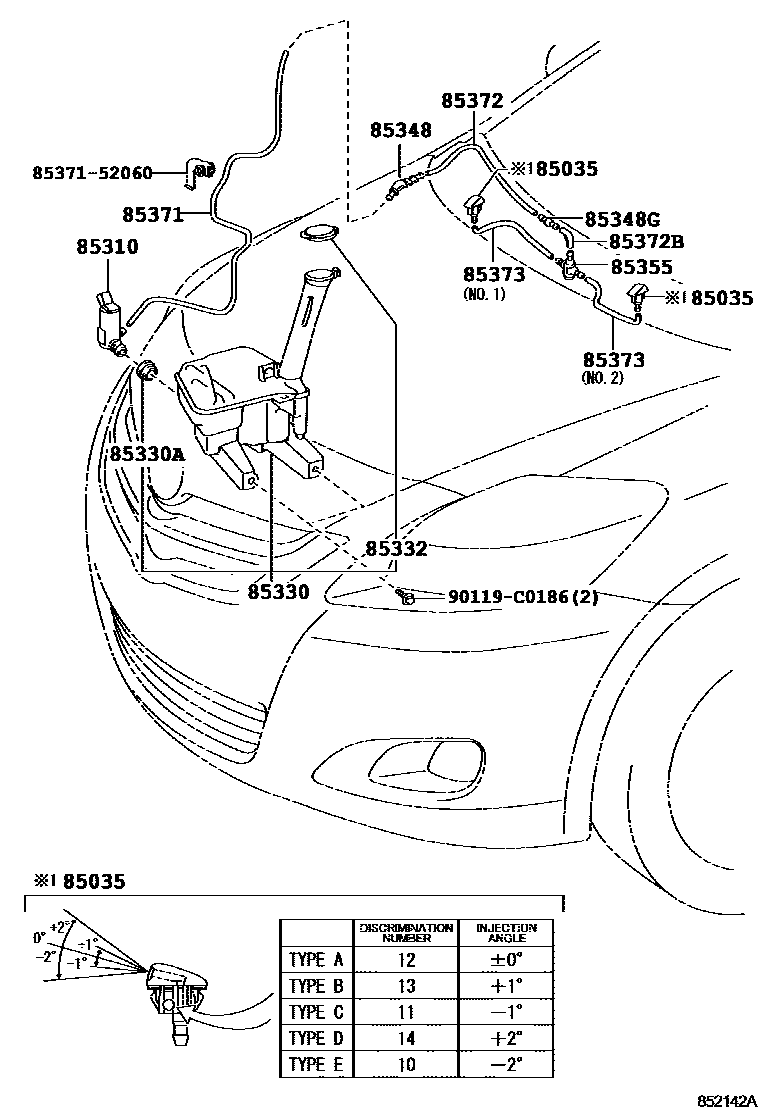

Toyota VIOS (CHINA) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-52250×2i200802-201008

TYPE A:REFER ILLUST.

main85381-52280×2i201008-201303

ANGLE +1,TYPE B:REFER ILLUST.

main85381-52290×2i201008

ANGLE -1,TYPE C:REFER ILLUST.

main85381-52300×2i201008-201303

ANGLE +2,TYPE D:REFER ILLUST.

main85381-52310×2i201008-201303

ANGLE -2,TYPE E:REFER ILLUST.

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0D010i201008-201303

85330JAR ASSY, WINDSHIELD WASHER

main85315-0D110i200802-201008

85330ABUSH, WINDSHIELD WASHER JAR

main90068-32006i200802-201008

85332CAP, WINDSHIELD WASHER JAR

main85316-02200i201008-201303

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-0D170i200802-201008

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-0D030i200802-201008

85355VALVE, WINDSHIELD WASHER HOSE

main85321-30080i200802-201008

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-45011i200802-201008

L=780

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-45014i200802-201008

L=550

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main85336-12230i201008

L=15

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-45016i201008

L=320,NO.1

main90068-45017i201008

L=410,NO.2

8537152060HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52060

90119C0186

main90119-C0186

14 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota VIOS (CHINA)

This section contains 14 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota VIOS (CHINA). Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
