Toyota VIOS (CHINA) — HEATING & AIR CONDITIONING - COOLER PIPING

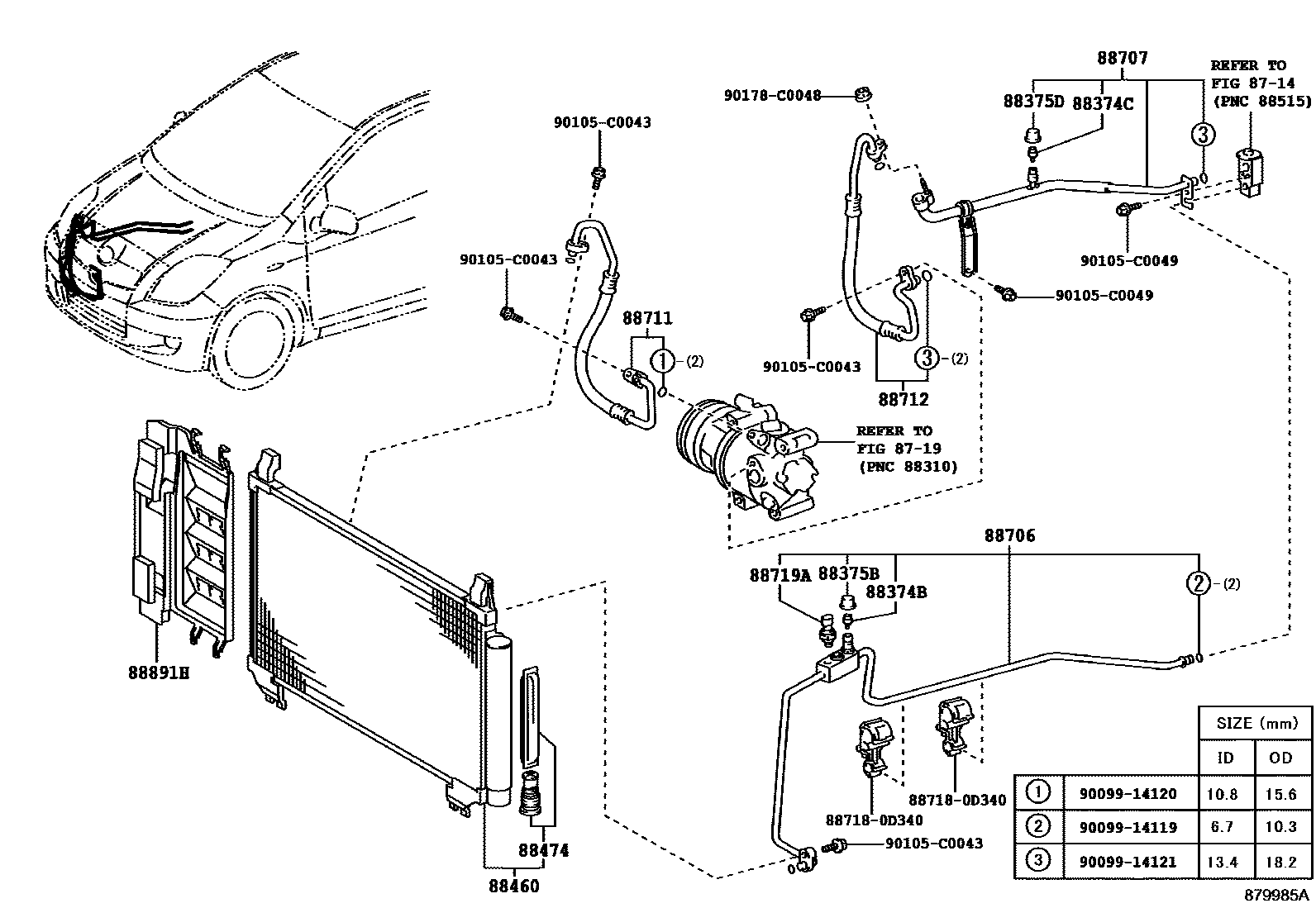

Parts diagram

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010i201008

88374CVALVE, SERVICE, NO.2

main88374-30010i200802-201008

88375BCAP, SERVICE VALVE, NO.1

main88375-30280i200802-201008

88375DCAP, SERVICE VALVE, NO.2

main88375-30290i200802-201008

88460CONDENSER ASSY, COOLER

main88460-0D110i200802-201008

main88460-0D120i201008-201303

88474DRYER, COOLER

main88474-17010i200802-201008

88706PIPE SUB-ASSY, LIQUID

main88706-0D300i200802-201008

main88706-0D310i201008

88707PIPE SUB-ASSY, SUCTION

main88707-0D140i201008

main88707-0D150i201008

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-0D210i201008

main88711-0D220i201008-201303

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-0D260i201008

main88712-0D270i200802-201008

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020i201008

88891HCOVER, COOLER, NO.1

main88891-0D120i201008

main88891-0D130i201008

887180D340PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0D340

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

90105C0043

main90105-C0043

90105C0049

main90105-C0049

90178C0048

main90178-C0048

21 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - COOLER PIPING for Toyota VIOS (CHINA)

This section contains 23 genuine Toyota parts for the HEATING & AIR CONDITIONING - COOLER PIPING system of the Toyota VIOS (CHINA). Key components include: HEATING & AIR CONDITIONING - COOLER UNIT, HEATING & AIR CONDITIONING - COMPRESSOR, VALVE, SERVICE, NO.1, VALVE, SERVICE, NO.2, CAP, SERVICE VALVE, NO.1.
