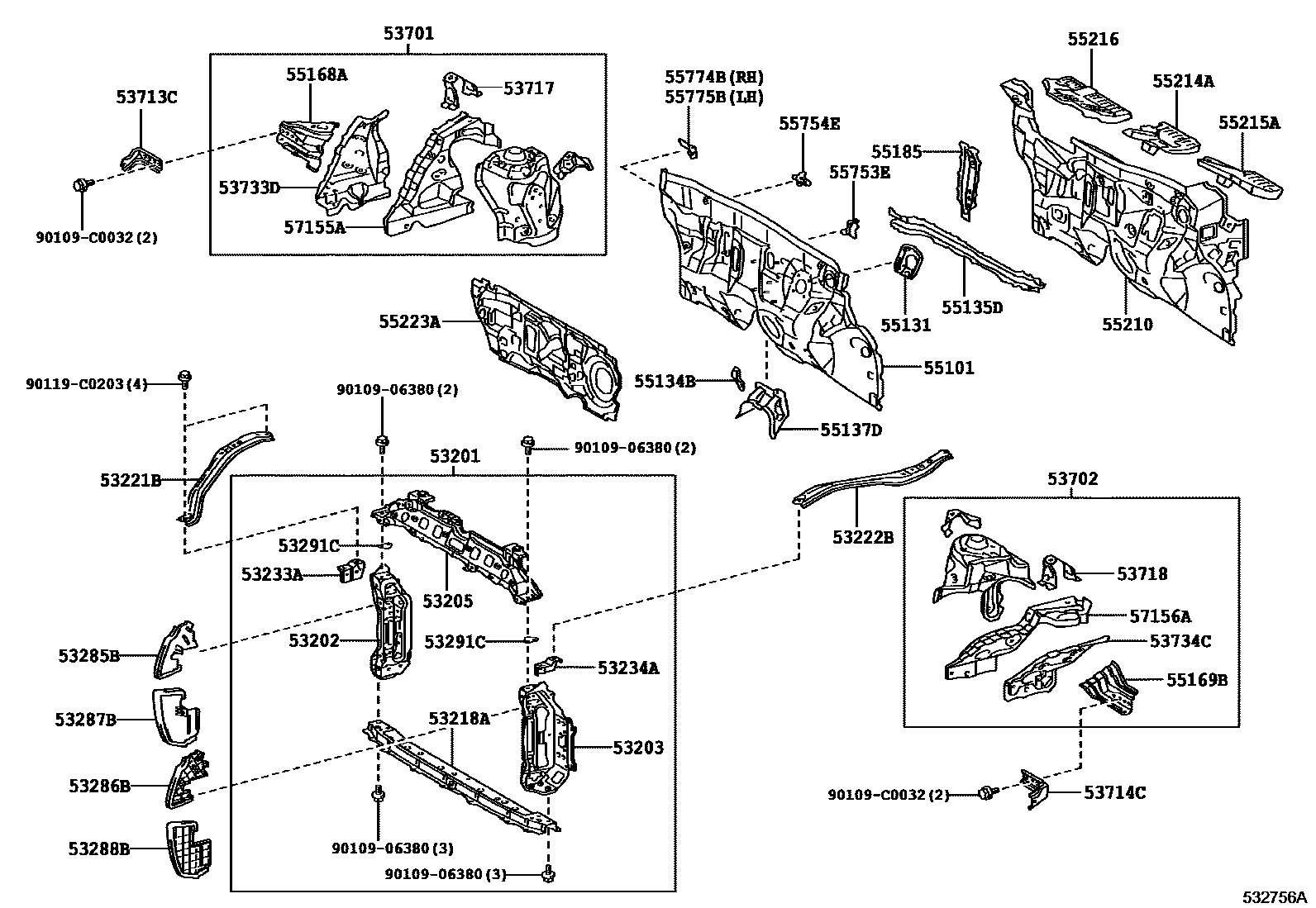

Toyota VIOS (CHINA) — FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53218ASUPPORT, RADIATOR, LOWER
53221BBRACE, RADIATOR SUPPORT APRON, RH
53222BBRACE, RADIATOR SUPPORT APRON, LH
53233ABRACKET, HEADLAMP, NO.1 RH
53234ABRACKET, HEADLAMP, NO.1 LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
53286BSEAL, RADIATOR SIDE AIR, NO.2
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53291CSEAL, RADIATOR SUPPORT TO FRAME
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53717PLATE, FENDER APRON, RH
53718PLATE, FENDER APRON, LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
55101PANEL SUB-ASSY, DASH
55131REINFORCEMENT, DASH PANEL
55134BSUPPORT, ACCEL CONTROL ROD
55137DREINFORCEMENT, FRONT PANEL MEMBER
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55185BRACE, DASH PANEL TO COWL
55210INSULATOR ASSY, DASH PANEL
sub55210-0D201
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
55216PAD, DASH PANEL INSULATOR, NO.4
55223AINSULATOR, DASH PANEL, OUTER
sub55223-0D141
55753EBRACKET, INSTRUMENT PANEL TO COWL, NO.1
55754EBRACKET, INSTRUMENT PANEL TO COWL, NO.2
55774BBRACKET, COWL TOP INNER TO PILLAR BRACE, RH
55775BBRACKET, COWL TOP INNER TO PILLAR BRACE, LH
57155AREINFORCEMENT, FRONT SIDE MEMBER, NO.3 RH
57156AREINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
9010906380
main90109-06380
90109C0032
main90109-C0032
90119C0203
main90119-C0203
44 parts on this diagram · 1 diagram in section
