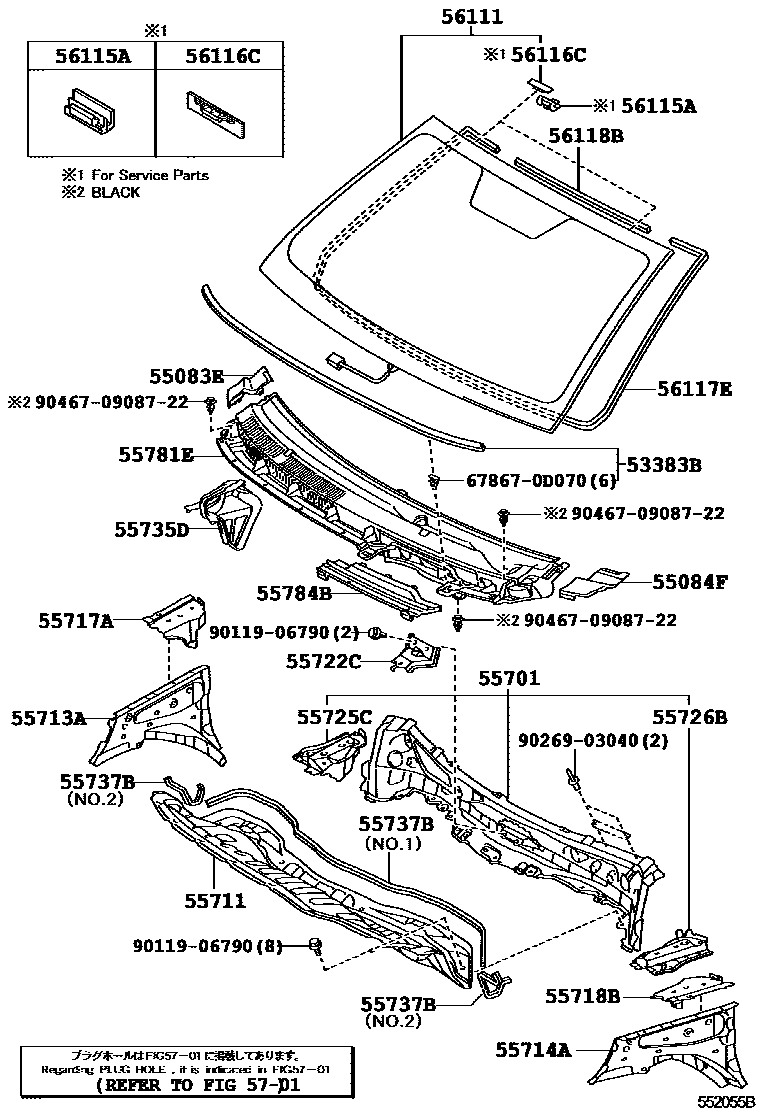

Toyota VIOS (CHINA) — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-0D090i201008-201303

55083EVENTILATOR SUB-ASSY, COWL SIDE, RH

main55083-0D040i200802-201008

55084FVENTILATOR SUB-ASSY, COWL SIDE, LH

main55084-0D010i200802-201008

55701PANEL SUB-ASSY, COWL

main55700-0D140i200802-201008

55711PANEL, COWL TOP, OUTER

main55701-0D140i200802-201008

55713APANEL, COWL TOP SIDE, RH

main55713-0D070i200802-201008

55714APANEL, COWL TOP SIDE, LH

main55714-0D070i200802-201008

55717APANEL, COWL TOP SIDE, INNER RH

main55717-0D070i200802-201008

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-0D070i200802-201008

55722CBRACE, COWL TOP TO COWL, INNER

main55722-0D070i200802-201008

55725CREINFORCEMENT, HOOD HINGE MOUNTING, RH

main55725-0D902i200802-201008

55726BREINFORCEMENT, HOOD HINGE MOUNTING, LH

main55726-0D902i201008

55735DSEAL, FRONT AIR SHUTTER, RH

main55735-0D020i201008-201303

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-0D020i201008

NO.1

main55737-0D050×2i201008-201303

NO.2

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0D140i200802-201008

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-0D040i200802-201008

56111GLASS, WINDSHIELD

main56101-0D140i200802-201008

*LAM,T=4.56,GREEN

main56101-0D141i201102-201303

*LAM,T=4.56,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2i200802-201008

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i200802-201008

56117EDAM, WINDOW GLASS ADHESIVE

main56117-52150i200802-201008

L=3141

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-52100i200802-201008

L=601

5701HOLE PLUG

→ Go to FIG 57-01

678670D070CLIP, DOOR WEATHERSTRIP

main67867-0D070

9011906790

main90119-06790

9026903040

main90269-03040

904670908722

main90467-0908722

26 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota VIOS (CHINA)

This section contains 26 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota VIOS (CHINA). Key components include: SEAL, HOOD TO COWL TOP, VENTILATOR SUB-ASSY, COWL SIDE, RH, VENTILATOR SUB-ASSY, COWL SIDE, LH, PANEL SUB-ASSY, COWL, PANEL, COWL TOP, OUTER.
