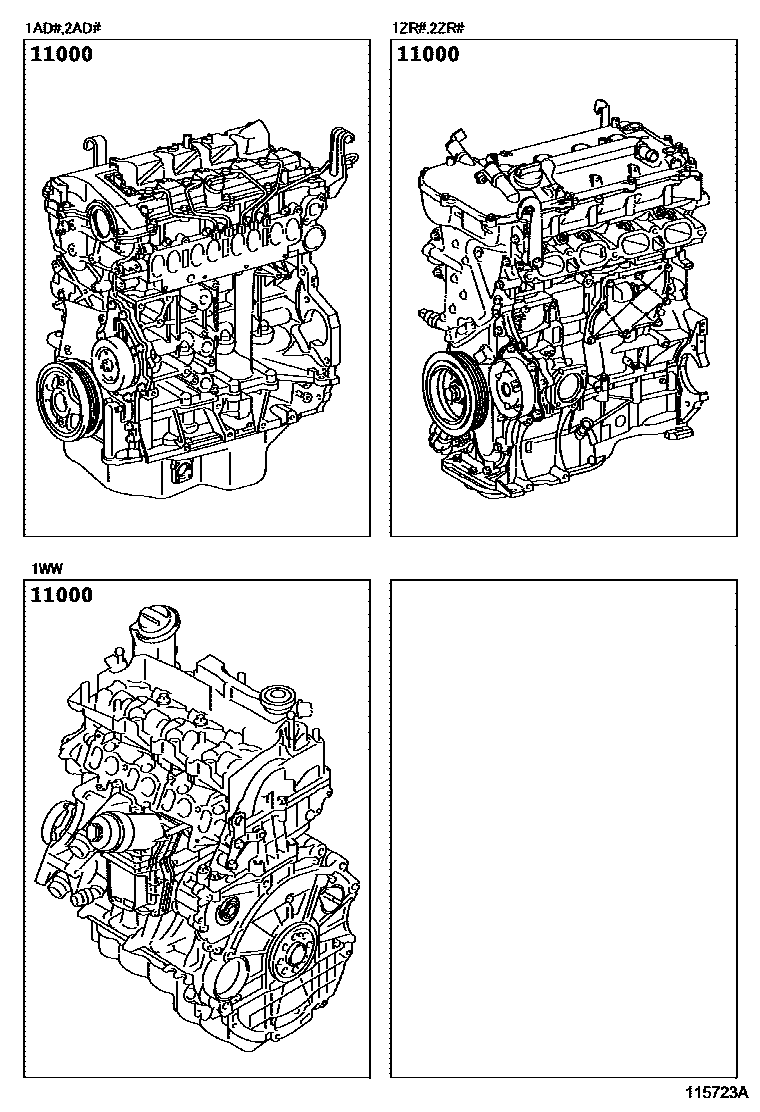

Toyota VERSO — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-0R130i2ADFHV..AUR21..6F200902-201007

main19000-0R131i2ADFHV..AUR21..6F201110-201211

main19000-0R140i2ADFHV..AUR21..6FC200905-201007

sub16278-0R010

sub25760-26200

sub25770-26172

main19000-0R141i2ADFHV..AUR21..6FC201110-201211

main19000-0T070i1ZRFAE..ZGR20200902-201007

sub19000-0T072

main19000-0T090i2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY201007-201211

main19000-WA010i1WW..WAR20201401-201412

sub90069-50008

main19000-WA011i1WW..WAR20201412-201503

main19000-WA020i1WW..WAR20201503

main19000-0R120supersedes 19000-0R110i1ADFTV..AUR20200902-201007

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)

sub16278-0R010

sub25760-26200

sub25770-26172

main19000-0R121supersedes 19000-0R200i1ADFTV..AUR20201110-201211

EXHAUST EMISSION CONTROL-EUROPE STEP4 HIGH-SULFUR DEISEL SPEC

main19000-0T480supersedes 19000-0T072i1ZRFAE..ZGR20201503-201505

ENGINE-1ZR-FAE(HIGH SULFUR)

main19000-0T481supersedes 19000-0T072i1ZRFAE..ZGR20201505

ENGINE-1ZR-FAE(HIGH SULFUR)

main19000-0T490supersedes 19000-0T471i2ZRFAE..ZGR21201503-201505

ENGINE-2ZR-FAE(HIGH SULFUR)

main19000-0T491supersedes 19000-0T471i2ZRFAE..ZGR21201505

ENGINE-2ZR-FAE(HIGH SULFUR)

1 parts on this diagram · 1 diagram in section
