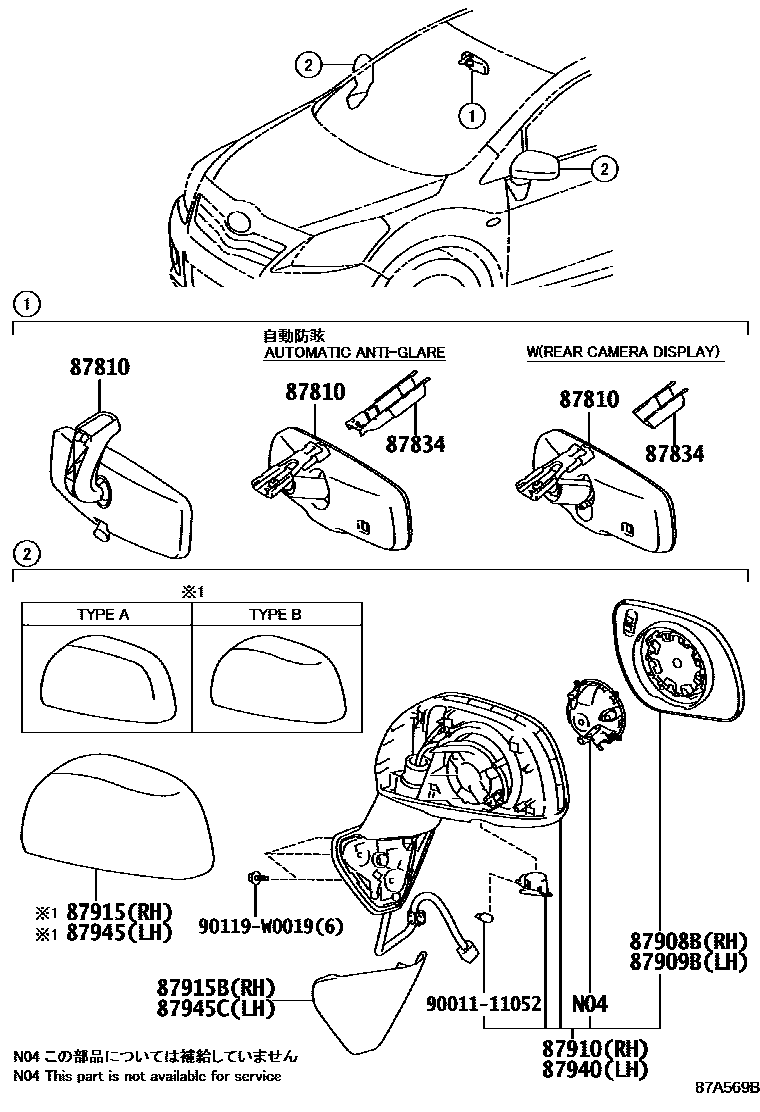

Toyota VERSO — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-0F010i201007-201211

main87810-0WQ40i201601

main87810-04030i200902-201007

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY

main87810-0D080i201211-201503

HIGH PACKAGE; LIGHT CONTROL SYSTEM-WITH(AUTO)

main87810-0F050i201007-201111

HIGH PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

main87810-0F080i201007-201111

HIGH PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY

main87810-0F110i201601

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE, W/PRECRASH SYSTEM

main87810-0F120i201611

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-0F030i201007-201111

HIGH PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY

main87818-0F040i201503-201601

LIGHT CONTROL SYSTEM-WITH(AUTO); W(SMART ENTRY)

87908BMIRROR SUB-ASSY, RH

main87908-0F050i200902-201007

main87931-0F120i201503

main87908-0F060i200910-200911

COLD AREA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER); SUB COLD AREA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)

87909BMIRROR SUB-ASSY, LH

main87909-0F050i200902-201007

main87961-0F110i201211-201503

main87909-0F060supersedes 87909-0F050i201007-201111

SUB COLD AREA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-0F130supersedes 87910-0F120i201211-201503

OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER)

main87910-0F150supersedes 87910-0F140i201503-201710

OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER)

main87910-0F060supersedes 87910-0F051i200902-200911

COLD AREA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER); SUB COLD AREA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)

main87910-0F061supersedes 87910-0F051i201007-201211

COLD AREA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER); SUB COLD AREA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)

main87910-0F080supersedes 87910-0F071i200902-200909

SUB COLD AREA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)

main87910-0F081supersedes 87910-0F071i200910-201007

SUB COLD AREA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)

87915COVER, OUTER MIRROR, RH

main87915-0F901i200902-200911

PAINT REQ.,TYPE A:REFER ILLUST.

main87915-0F904i200911-201007

PAINT REQ.,TYPE B:REFER ILLUST.

main87915-0F911i201211-201503

PAINT REQ.

87915BCOVER, OUTER MIRROR, LOWER RH

main87915-0F902i200902-201007

main87915-0F903i200902-201007

main87915-0F910i201211-201503

main87915-0F912i201503

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-0F120supersedes 87940-0F110i201211-201503

OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER)

main87940-0F140supersedes 87940-0F130i201503-201710

OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(HEATER)

main87940-0F060supersedes 87940-0F051i200902-200911

COLD AREA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER); SUB COLD AREA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)

main87940-0F061supersedes 87940-0F051i200911-201007

COLD AREA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER); SUB COLD AREA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)

main87940-0F080supersedes 87940-0F071i200902-200909

SUB COLD AREA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)

main87940-0F081supersedes 87940-0F071i201007-201111

SUB COLD AREA SPEC&OUTSIDE REAR VIEW MIRROR-WITH(HEATER)

87945COVER, OUTER MIRROR, LH

main87945-0F901i200902-200911

PAINT REQ.,TYPE A:REFER ILLUST.

main87945-0F904i201007-201211

PAINT REQ.

main87945-0F911i201503-201710

PAINT REQ.

87945CCOVER, OUTER MIRROR, LOWER LH

main87945-0F902i200902-201007

main87945-0F903i200902-201007

main87945-0F910i201211-201503

main87945-0F912i201211-201503

9001111052

main90011-11052

90119W0019

main90119-W0019

12 parts on this diagram · 2 diagrams in section

MIRROR for Toyota VERSO

This section contains 14 genuine Toyota parts for the MIRROR system of the Toyota VERSO. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, RH, MIRROR SUB-ASSY, LH.
