Toyota VERSO — METER

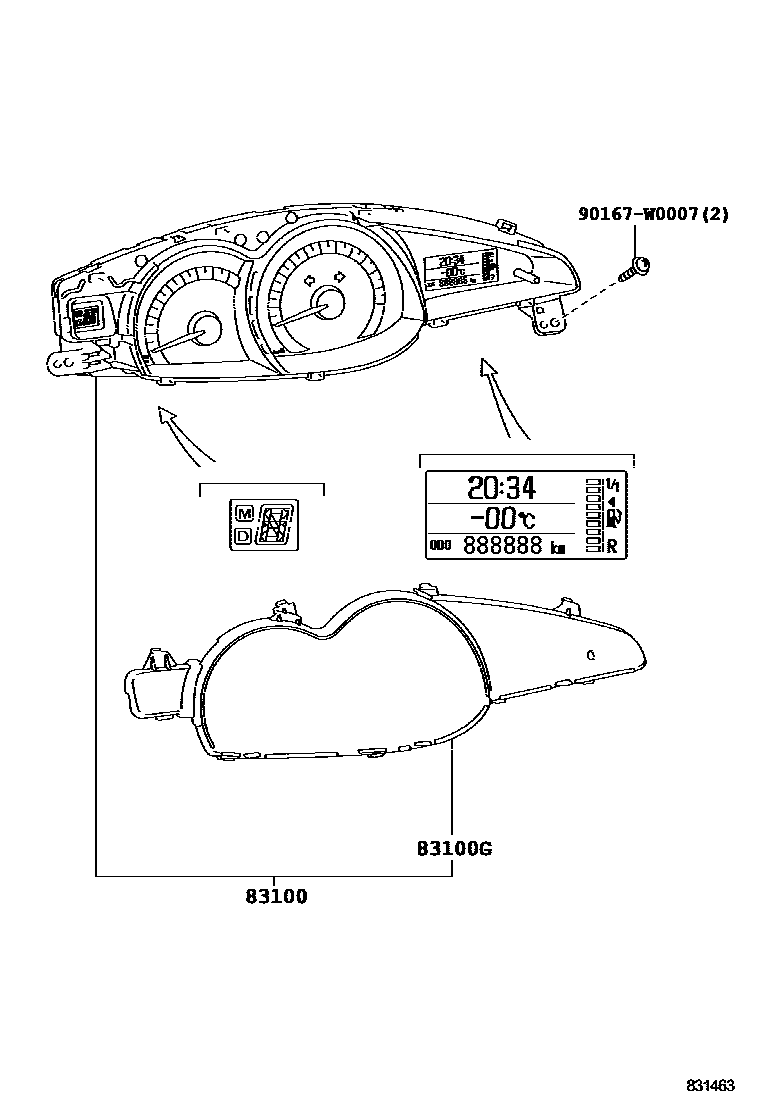

Parts diagram
83100METER ASSY, COMBINATION
main83800-0F110i200902-201007
main83800-0F360i201211-201401
main83800-0F370i201211-201401
MOROCCO SPEC; MOROCCO SPEC&N1 PACKAGE(2SEAT)
main83800-0F380i201211-201401
main83800-0F140supersedes 83800-0F130i200902-201007
SPEEDOMETER-KM/H
main83800-0F160supersedes 83800-0F150i200902-201007
SPEEDOMETER-KM/H
main83800-0F180supersedes 83800-0F170i201007-201211
SPEEDOMETER-KM/H
main83800-0F200supersedes 83800-0F190i200905-201007
SPEEDOMETER-KM/H
main83800-0F210supersedes 83800-0F100i201007-201211
N1 PACKAGE(2SEAT)
main83800-0F230supersedes 83800-0F070i200902-201007
DENMARK SPEC
main83800-0F240supersedes 83800-0F120i200905-201007
DENMARK SPEC
main83800-0F390supersedes 83800-0F400i201503-201601
N1 PACKAGE(2SEAT)
main83800-0F450supersedes 83800-0F410i201211-201401
SPEEDOMETER-KM/H,WHITE
main83800-0F460supersedes 83800-0F420i201211-201401
SPEEDOMETER-KM/H,WHITE
main83800-0F470supersedes 83800-0F430i201211-201401
SPEEDOMETER-KM/H,WHITE
main83800-0F480supersedes 83800-0F440i201211-201401
SPEEDOMETER-KM/H,WHITE
main83800-0F490supersedes 83800-0F350i201211-201401
N1 PACKAGE(2SEAT)
main83800-0F500i201211-201401
N1 PACKAGE(2SEAT)
main83800-0F510supersedes 83800-0F520i201401-201503
N1 PACKAGE(2SEAT)
main83800-0F520supersedes 83800-0FA71i201401-201503
N1 PACKAGE(2SEAT)
main83800-0F530supersedes 83800-0FB01i201401-201503
SPEEDOMETER-KM/H,WHITE
main83800-0F540supersedes 83800-0F530i201401-201503
SPEEDOMETER-KM/H,WHITE
main83800-0F600supersedes 83800-0F570i201401-201503
SPEEDOMETER-KM/H,WHITE
main83800-0F610supersedes 83800-0F580i201401-201503
SPEEDOMETER-KM/H,WHITE
main83800-0F620supersedes 83800-0F590i201401-201503
SPEEDOMETER-KM/H,WHITE
main83800-0F630supersedes 83800-0F290i201401-201503
N1 PACKAGE(2SEAT)
main83800-0F640i201401-201503
MOROCCO SPEC; MOROCCO SPEC&N1 PACKAGE(2SEAT)
main83800-0F660supersedes 83800-0F650i201401-201503
SPEEDOMETER-KM/H,WHITE
main83800-0F670i201401-201503
N1 PACKAGE(2SEAT)
main83800-0F680supersedes 83800-0F520i201401-201503
N1 PACKAGE(2SEAT)
main83800-0F690supersedes 83800-0F520i201401-201503
main83800-0F700supersedes 83800-0F530i201401-201503
main83800-0F710supersedes 83800-0F530i201401-201503
SPEEDOMETER-KM/H,WHITE
main83800-0F720supersedes 83800-0F290i201401-201503
MOROCCO SPEC; UKRAINE SPEC; WEST RUSSIA SPEC
main83800-0F730supersedes 83800-0F550i201401-201503
UKRAINE SPEC; WEST RUSSIA SPEC
main83800-0F740supersedes 83800-0F640i201401-201503
MOROCCO SPEC
main83800-0F750supersedes 83800-0F560i201401-201503
main83800-0F760supersedes 83800-0F570i201401-201406
SOUTH AFRICA SPEC
main83800-0F770supersedes 83800-0F580i201401-201503
main83800-0F780supersedes 83800-0F650i201401-201406
SOUTH AFRICA SPEC
main83800-0F790supersedes 83800-0F590i201401-201503
main83800-0F800supersedes 83800-0F570i201401-201503
SPEEDOMETER-KM/H,WHITE
main83800-0F810supersedes 83800-0F580i201401-201503
SPEEDOMETER-KM/H,WHITE
main83800-0F820supersedes 83800-0F650i201401-201406
SOUTH AFRICA SPEC&SPEEDOMETER-KM/H,WHITE
main83800-0F830supersedes 83800-0F590i201401-201503
SPEEDOMETER-KM/H,WHITE
main83800-0F840supersedes 83800-0F290i201401-201503
MOROCCO SPEC&N1 PACKAGE(2SEAT); N1 PACKAGE(2SEAT)
main83800-0F850i201401-201503
MOROCCO SPEC&N1 PACKAGE(2SEAT); N1 PACKAGE(2SEAT)
main83800-0F870supersedes 83800-0F860i201503-201601
SPEEDOMETER-KM/H,WHITE
main83800-0FA20supersedes 83800-0FA00i201503-201601
SPEEDOMETER-KM/H,WHITE
main83800-0FA30supersedes 83800-0FA10i201503-201601
SPEEDOMETER-KM/H,WHITE
main83800-0FA40supersedes 83800-0F880i201503-201601
N1 PACKAGE(2SEAT)
main83800-0FB10supersedes 83800-0FA80i201601-201608
SPEEDOMETER-KM/H,WHITE
main83800-0FB11supersedes 83800-0FA81i201609-201710
SPEEDOMETER-KM/H,WHITE
main83800-0FB20supersedes 83800-0FA90i201601-201608
SPEEDOMETER-KM/H,WHITE
main83800-0FB21supersedes 83800-0FA91i201609-201710
SPEEDOMETER-KM/H,WHITE
main83800-0FB30supersedes 83800-0FB00i201601-201608
SPEEDOMETER-KM/H,WHITE
main83800-0FB31supersedes 83800-0FB01i201609-201710
SPEEDOMETER-KM/H,WHITE
main83800-0FB40supersedes 83800-0FA50i201601-201608
N1 PACKAGE(2SEAT)
main83800-0FB41supersedes 83800-0FA51i201609-201710
N1 PACKAGE(2SEAT)
main83800-0FB50supersedes 83800-0FA70i201601-201608
N1 PACKAGE(2SEAT)
main83800-0FB51supersedes 83800-0FA71i201609-201710
N1 PACKAGE(2SEAT)
main83800-0FB60supersedes 83800-0F880i201503-201601
MOROCCO SPEC; UKRAINE SPEC; WEST RUSSIA SPEC
main83800-0FB70supersedes 83800-0F890i201503-201601
UKRAINE SPEC; WEST RUSSIA SPEC
main83800-0FB80supersedes 83800-0F400i201503-201601
main83800-0FB90supersedes 83800-0FA00i201503-201601
main83800-0FC00supersedes 83800-0FA10i201503-201601
main83800-0FC10supersedes 83800-0F860i201503-201601
main83800-0FC20supersedes 83800-0FA00i201503-201601
SPEEDOMETER-KM/H,WHITE
main83800-0FC30supersedes 83800-0FA10i201503-201601
SPEEDOMETER-KM/H,WHITE
main83800-0FC40supersedes 83800-0F860i201503-201601
SPEEDOMETER-KM/H,WHITE
main83800-0FC50supersedes 83800-0F880i201503-201601
MOROCCO SPEC&N1 PACKAGE(2SEAT); N1 PACKAGE(2SEAT)
main83800-0FC60supersedes 83800-0F400i201503-201601
N1 PACKAGE(2SEAT)
main83800-0FC70i201601-201608
N1 PACKAGE(2SEAT)&PRE-COLLISION SYSTEM-WITHOUT; N1 PACKAGE(2SEAT)&PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED); N1 PACKAGE(2SEAT)&PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB)
main83800-0FC71i201609-201710
N1 PACKAGE(2SEAT)&PRE-COLLISION SYSTEM-WITHOUT; N1 PACKAGE(2SEAT)&PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED); N1 PACKAGE(2SEAT)&PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB)
main83800-0FC80i201601-201608
PRE-COLLISION SYSTEM-WITHOUT; PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED); PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB)
main83800-0FC81i201609-201710
PRE-COLLISION SYSTEM-WITHOUT; PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED); PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB)
main83800-0FD80i201601-201608
PRE-COLLISION SYSTEM-WITHOUT; PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED); PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB)
main83800-0FD81i201609-201710
PRE-COLLISION SYSTEM-WITHOUT; PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED); PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB)
main83800-0FD90i201601-201608
PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED)&SPEEDOMETER-KM/H,WHITE; PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB)&SPEEDOMETER-KM/H,WHITE; PRE-COLLISION SYSTEM-WITHOUT&SPEEDOMETER-KM/H,WHITE
main83800-0FD91i201609-201710
PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED)&SPEEDOMETER-KM/H,WHITE; PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB)&SPEEDOMETER-KM/H,WHITE; PRE-COLLISION SYSTEM-WITHOUT&SPEEDOMETER-KM/H,WHITE
main83800-0FE00supersedes 83800-0FA50i201601-201608
PRE-COLLISION SYSTEM-WITHOUT; PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED); PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB); UKRAINE SPEC
main83800-0FE01supersedes 83800-0FA51i201609-201710
PRE-COLLISION SYSTEM-WITHOUT; PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED); PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB); UKRAINE SPEC
main83800-0FE10i201601-201608
PRE-COLLISION SYSTEM-WITHOUT; PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED); PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB); UKRAINE SPEC
main83800-0FE11i201609-201710
PRE-COLLISION SYSTEM-WITHOUT; PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED); PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB); UKRAINE SPEC
main83800-0FE20i201601-201608
PRE-COLLISION SYSTEM-WITHOUT; PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED); PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB)
main83800-0FE21i201609-201710
PRE-COLLISION SYSTEM-WITHOUT; PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED); PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB)
main83800-0FE30supersedes 83800-0FA90i201601-201608
PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED); PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB)
main83800-0FE31supersedes 83800-0FA91i201609-201710
PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED); PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB)
main83800-0FE40i201601-201608
PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED)&SPEEDOMETER-KM/H,WHITE; PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB)&SPEEDOMETER-KM/H,WHITE; PRE-COLLISION SYSTEM-WITHOUT&SPEEDOMETER-KM/H,WHITE
main83800-0FE41i201609-201710
PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED)&SPEEDOMETER-KM/H,WHITE; PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB)&SPEEDOMETER-KM/H,WHITE; PRE-COLLISION SYSTEM-WITHOUT&SPEEDOMETER-KM/H,WHITE
main83800-0FE50supersedes 83800-0FA90i201601-201608
PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED)&SPEEDOMETER-KM/H,WHITE; PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB)&SPEEDOMETER-KM/H,WHITE
main83800-0FE51supersedes 83800-0FA91i201609-201710
PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED)&SPEEDOMETER-KM/H,WHITE; PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB)&SPEEDOMETER-KM/H,WHITE
main83800-0FE60i201601-201608
N1 PACKAGE(2SEAT)&PRE-COLLISION SYSTEM-WITHOUT; N1 PACKAGE(2SEAT)&PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED); N1 PACKAGE(2SEAT)&PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB)
main83800-0FE61i201609-201710
N1 PACKAGE(2SEAT)&PRE-COLLISION SYSTEM-WITHOUT; N1 PACKAGE(2SEAT)&PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-DISCHARGE & *DRL(LED); N1 PACKAGE(2SEAT)&PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN & *DRL(BULB)
83100GGLASS, COMBINATION METER
main83852-0F100i200902-201007
main83852-0F130i201007-201111
90167W0007
main90167-W0007

3 parts on this diagram · 2 diagrams in section

METER for Toyota VERSO

This section contains 3 genuine Toyota parts for the METER system of the Toyota VERSO. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
