Toyota VERSO — ENGINE OIL PUMP

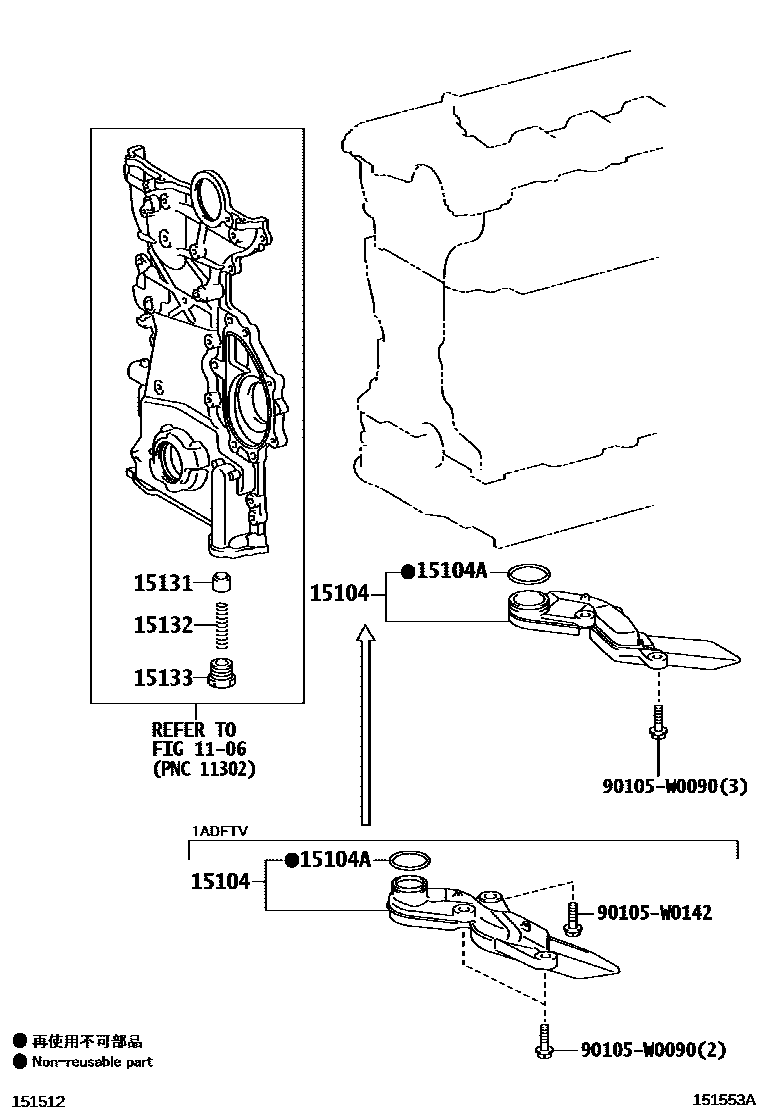

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15104STRAINER SUB-ASSY, OIL

main15104-26010i200902-201007

main15104-26030i201211

main15104-WA010i201503

15104ARING, O(FOR OIL STRAINER)

main90069-38027i201401-201503

main90301-27013i201007-201211

15131VALVE, OIL PUMP RELIEF

main15131-0A040i201007-201211

15132SPRING, OIL PUMP RELIEF VALVE

main15132-26030i200902-201007

15133PLUG, OIL PUMP RELIEF VALVE

main15133-33040i201211

ENGINE-1AD-FTV(DPF)

90105W0090

main90105-W0090

90105W0142

main90105-W0142

8 parts on this diagram · 5 diagrams in section

ENGINE OIL PUMP for Toyota VERSO

This section contains 20 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota VERSO. Key components include: TIMING GEAR COVER & REAR END PLATE, CHAIN SUB-ASSY, OIL PUMP DRIVE, PUMP ASSY, OIL, STRAINER SUB-ASSY, OIL, RING, O(FOR OIL STRAINER).
