Toyota VERSO — CONSOLE BOX & BRACKET

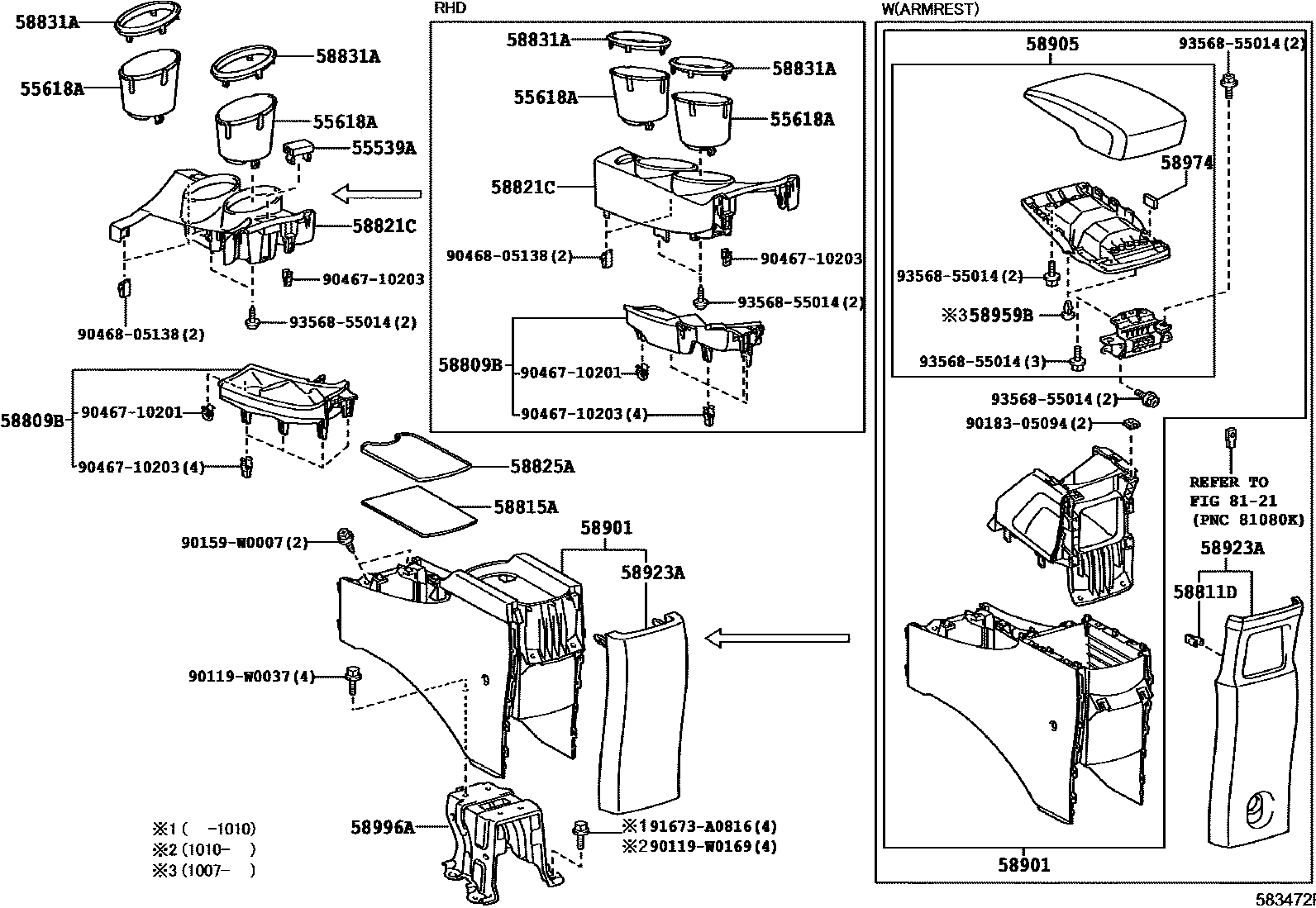

Parts diagram
55539ACOVER, SPARE SWITCH HOLE
main55539-02100-B0supersedes 55539-02100-B0i201007-201211
DK.GRAY,TRIM1#
55618AHOLDER, CONSOLE BOX CUP
main55618-0F010×2i201503-201601
main55618-0F010-B0×2i201601-201710
DK.GRAY,TRIM1#
main55618-0F030×2i201007-201211
main55618-0F030-B0×2i201601-201710
DK.GRAY,TRIM1#
58809BCOVER SUB-ASSY, PARKING BRAKE HOLE
main58809-0F010-B0i200902-201007
DK.GRAY,TRIM1#
main58809-0F010-C0i201601-201710
BLACK,TRIM1#
main58809-0F020-B0i201007-201111
DK.GRAY,TRIM1#
main58809-0F020-C0i201601-201710
BLACK,TRIM1#
58811DCLIP(FOR CONSOLE BOX)
main90467-10203×2i200902-201007
58815ACARPET, CONSOLE BOX
main58815-0F020i200902-201007
58821CPANEL, CONSOLE, UPPER
main58821-0F020-B0i200902-201007
DK.GRAY,TRIM1#
main58821-0F030-B0i201007-201211
DK.GRAY,TRIM1#
main58821-0F040-B0i201503-201710
DK.GRAY,TRIM1#
main58821-0F050-B0i201503-201710
DK.GRAY,TRIM1#
58825APOCKET, CONSOLE BOX
main58825-0F010i201007-201211
main58825-0F010-B0i201503-201710
DK.GRAY,TRIM1#
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
main58831-0F010×2i200902-201004
main58831-0F030×2i201007-201111
main58831-0F050×2i201211-201503
main58831-0F060×2i201601
58901PANEL SUB-ASSY, BOX
main58901-0F020-B0i200902-201004
DK.GRAY,TRIM1#
main58901-0F030-B0i200902-201007
DK.GRAY,TRIM1#
main58901-0F040-B0i201211-201503
DK.GRAY,TRIM1#
main58901-0F100-B0i201004-201007
DK.GRAY,TRIM1#
main58901-0F050-B0supersedes 58901-0F040-B0i201503-201601
DOOR TRIM-LEATHER,WITH(PLATE)&SEAT COVER MATERIAL-FABRIC C + LEATHER BOLSTER,DK.GRAY,TRIM1#
main58901-0F060-B0supersedes 58901-0F040-B0i201401-201503
DOOR TRIM-LEATHER,WITH(SUN SHADE)&SEAT COVER MATERIAL-FABRIC D + LEATHER2 BOLSTER,DK.GRAY,TRIM1#
main58901-0F120-B1supersedes 58901-0F110-B1i201601-201710
DOOR TRIM-LEATHER,WITH(PLATE)&SEAT COVER MATERIAL-FABRIC C + LEATHER BOLSTER,DK.GRAY,TRIM1#
main58901-0F130-B1supersedes 58901-0F110-B1i201601-201710
DOOR TRIM-LEATHER,WITH(PLATE)&SEAT COVER MATERIAL-FABRIC D + LEATHER2 BOLSTER,DK.GRAY,TRIM1#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-0F010i200902-201004
main58905-0F020i201211-201503
main58905-0F040i201007-201211
main58905-0F050supersedes 58905-0F020i201503-201601
DOOR TRIM-LEATHER,WITH(PLATE)&SEAT COVER MATERIAL-FABRIC C + LEATHER BOLSTER
main58905-0F060supersedes 58905-0F020i201401-201503
DOOR TRIM-LEATHER,WITH(SUN SHADE)&SEAT COVER MATERIAL-FABRIC D + LEATHER2 BOLSTER
main58905-0F080-B1supersedes 58905-0F070-B1i201601-201710
DOOR TRIM-LEATHER,WITH(PLATE)&SEAT COVER MATERIAL-FABRIC C + LEATHER BOLSTER,DK.GRAY,TRIM1#
main58905-0F090-B1supersedes 58905-0F070-B1i201601-201710
DOOR TRIM-LEATHER,WITH(PLATE)&SEAT COVER MATERIAL-FABRIC D + LEATHER2 BOLSTER,DK.GRAY,TRIM1#
58923APANEL, CONSOLE REAR END
main58923-0F020-B0i201211-201503
DK.GRAY,TRIM1#
main58923-0F030-B0i201503-201710
DK.GRAY,TRIM1#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main58959-60060×2i201211-201503
58974PLATE, CONSOLE COMPARTMENT DOOR LOCK
main58974-64010×2i200902-201007
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-0F020i201503
8121
90119W0037
main90119-W0037
90119W0169
main90119-W0169
90159W0007
main90159-W0007
9018305094
main90183-05094
9046710201
main90467-10201
9046710203
main90467-10203
9046805138
main90468-05138
91673A0816
main91673-A0816
9356855014
main93568-55014

24 parts on this diagram · 2 diagrams in section
