Toyota VERSO-S — PARTIAL ENGINE ASSEMBLY

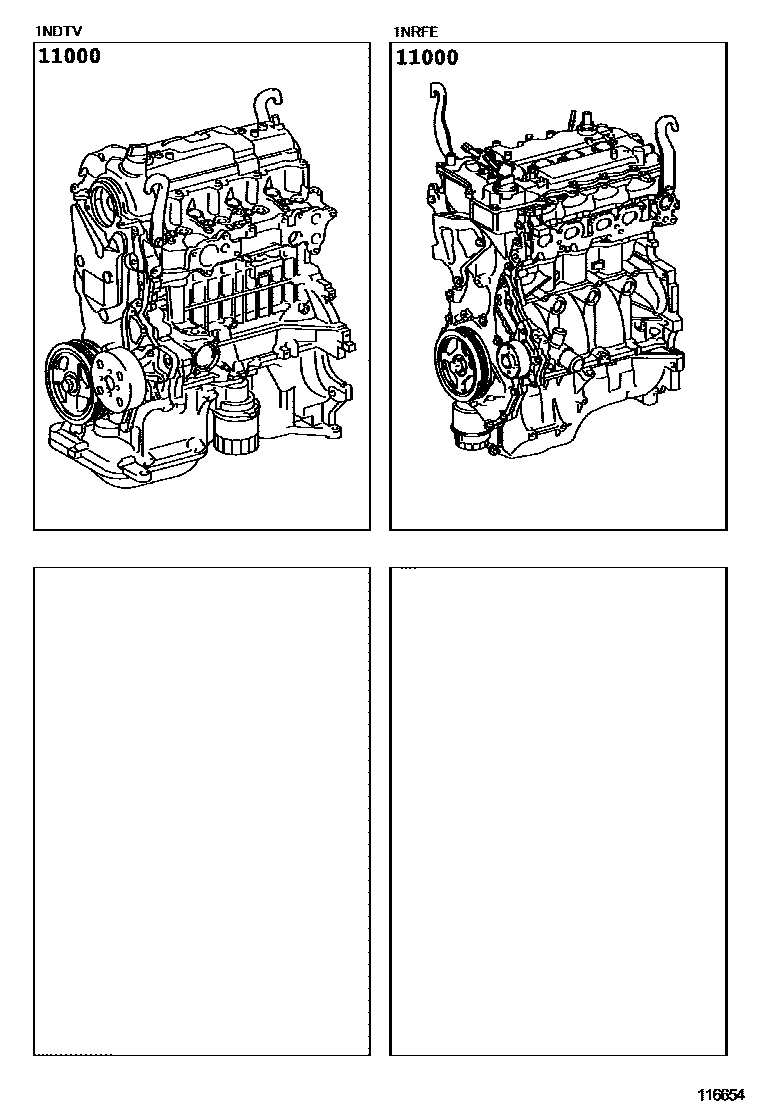

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-33360i201011-201112
sub16262-33011
main19000-33361i201112-201405
main19000-33362i201408-201504
main19000-47180i201011-201301
main19000-47181i201301-201310
main19000-47190i201011-201301
main19000-47191i201301-201310
main19000-47310i201405-201504
main19000-47340i201405-201504
main19000-47170i201011-201301
WITH(STOP & START SYSTEM)
main19000-47171i201301-201310
WITH(STOP & START SYSTEM)
main19000-47200i201011-201301
WITH(STOP & START SYSTEM)
main19000-47201i201301-201310
WITH(STOP & START SYSTEM)
main19000-47320i201310-201405
WITH(STOP & START SYSTEM)
main19000-47330i201310-201405
WITH(STOP & START SYSTEM)

1 parts on this diagram · 1 diagram in section
