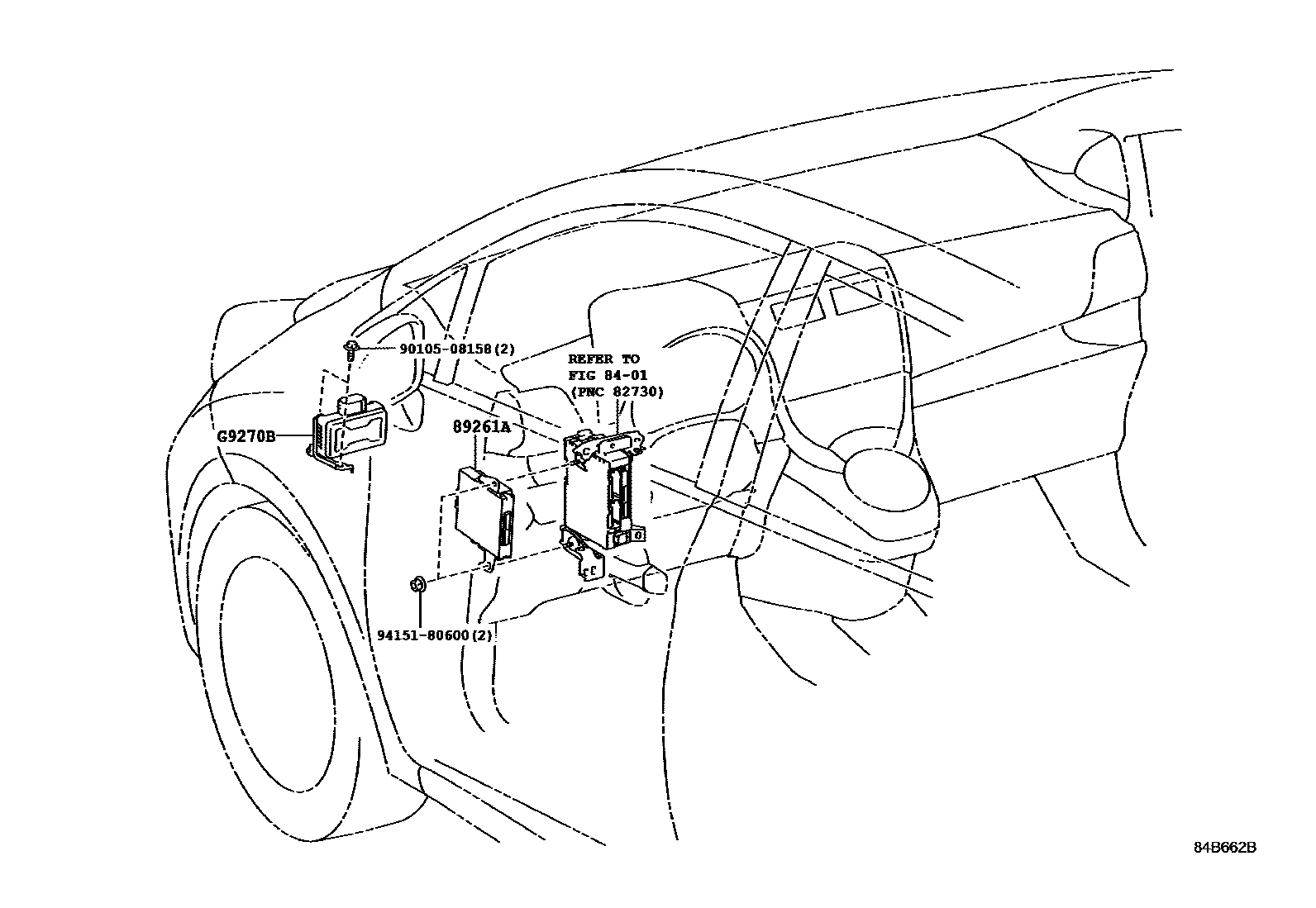

Toyota VERSO-S — ECO-RUN SYSTEM

8401

89261ACOMPUTER, ENGINE STOP AND START

main89690-52070iNSP120..LHD..6F201011-201109

WITH(STOP & START SYSTEM)

main89690-52071iNSP120..LHD..6F201110-201405

WITH(STOP & START SYSTEM)

main89690-52080iNSP120..LHD..CVT201011-201107

WITH(STOP & START SYSTEM)

sub89690-52083

main89690-52081iNSP120..LHD..CVT201107-201109

WITH(STOP & START SYSTEM)

main89690-52082iNSP120..LHD..CVT201110-201405

WITH(STOP & START SYSTEM)

sub89690-52083

G9270BCONVERTER ASSY, ECO RUN VEHICLE

mainG92C052030iNSP120..LHD201011-201310

WITH(STOP & START SYSTEM)

mainG92C052031iNSP120..LHD201311-201405

WITH(STOP & START SYSTEM)

subG92C0-52050

sub90159-50385

subF1334-52020

9010508158

main90105-08158

9415180600

main94151-80600

5 parts on this diagram · 1 diagram in section
