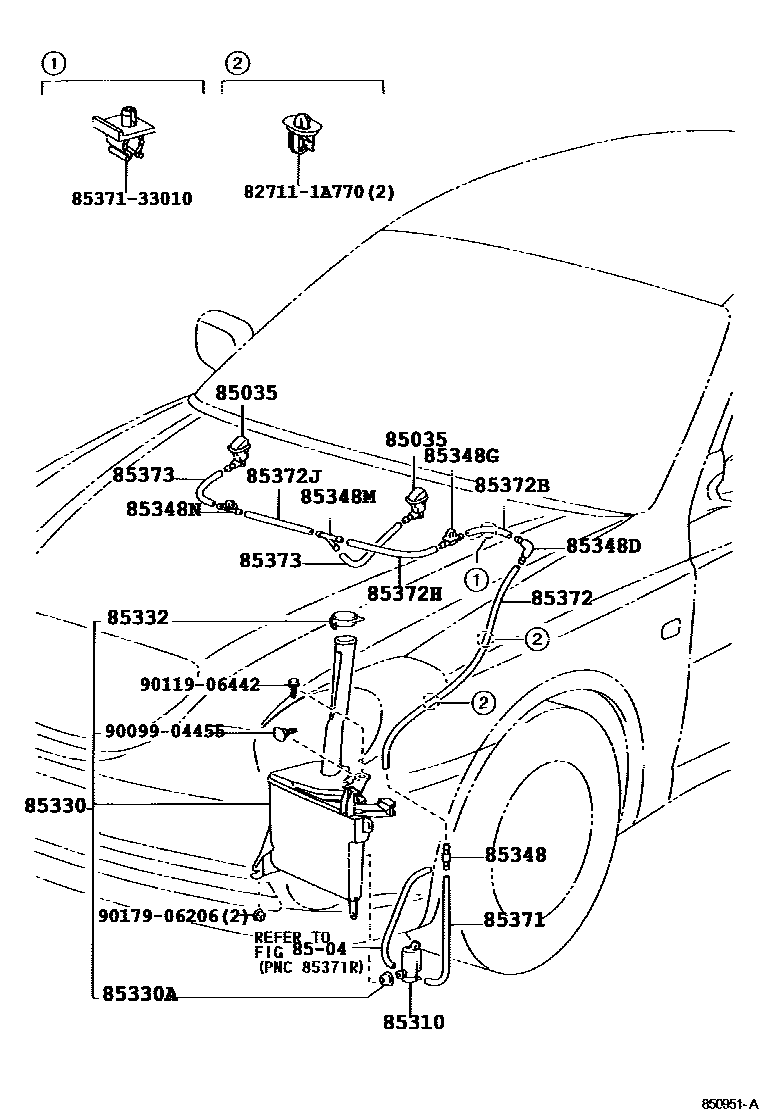

Toyota VEROSSA — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
WHITE PEARL CS.,062
WHITE PEARL CS.,065
SILVER ME.,1C0
BLACK,202
BLACK CHERRY MC.,3P9
SUPER RED 5,3P0
LT. ROSE M.M.,3Q1
DK.BLUE MC.,8N8
LT.BLUE M.M,8P7
8504REAR WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A770
8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-33010
9009904455
main90099-04455
9011906442
main90119-06442
9017906206
main90179-06206
22 parts on this diagram · 1 diagram in section
WINDSHIELD WASHER for Toyota VEROSSA
This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota VEROSSA. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
