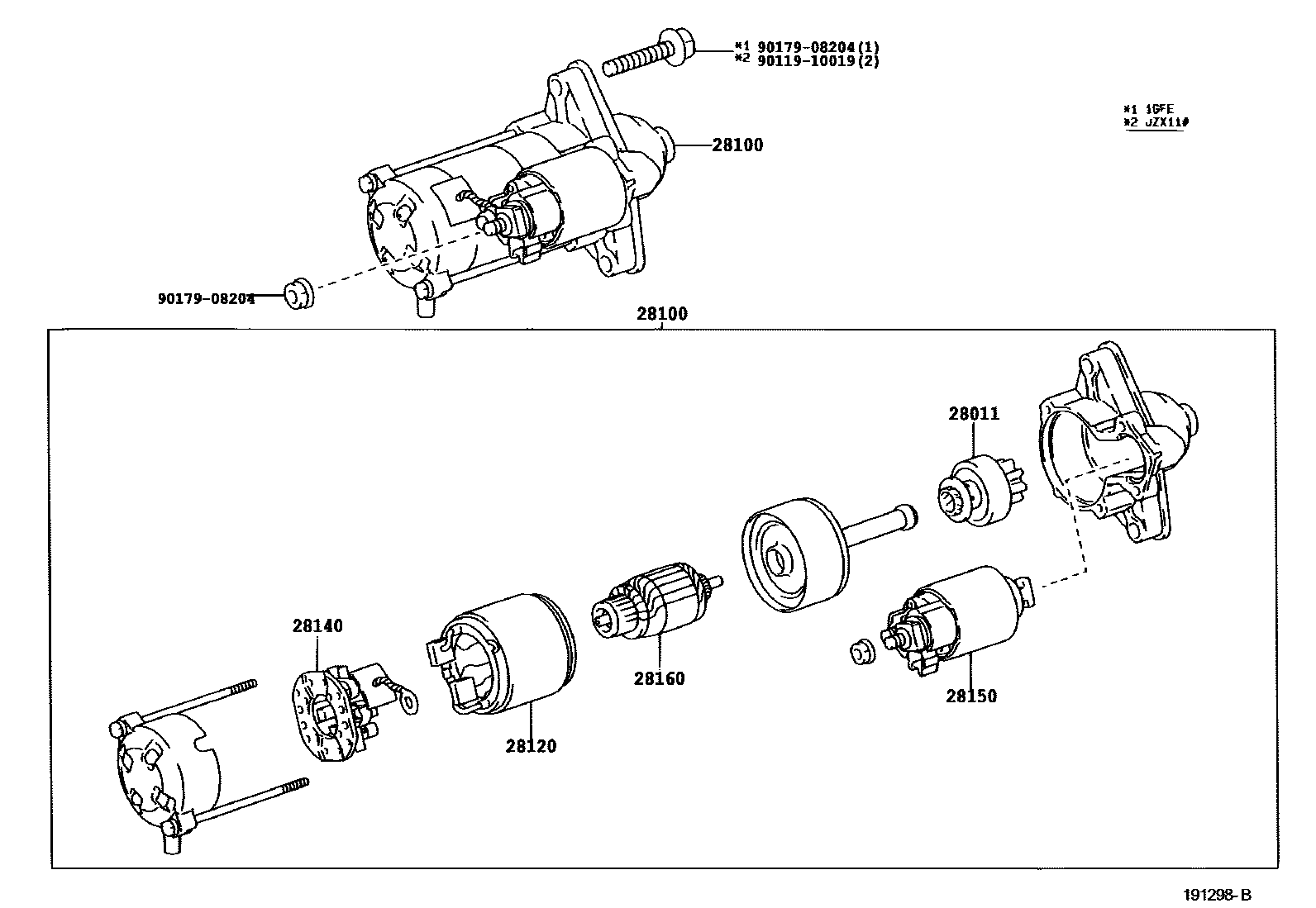

Toyota VEROSSA — STARTER

0001 112V 0.8,1.0KW 0002 112V 1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-46240i1JZ#..JZX110200106-200404

12V 0.8KW

main28011-70020i1GFE..GX11#200106-200404

12V 0.8KW,1.0KW

main28011-76070i1JZ#..JZX110200106-200404

12V 1.4KW

28100STARTER ASSY

main28100-46140i1JZ#..JZX110200106-200404

main28100-46250i1JZ#..JZX110200106-200404

sub28100-46240

main28100-70030i1GFE..GX11#200106-200404

main28100-70050i1GFE..GX11#200106-200404

28120YOKE ASSY, STARTER

main28120-66040i1JZ#..JZX110200106-200404

12V 1.4KW

main28120-70020i1GFE,1JZ#..GX11#,JZX110200106-200404

12V 0.8KW

main28120-70050i1GFE..GX11#200106-200404

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-70020i1GFE..GX11#200106-200404

12V 0.8KW,1.0KW

main28140-76070i1JZ#..JZX110200106-200404

12V 1.4KW

28150SWITCH ASSY, MAGNET STARTER

main28150-46150i1JZ#..JZX110200106-200404

12V 1.4KW

main28150-70030i1GFE..GX11#200106-200404

12V 0.8KW,1.0KW

sub28150-22100

28160ARMATURE ASSY, STARTER

main28160-70021i1GFE,1JZ#..GX11#,JZX110200106-200404

12V 0.8KW

main28160-70050i1GFE..GX11#200106-200404

12V 1.0KW

main28160-74070i1JZ#..JZX110200106-200404

12V 1.4KW

9011910019

main90119-10019

9017908204

main90179-08204

8 parts on this diagram · 2 diagrams in section
