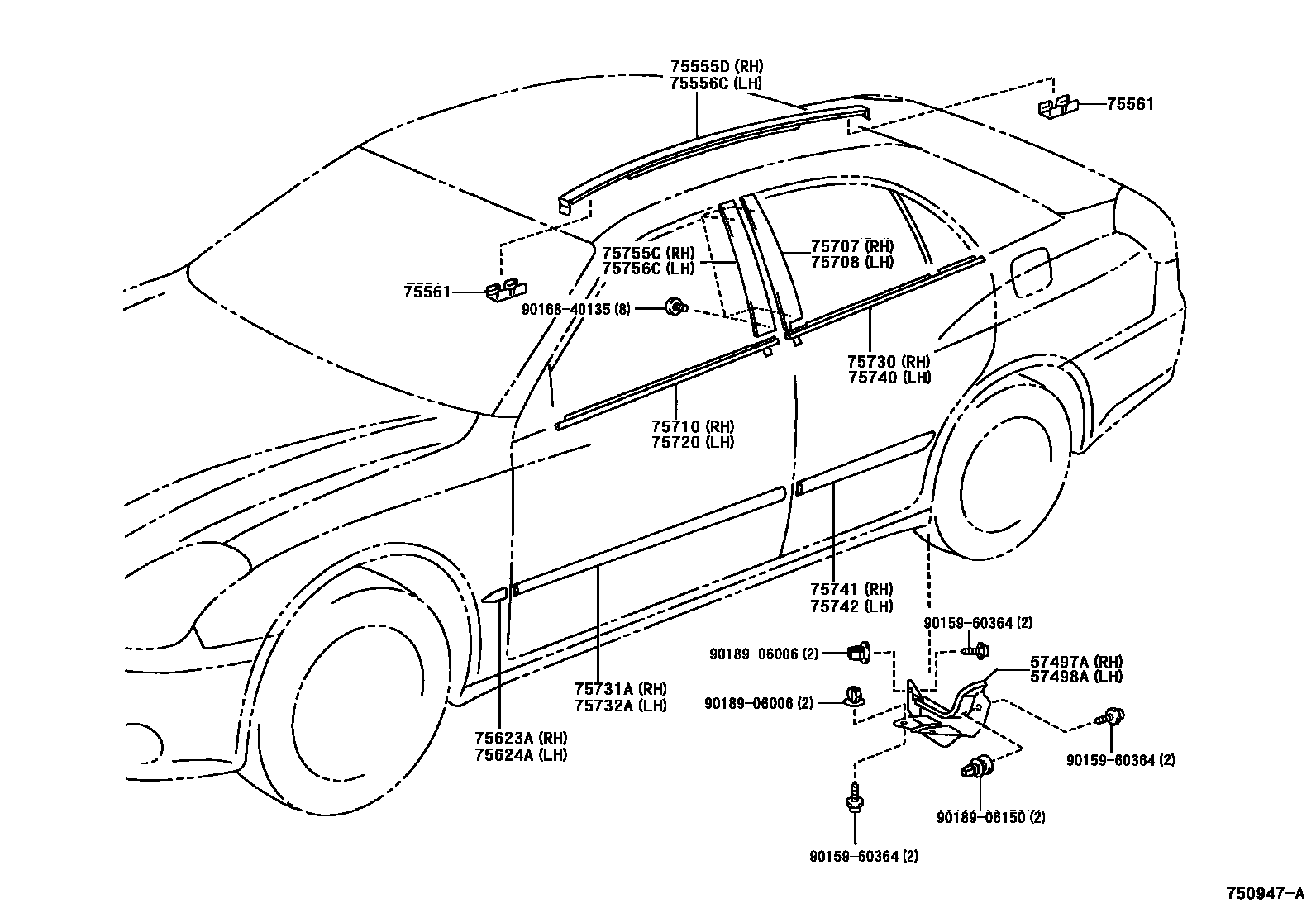

Toyota VEROSSA — SIDE MOULDING
57497ASHIELD, REAR FLOOR HOUSING
57498ASHIELD, REAR FLOOR HOUSING, NO.2
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
DARK GRAY ME.,062 ,065 ,1C0 ,3Q1 ,8P7; DARK GRAY ME.,062 ,1C0 ,3Q1 ,8P7
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
WHITE PEARL CS.,065
SILVER ME.,1C0
BLACK CHERRY MC.,3P9
LT.ROSE M.M.,3Q1
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
WHITE PEARL CS.,065
SILVER ME.,1C0
BLACK CHERRY MC.,3P9
LT.ROSE M.M.,3Q1
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,065
SILVER ME.,1C0
BLACK CHERRY MC.,3P9
LT.ROSE M.M.,3Q1
75732AMOULDING, FRONT DOOR, OUTSIDE LH
WHITE PEARL CS.,065
SILVER ME.,1C0
BLACK CHERRY MC.,3P9
LT.ROSE M.M.,3Q1
75740MOULDING ASSY, REAR DOOR BELT, LH
75741MOULDING, REAR DOOR, OUTSIDE RH
WHITE PEARL CS.,065
SILVER ME.,1C0
BLACK CHERRY MC.,3P9
LT.ROSE M.M.,3Q1
75742MOULDING, REAR DOOR, OUTSIDE LH
WHITE PEARL CS.,065
SILVER ME.,1C0
BLACK CHERRY MC.,3P9
LT.ROSE M.M.,3Q1
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
9015960364
main90159-60364
9016840135
main90168-40135
9018906006
main90189-06006
9018906150
main90189-06150
23 parts on this diagram · 1 diagram in section
SIDE MOULDING for Toyota VEROSSA
This section contains 23 genuine Toyota parts for the SIDE MOULDING system of the Toyota VEROSSA. Key components include: SHIELD, REAR FLOOR HOUSING, SHIELD, REAR FLOOR HOUSING, NO.2, MOULDING, ROOF DRIP SIDE FINISH, CENTER RH, MOULDING, ROOF DRIP SIDE FINISH, CENTER LH, CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1.
