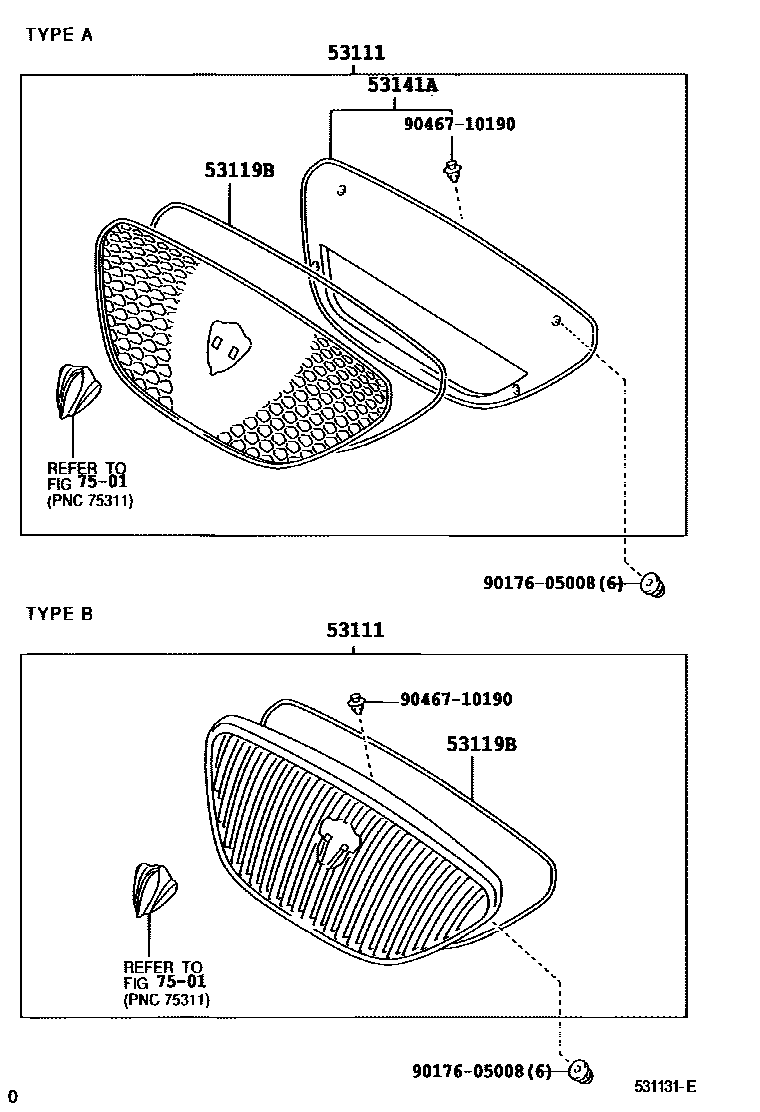

Toyota VEROSSA — RADIATOR GRILLE

53111GRILLE, RADIATOR

main53101-22540i200106-200404

main53101-22580i200301-200404

53119BPROTECTOR, RADIATOR GRILLE

main53119-22140i200106-200404

53141AGARNISH, RADIATOR GRILLE, LOWER RH

main53141-22070i200106-200404

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9017605008

main90176-05008

9046710190

main90467-10190

6 parts on this diagram · 1 diagram in section

RADIATOR GRILLE for Toyota VEROSSA

This section contains 6 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota VEROSSA. Key components include: GRILLE, RADIATOR, PROTECTOR, RADIATOR GRILLE, GARNISH, RADIATOR GRILLE, LOWER RH, EMBLEM & NAME PLATE (EXTERIOR & INTERIOR).
