Toyota VEROSSA — PARTIAL ENGINE ASSEMBLY

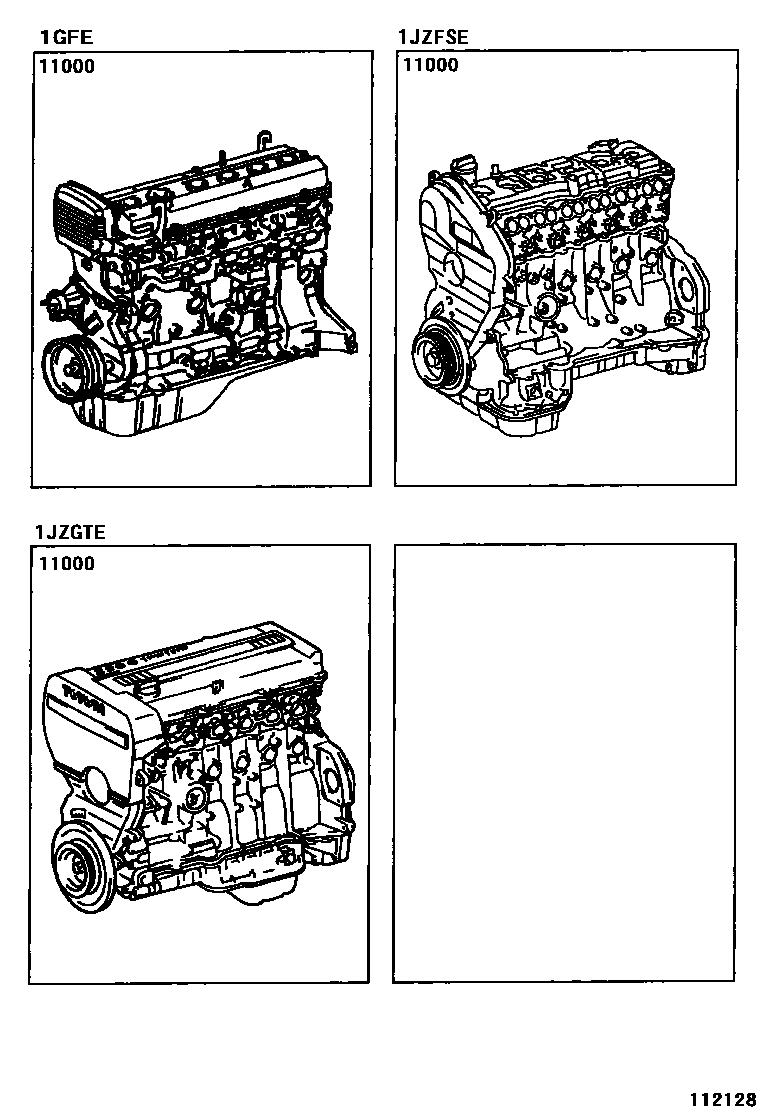

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-46520i200106-200404
main19000-70320i200106-200404
main19000-70330i200106-200404
main19000-88408i200106-200210
sub87245-3F521
main19000-88409i200210-200404

1 parts on this diagram · 1 diagram in section
