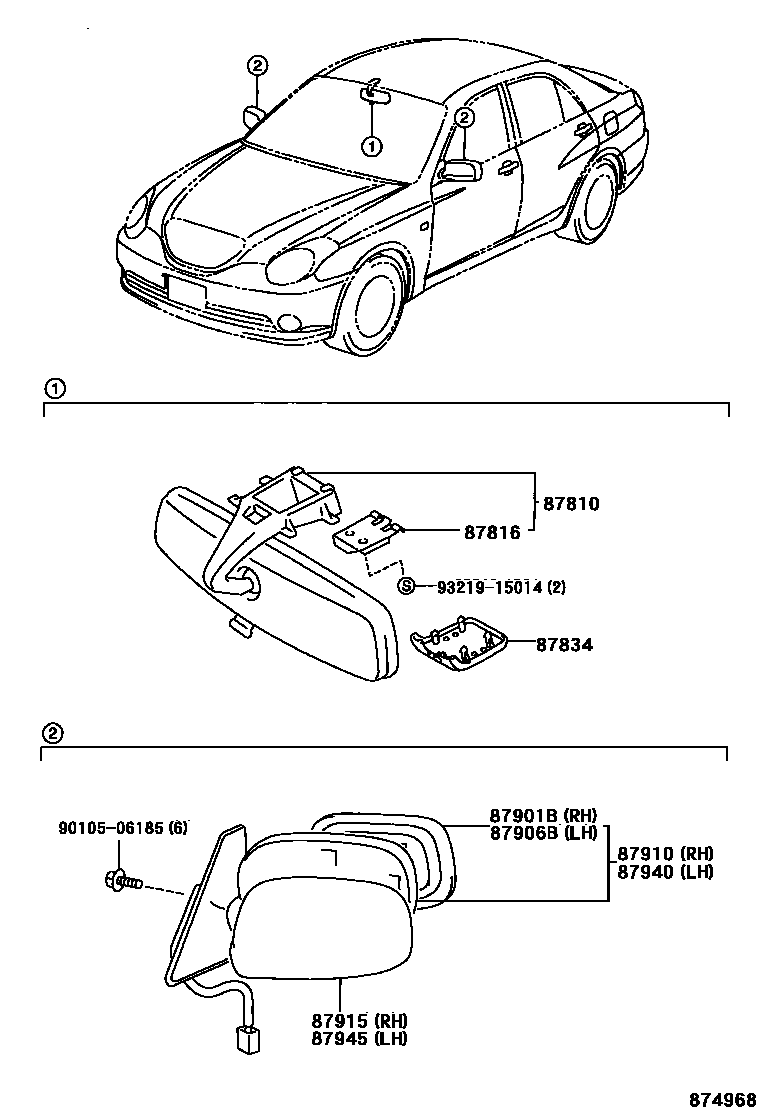

Toyota VEROSSA — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
MD.CHARCOAL,TRIM1#,2#
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
MD.CHARCOAL,TRIM1#,2#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,062
WHITE PEARL CS.,065
SILVER ME.,1C0
BLACK,202
BLACK CHERRY MC.,3P9
LT.ROSE M.M.,3Q1
DK.BLUE MC.,8N8
LT. BLUE M.M.,8P7
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,062
WHITE PEARL CS.,065
SILVER ME.,1C0
BLACK,202
BLACK CHERRY MC.,3P9
LT.ROSE M.M.,3Q1
DK.BLUE MC.,8N8
LT. BLUE M.M.,8P7
9010506185
main90105-06185
9321915014
main93219-15014
11 parts on this diagram · 1 diagram in section
MIRROR for Toyota VEROSSA
This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota VEROSSA. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
