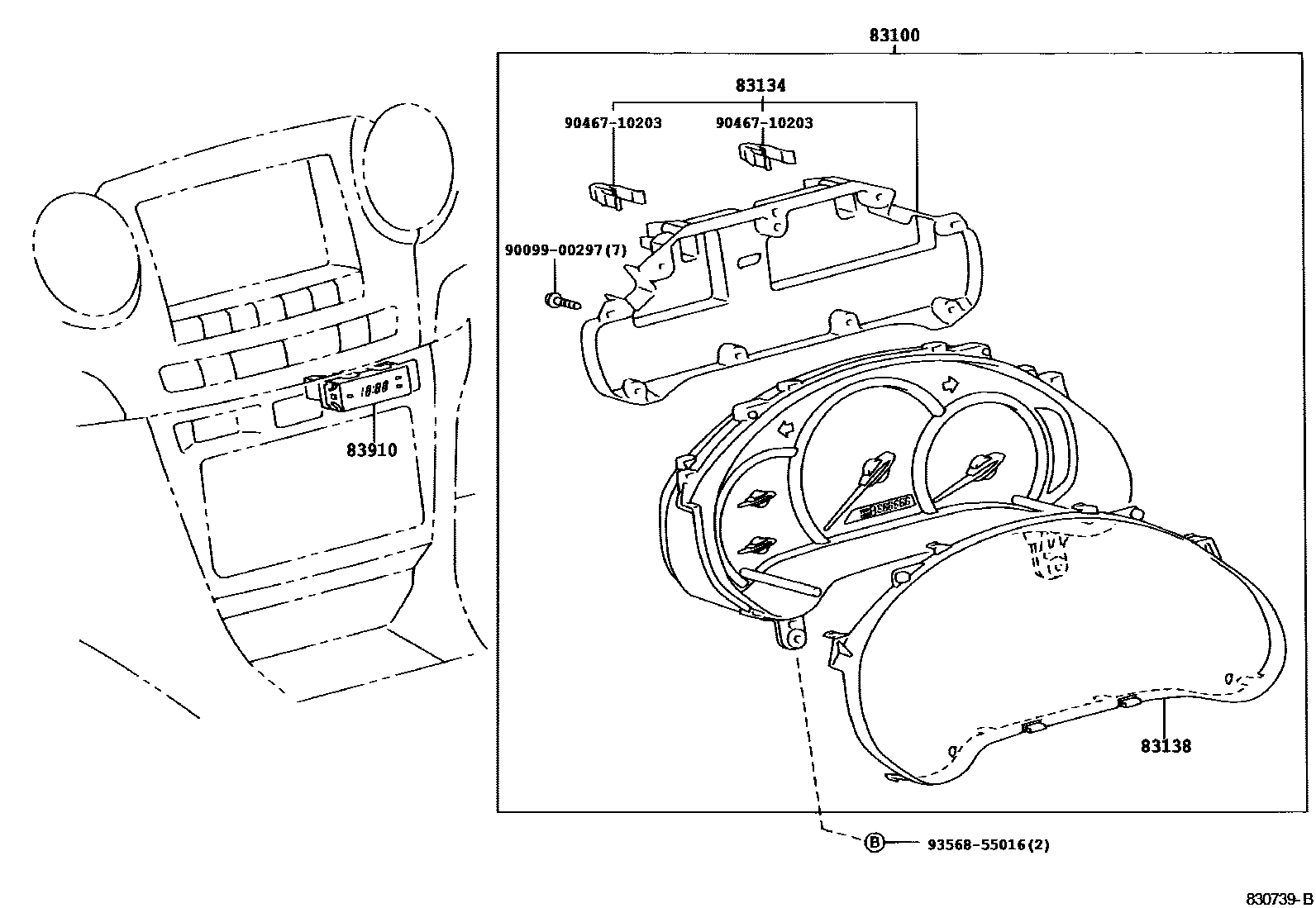

Toyota VEROSSA — METER

83100METER ASSY, COMBINATION

main83800-22390iGX110200106-200301

main83800-22391iGX110200301-200404

main83800-22400iGX115200106-200301

main83800-22401iGX115200301-200404

main83800-22410iJZX110..5FC200106-200311

main83800-22411iJZX110..5FC200311-200404

main83800-22420iJZX110..5FC200106-200301

main83800-22421iJZX110..5FC200301-200404

main83800-22430iJZX110..4FC200106-200301

main83800-22431iJZX110..4FC200301-200404

main83800-22440iJZX110..5F200106-200301

main83800-22441iJZX110..5F200301-200404

main83800-22570iGX11#200301-200404

main83800-22590iJZX110..25200301-200404

main83800-22600iJZX110..25200301-200404

83134COVER, COMBINATION METER, NO.1

main83821-22390iGX11#,JZX110200106-200404

83138GLASS, SPEEDOMETER

main83852-22390iGX11#,JZX110200106-200404

83910CLOCK ASSY

main83910-20720iGX11#,JZX110..20,25200211-200404

main83910-22490iGX11#,JZX110200106-200404

9009900297

main90099-00297

9046710203

main90467-10203

9356855016

main93568-55016

7 parts on this diagram · 1 diagram in section
