Toyota VEROSSA — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-22080i200106-200404

main43502-30150i200106-200404

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070×5i200106-200404

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-32035i200106-200404

main90369-43008i200106-200404

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-48013i200106-200404

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-77001i200106-200404

main90521-88001i200106-200404

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90179-22020i200106-200404

main90179-22022i200106-200404

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-22080i200106-200404

main43502-30150i200106-200404

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070×5i200106-200404

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-32035i200106-200404

main90369-43008i200106-200404

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-48013i200106-200404

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-77001i200106-200404

main90521-88001i200106-200404

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90179-22020i200106-200404

main90179-22022i200106-200404

43512DISC, FRONT

main43512-22220×2i200106-200404

main43512-50100×2i200106-200404

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-22040i200106-200404

main43514-53010i200106-200404

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-22040i200106-200404

main43514-53010i200106-200404

43515ROTOR, SKID CONTROL, FRONT

main43515-22030×2i200106-200404

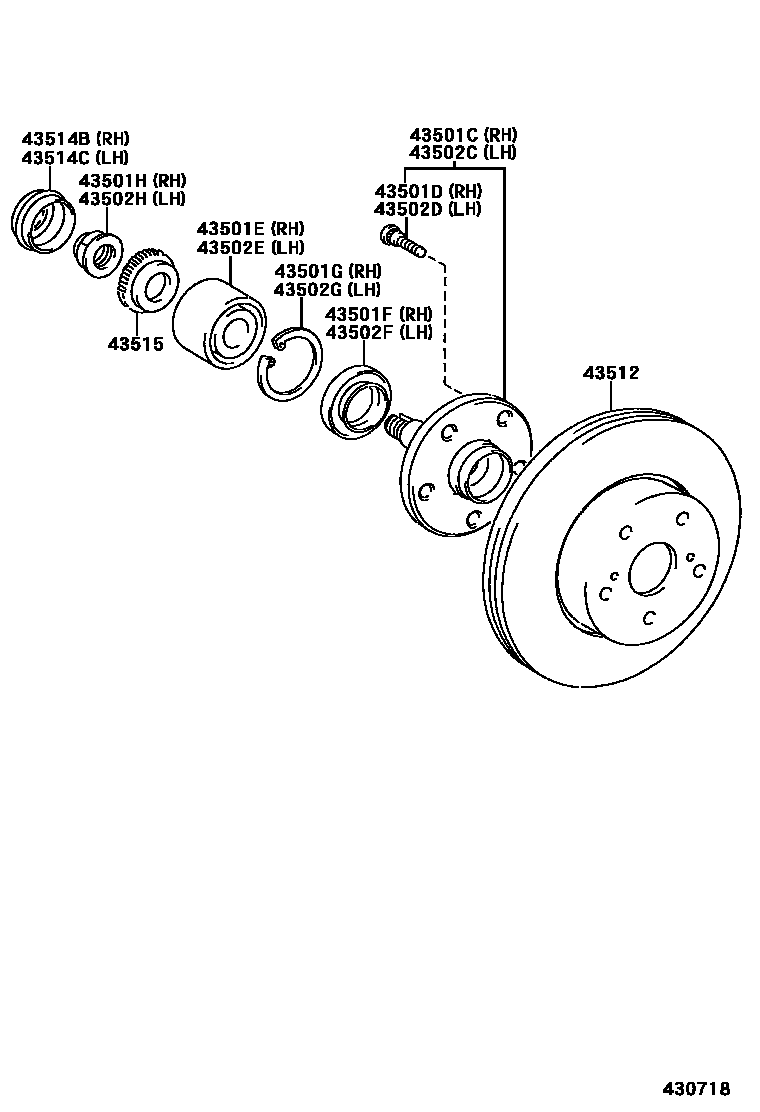

16 parts on this diagram · 2 diagrams in section

FRONT AXLE HUB for Toyota VEROSSA

This section contains 21 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota VEROSSA. Key components include: DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH).
