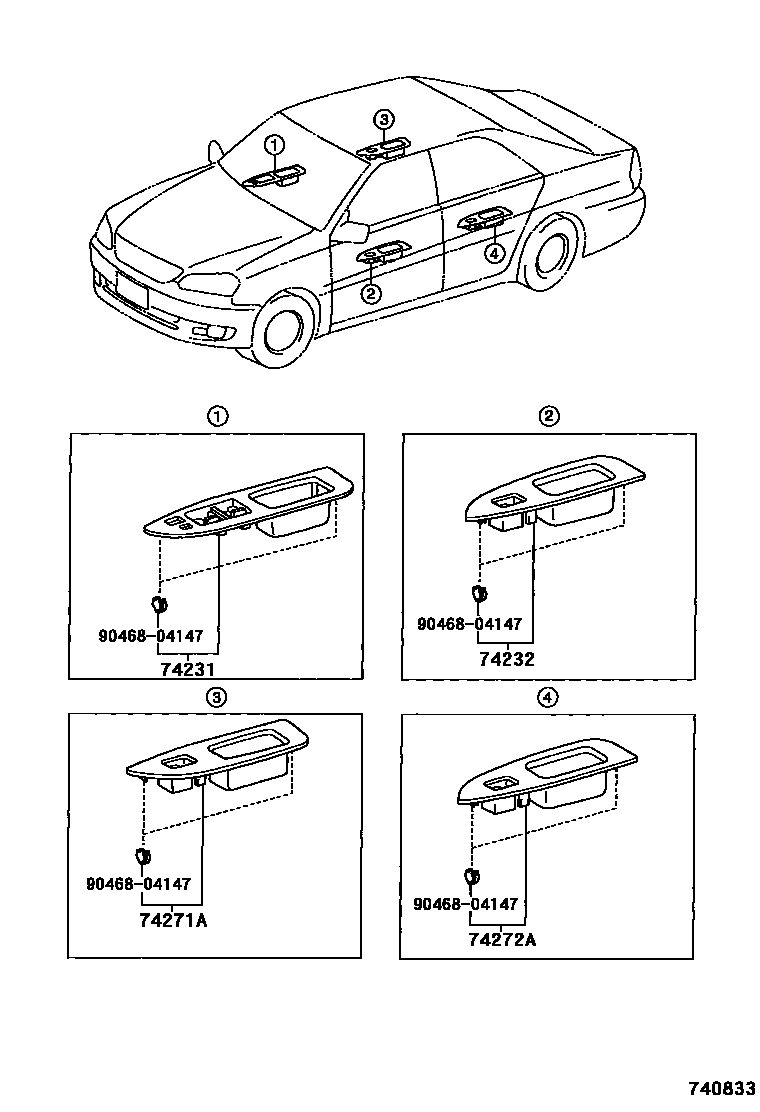

Toyota VEROSSA — ARMREST & VISOR
74231PANEL, FRONT ARMREST BASE, UPPER RH
SILVER,TRIM1#,2#
74232PANEL, FRONT ARMREST BASE, UPPER LH
SILVER,TRIM1#,2#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
SILVER,TRIM1#,2#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
SILVER,TRIM1#,2#
9046804147
main90468-04147
5 parts on this diagram · 2 diagrams in section
ARMREST & VISOR for Toyota VEROSSA
This section contains 17 genuine Toyota parts for the ARMREST & VISOR system of the Toyota VEROSSA. Key components include: PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH, PANEL, REAR DOOR ARMREST BASE, UPPER LH, VISOR ASSY, RH.
