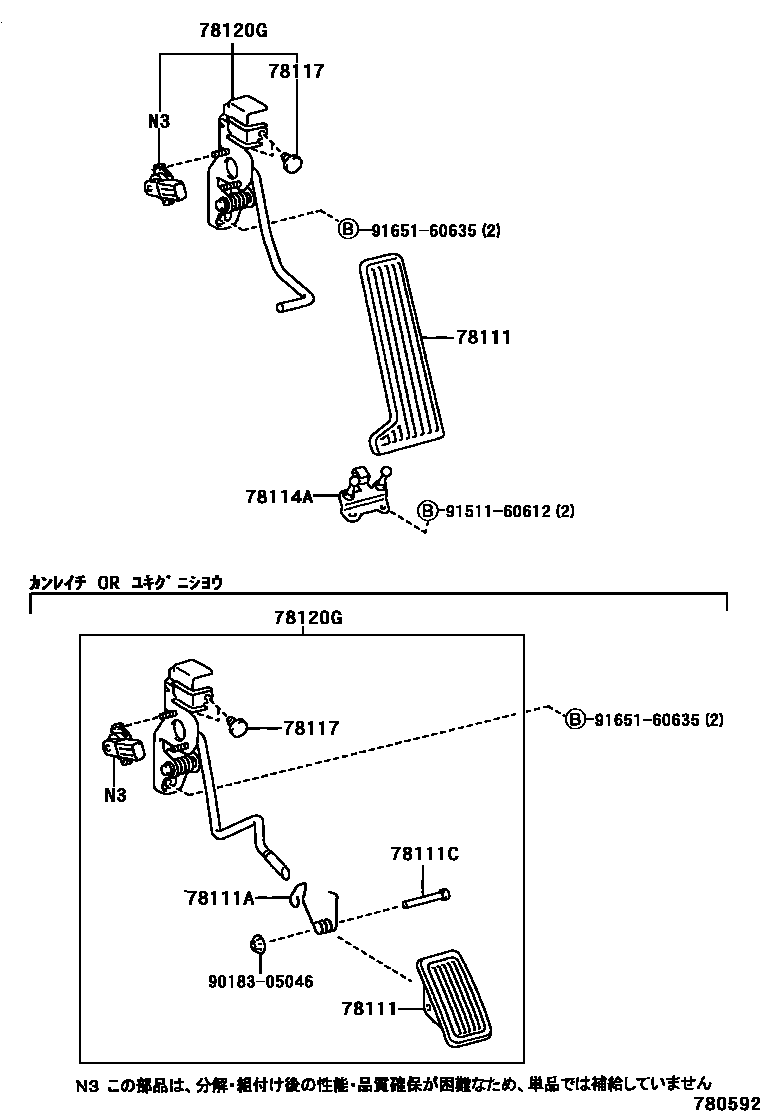

Toyota VEROSSA — ACCELERATOR LINK

0001 1 0002 1

78111PEDAL, ACCELERATOR

main78101-22020iGX11#,JZX110200106-200404

main78101-22030iGX11#,JZX110200106-200404

main78111-22020iGX11#200301-200404

main78111-30110iGX11#200301-200404

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23108iGX11#,JZX110..20,25200301-200404

main90905-08002iGX11#,JZX110200106-200404

78111CPIN (FOR ACCELERATOR PEDAL)

main90241-05022iGX11#,JZX110200106-200404

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-50021iGX11#,JZX110200106-200404

78117CUSHION (FOR ACCELERATOR ROD)

main90541-06036×2iJZX110..5FC200106-200404

78120GROD ASSY, ACCELERATOR PEDAL

main78010-22040iJZX110..5FC200106-200404

main78010-22060iJZX110..25200301-200404

main78010-22070iJZX110..5FC200106-200404

main78120-22410iGX110200106-200404

main78120-22420iGX110200301-200404

main78120-22440iGX110200106-200404

main78120-22450iGX115,JZX110..20,VR25200106-200404

main78120-22460iGX115200204-200212

main78120-22470iGX115,JZX110..20,VR25200106-200404

9018305046

main90183-05046

9151160612

main91511-60612

9165160635

main91651-60635

9 parts on this diagram · 2 diagrams in section
