Toyota VENZA — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-42260i202007-202210

85160LINK ASSY, WINDSHIELD WIPER

main85150-42240i202007-202210

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2i202007-202210

85211BARM, FRONT WIPER, RH

main85211-42210i202007-202210

85212ABLADE, FR WIPER, RH

main85212-42190i202007-202210

85214ARUBBER, WIPER, RH

main85214-28090i202007-202210

85214BRUBBER, WIPER, LH

main85214-52110i202007-202210

85221BARM, FRONT WIPER, LH

main85221-42210i202007-202210

85222ABLADE, FR WIPER, LH

main85222-42180i202007-202210

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2i202007-202210

89941SENSOR, RAIN

main89941-42020i202007-202210

HEAD UP DISPLAY-WITH

89943COVER, RAIN SENSOR

main89943-42040i202007-202210

HEAD UP DISPLAY-WITH

89944TAPE, RAIN SENSOR

main89944-42020i202007-202210

HEAD UP DISPLAY-WITH

9011906864

main90119-06864

9014860091

main90148-60091

9413060600

main94130-60600

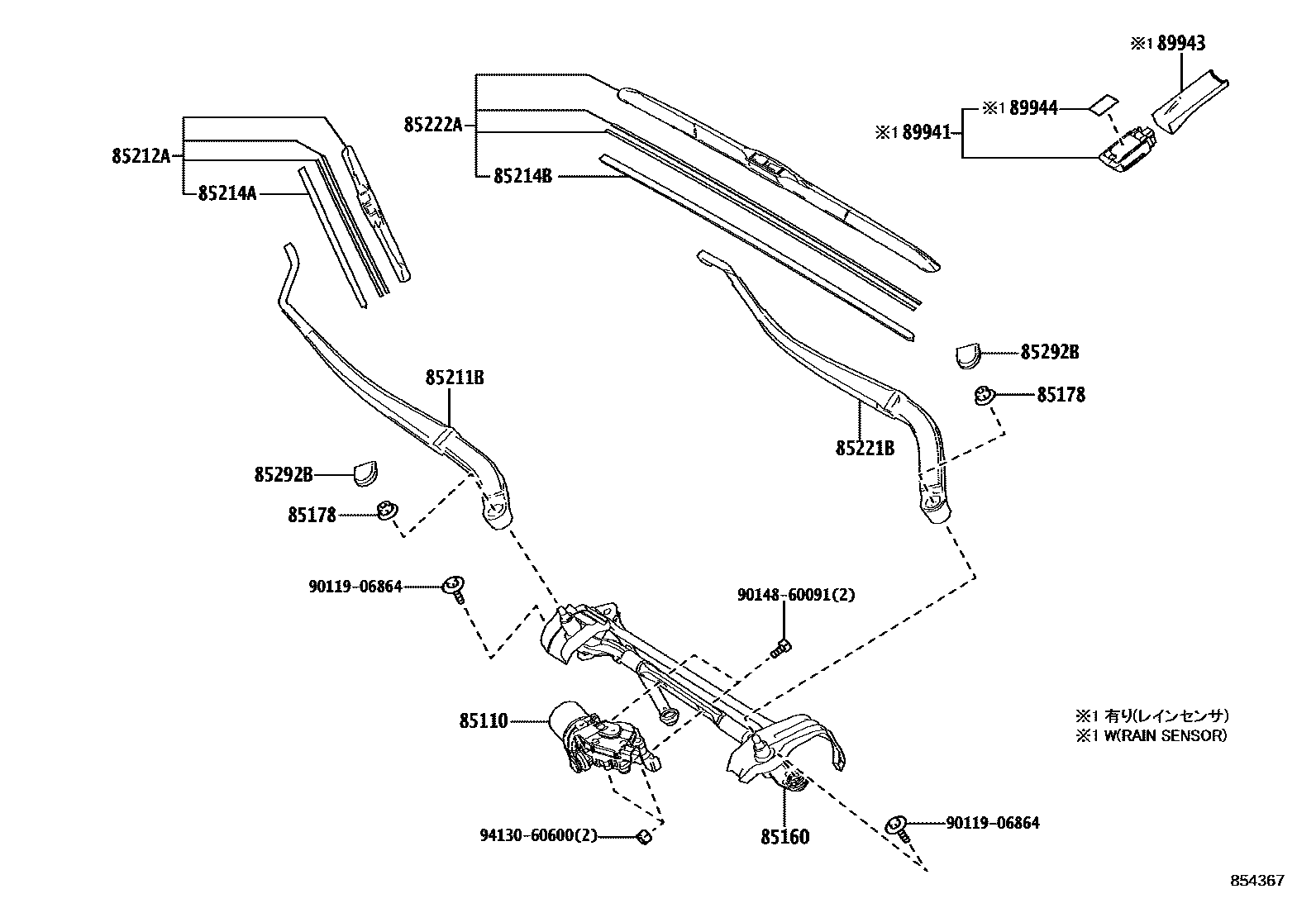

16 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota VENZA

This section contains 16 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota VENZA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
