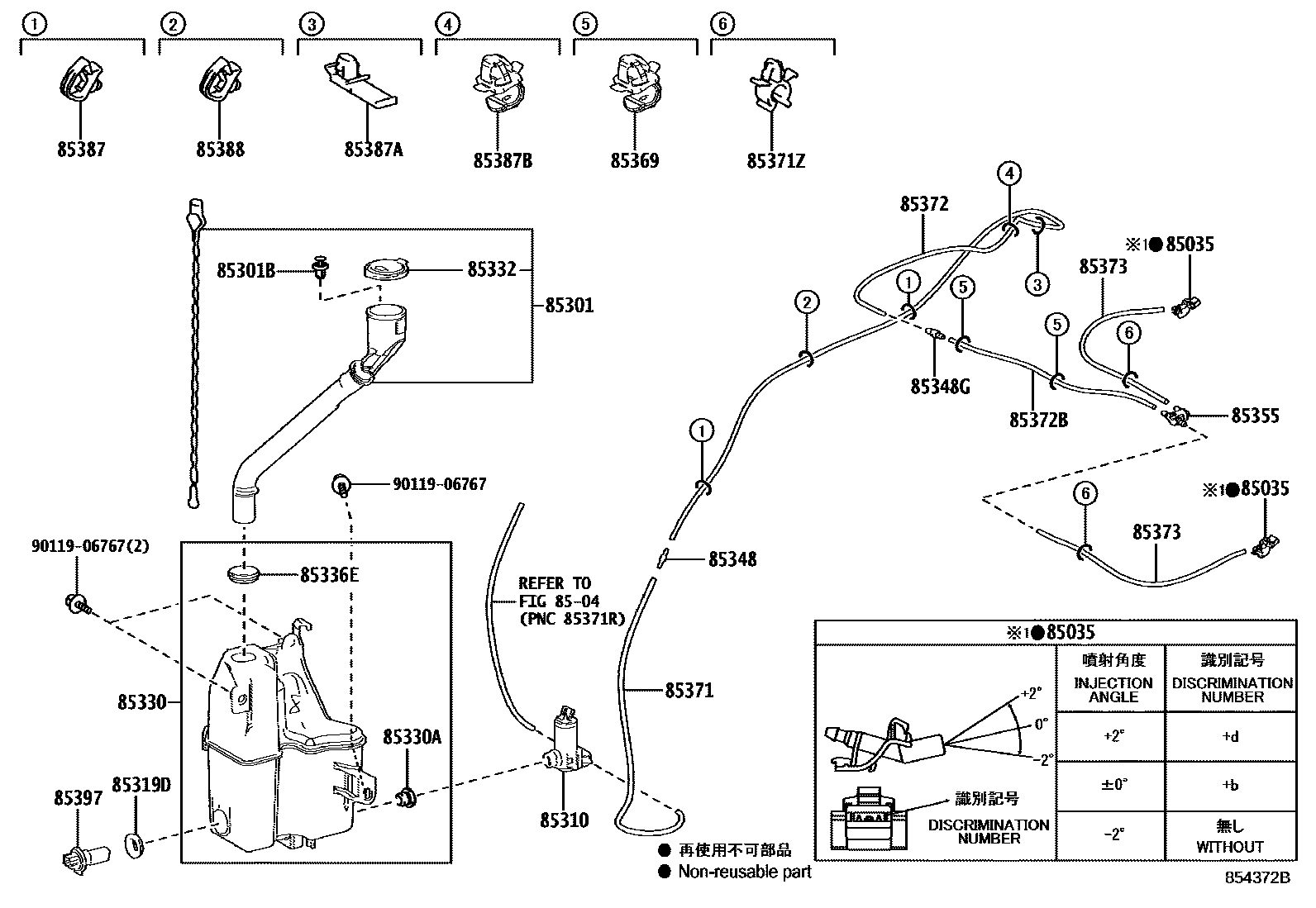

Toyota VENZA — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2i202007-202210

ANGLE 0

main85381-30230×2i202007-202210

ANGLE -2

main85381-30240×2i202007-202210

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-48080i202007-202210

85301BCLIP, WASHER

main90467-07215i202007-202210

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47100i202007-202210

85319DPACKING, FRONT WASHER

main85319-33230i202007-202210

85330JAR ASSY, WINDSHIELD WASHER

main85315-42450i202007-202210

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i202007-202210

85332CAP, WINDSHIELD WASHER JAR

main85316-24130i202007-202210

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160i202007-202210

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i202007-202210

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i202210-202408

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i202007-202210

85369CLAMP

main85371-12040×2i202007-202210

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i202007-202210

L=1450(*H,L=590)

85371ZCLAMP, WASHER HOSE

main90469-07011×2i202007-202210

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33803i202007-202210

L=1660

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i202007-202210

L=1450(*H,L=500)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i202007-202210

L=1450(*H,L=470)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-16790×2i202007-202210

85387ACLAMP, WASHER, NO.2

main82711-3A640i202007-202210

85387BCLAMP, WASHER, NO.3

main85371-48050i202007-202210

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main82711-35520i202007-202210

85397SWITCH ASSY,LEVEL WARNING

main85397-30400i202007-202210

9011906767

main90119-06767

25 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota VENZA

This section contains 25 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota VENZA. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, CLIP, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
