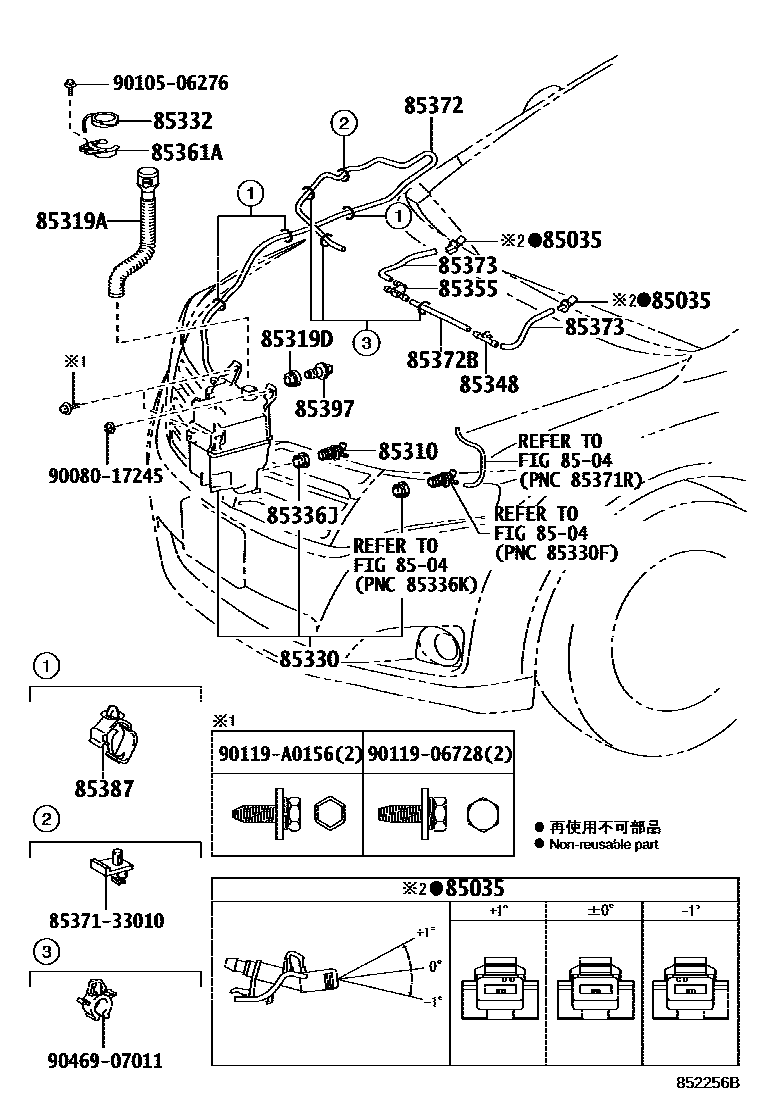

Toyota VENZA — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0T010×2i200811-201205

ANGLE 0

main85381-0T020×2i200811-201205

ANGLE +1

main85381-0T030×2i200811-201205

ANGLE -1

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190i200811-201205

WITH

85319AHOSE, INLET

main85319-42230i200811-201205

WITH

85319DPACKING, FRONT WASHER

main85319-AA020i200811-201205

WITH

85330JAR ASSY, WINDSHIELD WASHER

main85315-0T010i200811-201205

WITH

85332CAP, WINDSHIELD WASHER JAR

main85316-48060i200811-201205

WITH

85336JPROTECTOR, WASHER JAR

main85336-60300i200811-201205

WITH

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-20800i200811-201205

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i200811-201205

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-30380i200811-201205

WITH

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33109i200811-201205

L=2030

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33065i200811-201205

L=390

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33097×2i200811-201205

L=265

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-1E350×3i200811-201205

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040i200811-201205

WITH

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9008017245

main90080-17245

9010506276

main90105-06276

9011906728

main90119-06728

90119A0156

main90119-A0156

9046907011

main90469-07011

22 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota VENZA

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota VENZA. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, INLET, PACKING, FRONT WASHER.
