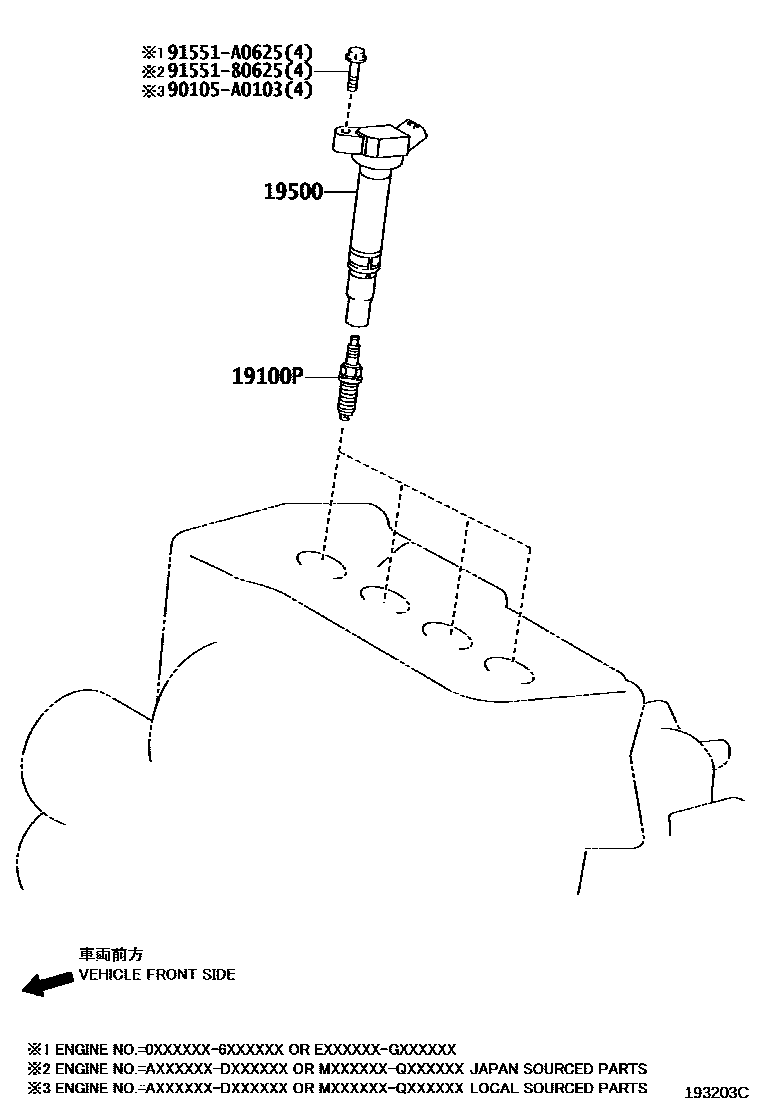

Toyota VENZA — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01233×4i200901-201205

SK16HR11,*107

main90919-01247×6i200811-201205

FK20HR11

main90919-A1003×4i201109-201205

SK16HR11,*212

19500COIL ASSY, IGNITION

main90919-02251×6i200811-200812

(J)

main90919-02255×6i201205-201210

(J)

main90919-02256×4i200901-201205

*107

main90919-A2002×6i200811-200901

(L)

main90919-A2004×6i200901-201012

(L)

main90919-A2005×4i201109-201205

*212

main90919-A2007×6i201012-201205

(L)

90105A0103

main90105-A0103

9155180625

main91551-80625

91551A0625

main91551-A0625

5 parts on this diagram · 2 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota VENZA

This section contains 5 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota VENZA. Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
