Toyota VENZA — FRONT FENDER APRON & DASH PANEL

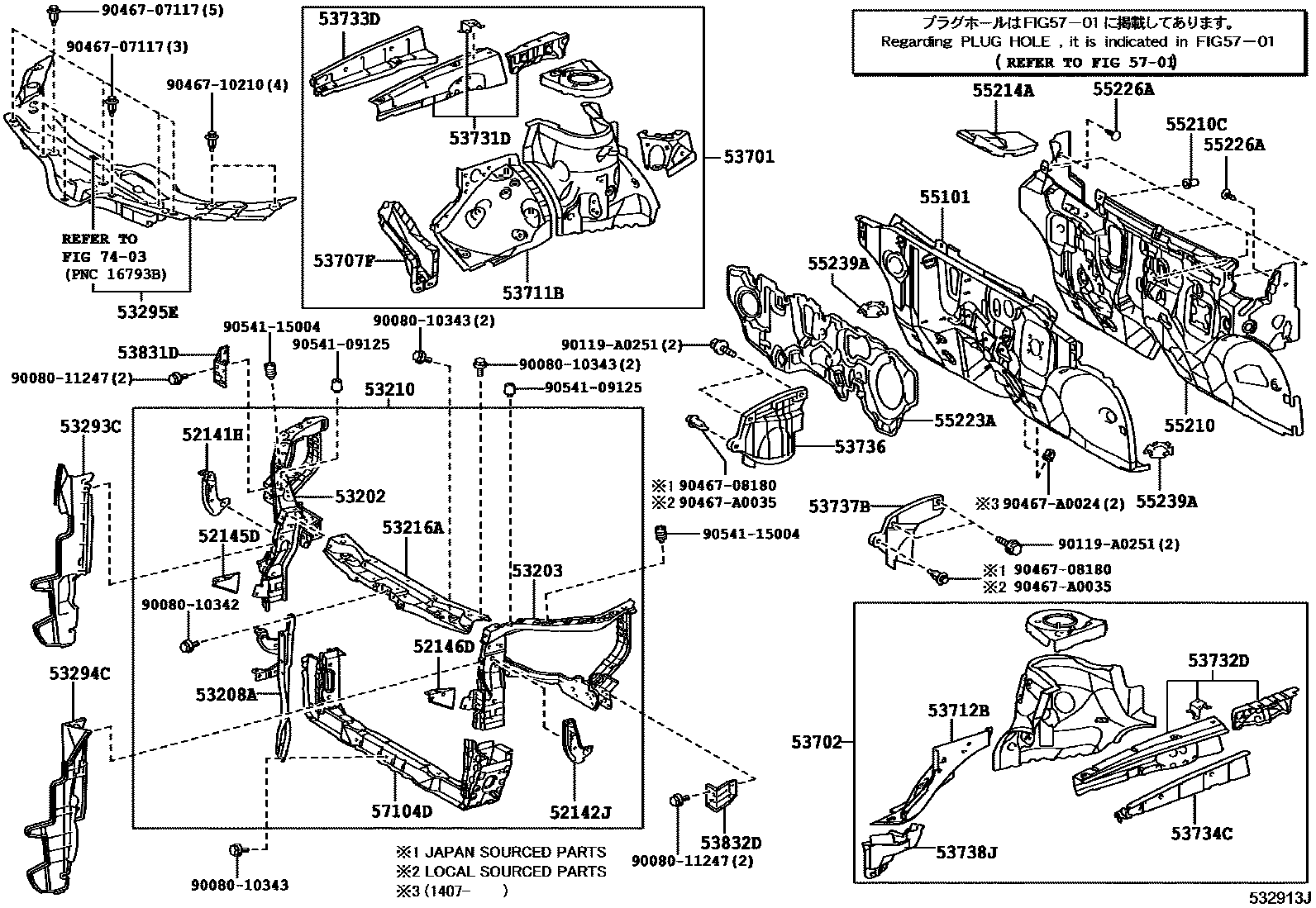

Parts diagram

52141HARM, FRONT BUMPER, UPPER RH

main52141-0T010i200811-201205

52142JARM, FRONT BUMPER, UPPER LH

main52142-0T010i200811-201205

52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-0T010i200811-201205

52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52146-0T010i200811-201205

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-0T010i200811-201108

main53202-0T011i201109-201205

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-0T010i200811-201108

main53203-0T011i201109-201205

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-0T010i200811-201205

53210SUPPORT ASSY, RADIATOR

main53210-0T010i200811-201008

main53210-0T011i201009-201108

main53210-0T012i201109-201612

53216ASUPPORT, RADIATOR, UPPER

main53216-0T010i200811-201205

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-0T010i200811-201205

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-0T010i200811-201205

53295ESEAL, COOL AIR INTAKE DUCT

main53295-0T010i200811-200812

main53295-0T011i200812-201205

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0T010i200811-201201

main53701-0T011i201201-201612

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0T010i200811-201612

53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH

main53707-0T010i200811-201205

53711BAPRON, FRONT FENDER, FRONT RH

main53711-0T010i200811-201201

main53711-0T011i201201-201205

53712BAPRON, FRONT FENDER, FRONT LH

main53712-0T010i200811-200812

main53712-0T020i200901-201205

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-0T901i200811-200901

main53731-0T902i200901-201205

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-0T901i200811-201205

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-0T010i200811-201407

main53733-0T011i201408

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-0T010i200811-201407

main53734-0T011i201408

53736SEAL, FRONT FENDER APRON, RH

main53736-07021i200811-201205

53737BSEAL, FRONT FENDER APRON, LH

main53737-06040i200811-201205

53738JGUSSET, FRONT FENDER APRON WIND GUIDE, LH

main53738-0T010i200811-201304

main53738-0T011i201305

53831DPANEL, FRONT FENDER SIDE, RH

main53833-0T010i200811-201205

53832DPANEL, FRONT FENDER SIDE, LH

main53834-0T010i200811-201205

55101PANEL SUB-ASSY, DASH

main55101-0T010i200811-201408

main55101-0T020i201408-201612

55210INSULATOR ASSY, DASH PANEL

main55210-0T010i200811-201112

main55210-0T011i201112-201205

main55210-0T020i201205-201408

main55210-0T040i201408-201612

55210CCLIP

main90467-06197i200811-201612

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-0T010i200811-201408

main55214-0T020i201408

55223AINSULATOR, DASH PANEL, OUTER

main55223-0T010i200811-201205

WITH

main55223-0T011i201205

main55223-0T020i200901-201205

WITH

main55223-0T021i201205

55226ACLIP

main90467-A0002i200811-201001

main90467-A0002-C0i201001-201612

BLACK

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-06020i200811-201612

5701HOLE PLUG

→ Go to FIG 57-01

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-07021i200811-201008

main57104-07022i201009-201205

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9008010342

main90080-10342

9008010343

main90080-10343

9008011247

main90080-11247

90119A0251

main90119-A0251

9046707117

main90467-07117

9046708180

main90467-08180

9046710210

main90467-10210

90467A0024

main90467-A0024

90467A0035

main90467-A0035

9054109125

main90541-09125

9054115004

main90541-15004

47 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota VENZA

This section contains 47 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota VENZA. Key components include: ARM, FRONT BUMPER, UPPER RH, ARM, FRONT BUMPER, UPPER LH, BRACKET, FRONT BUMPER SIDE MOUNTING, RH, BRACKET, FRONT BUMPER SIDE MOUNTING, LH, SUPPORT SUB-ASSY, RADIATOR, RH.
