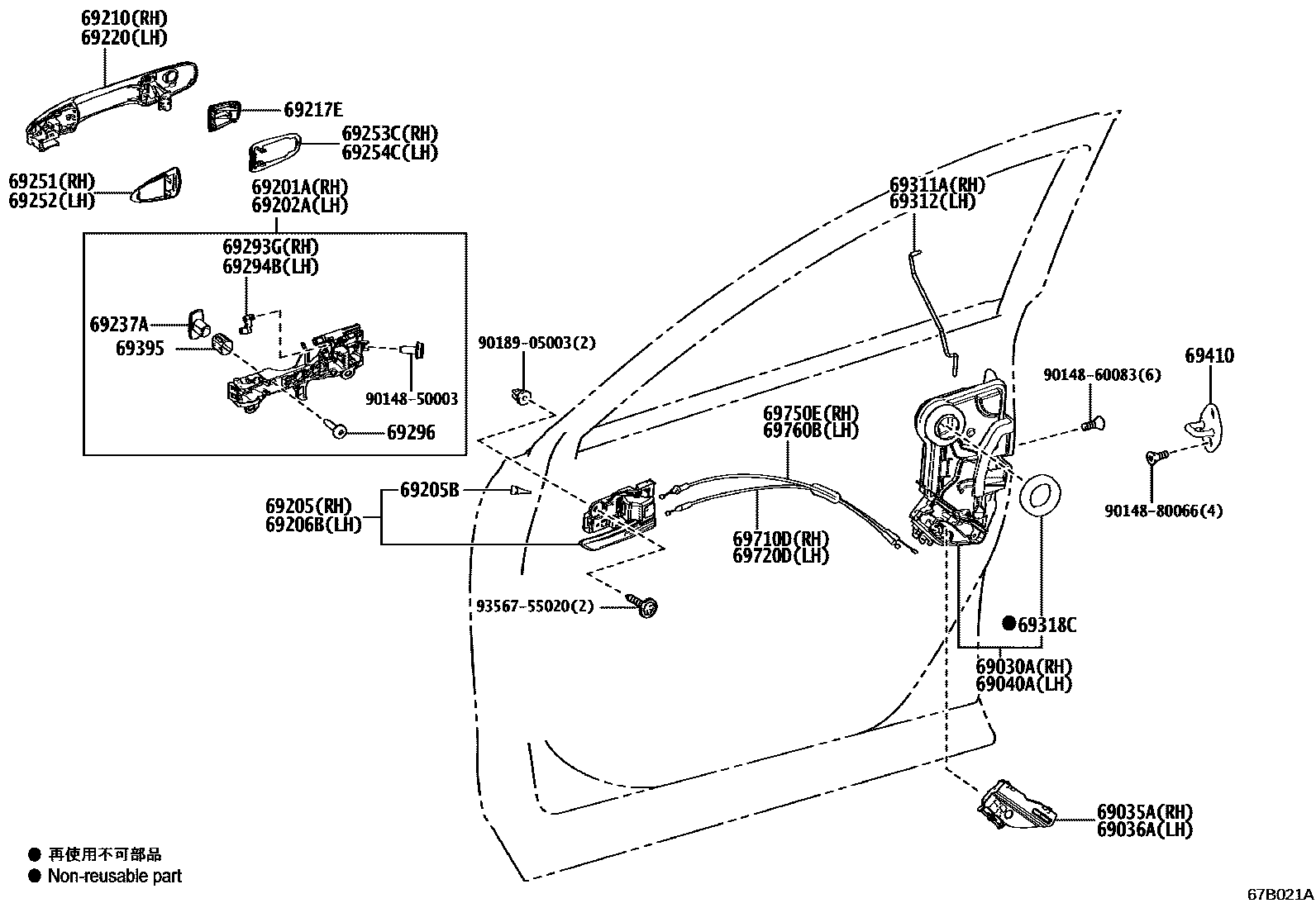

Toyota VENZA — FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-53120i202007-202210

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-30010i202007-202210

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-30010i202007-202210

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-53130i202007-202210

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-33060i202007-202210

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-33060i202007-202210

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-33140-C0i202007-202210

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×4i202210-202408

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-33150-C0i202007-202210

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-K0020-A1i202007-202210

WHITE PEARL CS.,070

main69210-K0020-A3i202210-202408

PLATINUM WHITE PEARL MC.,089

main69210-K0020-B4i202007-202210

SLATE GRAY ME.,1K4 ,1K9

main69210-K0020-C0i202210-202408

BLACK,089 ,202 ,3T3; BLACK,202

main69210-K0020-C2i202210-202408

PRECIOUS BLACK,219

main69210-K0020-D1i202007-202210

RED MC.,3T3

main69210-K0020-E2i202210-202408

STEEL BLONDE ME.,4X1

main69210-K0020-J3i202210-202408

DK. BLUE MC.,8X8

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-47020i202007-202210

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-K0010-A1i202007-202210

WHITE PEARL CS.,070

main69210-K0010-A3i202210-202408

PLATINUM WHITE PEARL MC.,089

main69210-K0010-B4i202210-202408

SLATE GRAY ME.,1K9

main69210-K0010-C0i202210-202408

BLACK,089 ,202 ,3T3; BLACK,202

main69210-K0010-C2i202210-202408

PRECIOUS BLACK,219

main69210-K0010-D1i202007-202210

RED MC.,3T3

main69210-K0010-E2i202210-202408

STEEL BLONDE ME.,4X1

main69210-K0010-J3i202007-202210

DK. BLUE MC.,8X8

69237ANUT, FRONT DOOR HANDLE

main69237-62010×2i202007-202210

69251PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH

main69241-47020i202007-202210

69252PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH

main69241-47020i202007-202210

69253CPAD, FRONT DOOR OUTSIDE HANDLE, REAR RH

main69242-47030i202007-202210

69254CPAD, FRONT DOOR OUTSIDE HANDLE, REAR LH

main69242-47030i202007-202210

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-33030i202007-202210

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-33040i202007-202210

69296SCREW, DOOR INSIDE HANDLE

main69296-30010×2i202007-202203

main90148-50006×2i202204-202210

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-48090i202007-202210

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-48090i202007-202210

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2i202007-202210

69395BUSH(FOR DOOR OUTSIDE HANDLE)

main69239-47010×2i202007-202210

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110×2i202007-202210

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-48090i202007-202210

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-48090i202007-202210

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-48110i202007-202101

main69750-48111i202102-202210

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-48110i202007-202101

main69750-48111i202102-202210

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9356755020

main93567-55020

34 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE for Toyota VENZA

This section contains 34 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota VENZA. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, COVER SUB-ASSY, FRONT DOOR LOCK, RH, COVER SUB-ASSY, FRONT DOOR LOCK, LH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH.
