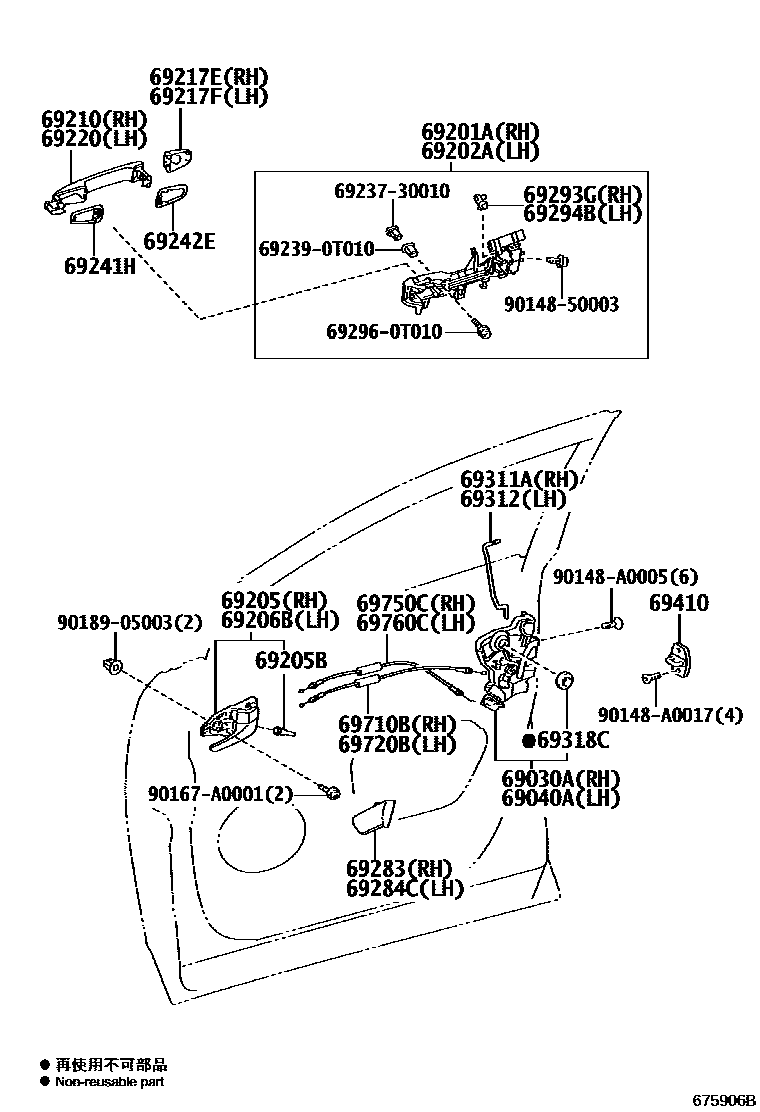

Toyota VENZA — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WITH(SMART KEY),WHITE PEARL CS.,070
WITH(SMART KEY),SILVER ME.,1F7
WITH(SMART KEY),GRAY ME.,1G3
WITH(SMART KEY),DK. STEEL MC.,1H2
WITH(SMART KEY),SILVER ME.,1J9
WITH(SMART KEY),BLACK,202
WITH(SMART KEY),ATTITUDE BLACK MC.,218
WITH(SMART KEY),RED M.M.,3R3
WITH(SMART KEY),BROWN M.M.,4U2
WITH(SMART KEY),DK. BROWN M.M.,4U3
WITH(SMART KEY),OLIVE M.M.,6T7
WITH(SMART KEY),TURQUOISE M.M.,776
WITH(SMART KEY),BLUE ME.,8U6
WITH(SMART KEY),DK.BLUE M.M.,8W6
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
WITH(SMART KEY),WHITE PEARL CS.,070
WITH(SMART KEY),SILVER ME.,1F7
WITH(SMART KEY),GRAY ME.,1G3
WITH(SMART KEY),DK. STEEL MC.,1H2
WITH(SMART KEY),SILVER ME.,1J9
WITH(SMART KEY),BLACK,202
WITH(SMART KEY),ATTITUDE BLACK MC.,218
WITH(SMART KEY),RED M.M.,3R3
WITH(SMART KEY),BROWN M.M.,4U2
WITH(SMART KEY),DK. BROWN M.M.,4U3
WITH(SMART KEY),OLIVE M.M.,6T7
WITH(SMART KEY),TURQUOISE M.M.,776
WITH(SMART KEY),BLUE ME.,8U6
WITH(SMART KEY),DK.BLUE M.M.,8W6
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
WITH(SMART KEY),WHITE PEARL CS.,070
WITH(SMART KEY),SILVER ME.,1F7
WITH(SMART KEY),GRAY ME.,1G3
WITH(SMART KEY),DK. STEEL MC.,1H2
WITH(SMART KEY),SILVER ME.,1J9
WITH(SMART KEY),BLACK,202
WITH(SMART KEY),ATTITUDE BLACK MC.,218
WITH(SMART KEY),RED M.M.,3R3
WITH(SMART KEY),BROWN M.M.,4U2
WITH(SMART KEY),DK. BROWN M.M.,4U3
WITH(SMART KEY),OLIVE M.M.,6T7
WITH(SMART KEY),TURQUOISE M.M.,776
WITH(SMART KEY),BLUE ME.,8U6
WITH(SMART KEY),DK.BLUE M.M.,8W6
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WITH(SMART KEY),WHITE PEARL CS.,070
WITH(SMART KEY),SILVER ME.,1F7
WITH(SMART KEY),GRAY ME.,1G3
WITH(SMART KEY),DK. STEEL MC.,1H2
WITH(SMART KEY),SILVER ME.,1J9
WITH(SMART KEY),BLACK,202
WITH(SMART KEY),ATTITUDE BLACK MC.,218
WITH(SMART KEY),RED M.M.,3R3
WITH(SMART KEY),BROWN M.M.,4U2
WITH(SMART KEY),DK. BROWN M.M.,4U3
WITH(SMART KEY),OLIVE M.M.,6T7
WITH(SMART KEY),TURQUOISE M.M.,776
WITH(SMART KEY),BLUE ME.,8U6
WITH(SMART KEY),DK.BLUE M.M.,8W6
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
692390T010PIN, BACK DOOR OUTSIDE HANDLE
main69239-0T010
692960T010SCREW, DOOR INSIDE HANDLE
main69296-0T010
9014850003
main90148-50003
90148A0005
main90148-A0005
90148A0017
main90148-A0017
90167A0001
main90167-A0001
9018905003
main90189-05003
33 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota VENZA
This section contains 33 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota VENZA. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
