Toyota VENZA — FRONT AXLE HUB

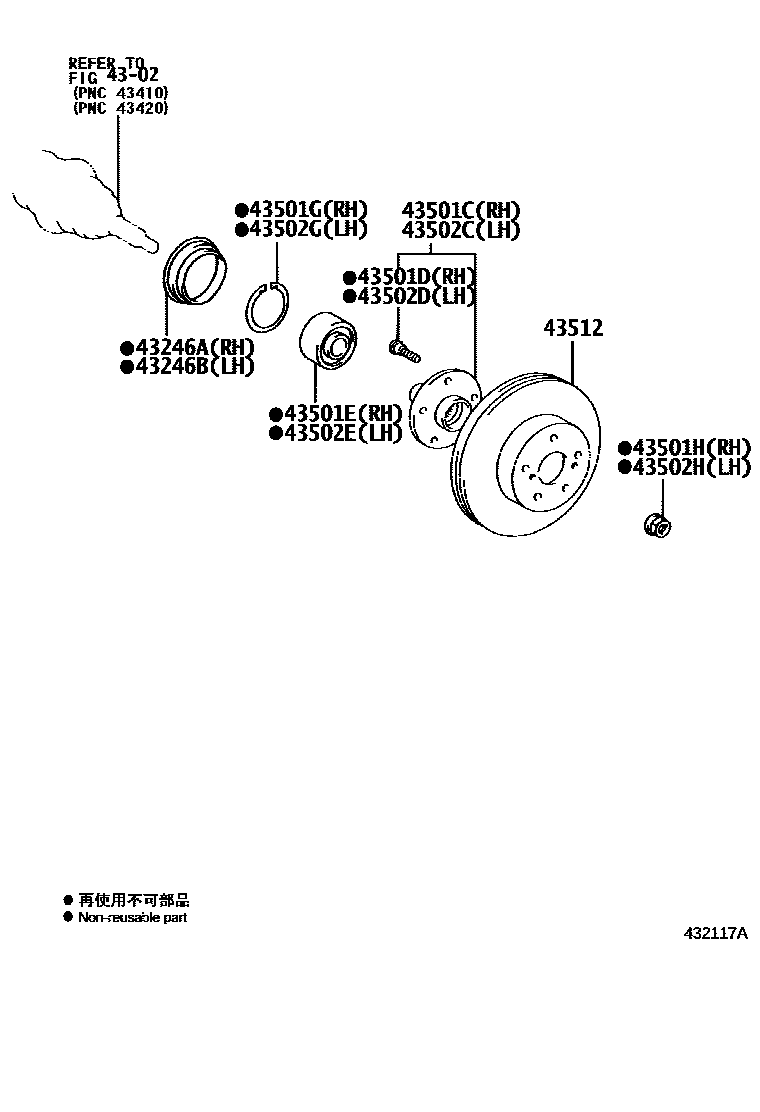

Parts diagram
4302FRONT DRIVE SHAFT
→ Go to FIG 43-02
43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH
main43246-73010i200811-201205
43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH
main43246-73010i200811-201205
43501CHUB SUB-ASSY, FRONT AXLE, RH
main43502-AA021i200811-201205
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02049×5i200811-201205
43501EBEARING (FOR FRONT AXLE HUB RH)
main90080-36193i200811-201205
43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
main90520-77001i200811-201205
43501HNUT (FOR FRONT AXLE SHAFT RH)
main90080-17238i200811-201205
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43502-AA021i200811-201205
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02049×5i200811-201205
43502EBEARING (FOR FRONT AXLE HUB LH)
main90080-36193i200811-201205
43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)
main90520-77001i200811-201205
43502HNUT (FOR FRONT AXLE SHAFT LH)
main90080-17238i200811-201205
43512DISC, FRONT
main43512-0T010×2i200811-201205

14 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota VENZA

This section contains 14 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota VENZA. Key components include: FRONT DRIVE SHAFT, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH).
