Toyota VENZA — CONSOLE BOX & BRACKET

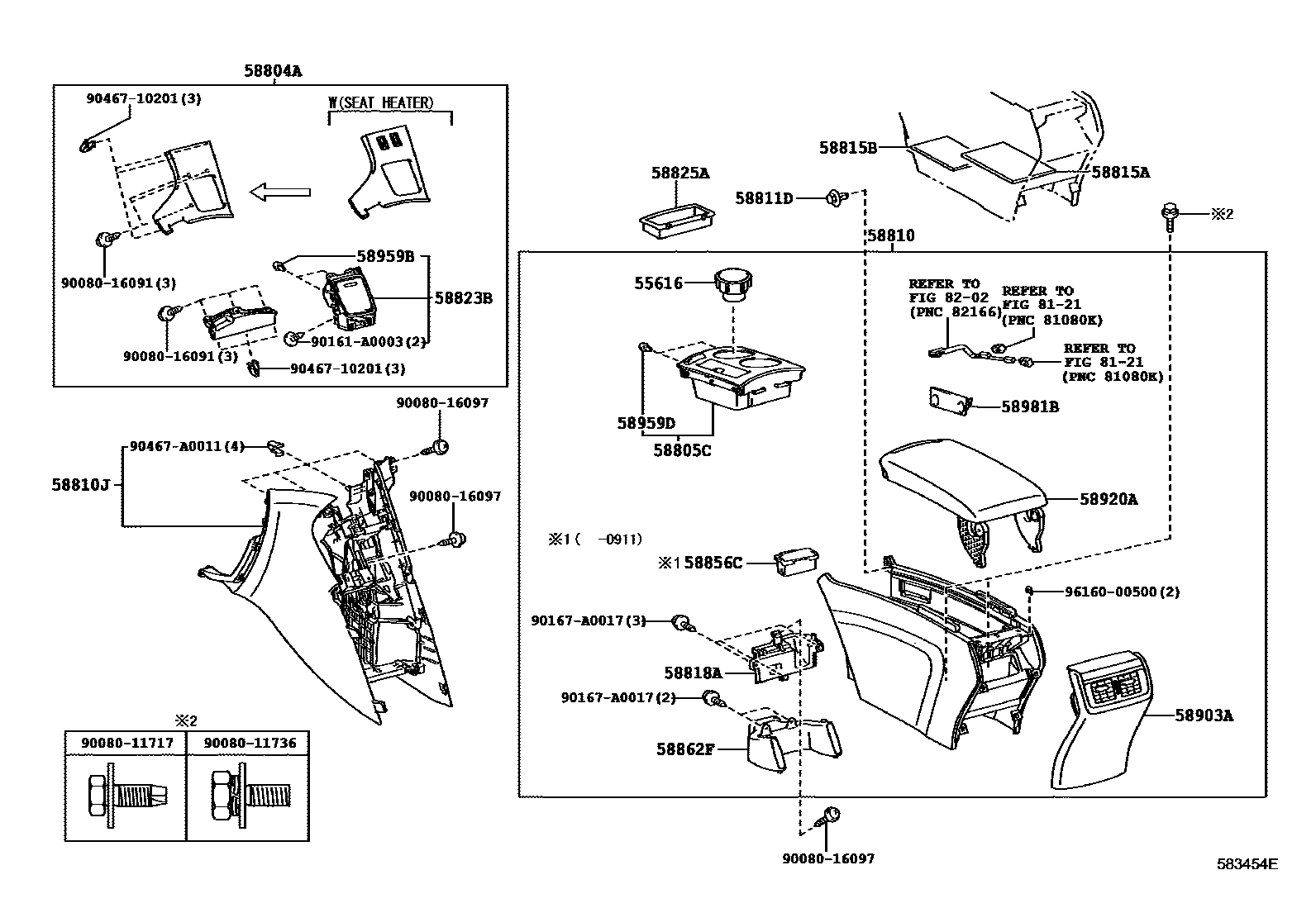

Parts diagram
55616DAMPER, INSTRUMENT PANEL CUP HOLDER
main55616-0T010i201204-201205
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-0T020-E0supersedes 58804-0T010-E0i200811-201205
CORE PACKAGE&WITH(LEATHER PACKAGE),DARK BROWN,TRIM0#,1#
main58804-0T030-E0supersedes 58804-0T010-E0i200811-201205
CORE PACKAGE&WITH(LEATHER PACKAGE)&SEAT HEATER-WITH(DRIVER & PASSENGER),DARK BROWN,TRIM0#,1#
sub58804-0T031
main58804-0T050-B1supersedes 58804-0T040-B1i201205-201207
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),SILVER,TRIM2#
main58804-0T050-C0supersedes 58804-0T040-C0i201205-201207
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#
main58804-0T050-E0supersedes 58804-0T040-E0i201205-201207
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),DARK BROWN,TRIM0#
main58804-0T051-B1supersedes 58804-0T040-B1i201208-201612
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),SILVER,TRIM2#
main58804-0T051-C0supersedes 58804-0T040-C0i201208-201612
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#
main58804-0T051-E0supersedes 58804-0T040-E0i201208-201612
WITH(LEATHER & MEMORY)&SEAT HEATER-WITH(DRIVER & PASSENGER),DARK BROWN,TRIM0#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
main58805-0T030-B1i201205-201207
SILVER,TRIM2#
main58805-0T030-C0i201205-201207
BLACK,TRIM1#
main58805-0T030-E0i201205-201207
DARK BROWN,TRIM0#
main58805-0T031-B1i201208-201612
SILVER,TRIM2#
main58805-0T031-C0i201208-201612
BLACK,TRIM1#
main58805-0T031-E0i201208-201612
DARK BROWN,TRIM0#
main58805-0T020supersedes 58805-0T010i200811-201204
CORE PACKAGE&WITH(LEATHER PACKAGE)
sub58805-0T021
58810CONSOLE ASSY
main58810-0T020-A1supersedes 58810-0T010-A1i200811-200911
CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#
main58810-0T020-B1supersedes 58810-0T010-B1i200811-200911
CORE PACKAGE&WITH(LEATHER PACKAGE),LT. GRAY,TRIM1#
main58810-0T021-A1supersedes 58810-0T011-A1i200911-201203
CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#
main58810-0T021-B1supersedes 58810-0T011-B1i200911-201203
CORE PACKAGE&WITH(LEATHER PACKAGE),LT.GRAY,TRIM1#
main58810-0T022-A1supersedes 58810-0T032-A0i201204-201205
CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#
sub58810-0T023
main58810-0T022-B1supersedes 58810-0T032-B0i201204-201205
CORE PACKAGE&WITH(LEATHER PACKAGE),LT.GRAY,TRIM1#
sub58810-0T023
main58810-0T040-A0supersedes 58810-0T032-A0i201205-201207
WITH(LEATHER & MEMORY),IVORY,TRIM0#
main58810-0T040-B0supersedes 58810-0T032-B0i201205-201207
WITH(LEATHER & MEMORY),LT. GRAY,TRIM1#
main58810-0T040-C1supersedes 58810-0T032-C1i201205-201207
WITH(LEATHER & MEMORY),BLACK,TRIM2#
main58810-0T041-A0supersedes 58810-0T032-A0i201208-201304
WITH(LEATHER & MEMORY),IVORY,TRIM0#
main58810-0T041-B0supersedes 58810-0T032-B0i201208-201304
WITH(LEATHER & MEMORY),LT.GRAY,TRIM1#
main58810-0T041-C1supersedes 58810-0T032-C1i201208-201304
WITH(LEATHER & MEMORY),BLACK,TRIM2#
main58810-0T042-A0supersedes 58810-0T032-A0i201305-201612
WITH(LEATHER & MEMORY),IVORY,TRIM0#
main58810-0T042-B0supersedes 58810-0T032-B0i201305-201612
WITH(LEATHER & MEMORY),LT.GRAY,TRIM1#
main58810-0T042-C1supersedes 58810-0T032-C1i201305-201612
WITH(LEATHER & MEMORY),BLACK,TRIM2#
58810JBOX ASSY, CONSOLE
main58802-0T010-A0i200811-201205
IVORY,TRIM0#
main58802-0T010-B0i200811-201205
LT.GRAY,TRIM1#
main58802-0T010-C0i201205-201207
BLACK,TRIM2#
main58802-0T011-A0i201208-201612
IVORY,TRIM0#
main58802-0T011-B0i201208-201612
LT.GRAY,TRIM1#
main58802-0T011-C0i201208-201612
BLACK,TRIM2#
58811DCLIP(FOR CONSOLE BOX)
main90467-05063-C0×2i200811-201205
BLACK
58815ACARPET, CONSOLE BOX
main58815-0T010i201205
58815BCARPET, CONSOLE BOX
main58815-0T020i200811-201205
58818ACOVER, CONSOLE BOX, FR
main58818-0T010i200811-201204
58823BBOX, CONSOLE COMPARTMENT
main58806-0T040-B1i201205-201612
SILVER,TRIM2#
main58806-0T040-C0i201205-201612
BLACK,TRIM1#
main58806-0T040-E0i201205-201612
DARK BROWN,TRIM0#
main58806-0T020-E1supersedes 58806-0T010-E0i200811-201205
CORE PACKAGE&WITH(LEATHER PACKAGE),DARK BROWN,TRIM0#,1#
58825APOCKET, CONSOLE BOX
main58825-0T010i200811-201205
58856CHOLDER, CONSOLE
main58856-0T010i200811-200911
58862FDUCT, CONSOLE BOX, NO.2
main58862-0T010i200811-201204
58903APANEL SUB-ASSY, CONSOLE REAR END
main58903-0T030-C1i201205-201207
BLACK,TRIM2#
main58903-0T031-C1i201208-201304
BLACK,TRIM2#
main58903-0T032-C1i201305-201612
BLACK,TRIM2#
main58903-0T020-A0supersedes 58903-0T032-A0i200811-201203
CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#
main58903-0T020-B0supersedes 58903-0T032-B0i200811-201203
CORE PACKAGE&WITH(LEATHER PACKAGE),LT.GRAY,TRIM1#
main58903-0T021-A0supersedes 58903-0T032-A0i201204-201205
CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#
sub58903-0T022
main58903-0T021-B0supersedes 58903-0T032-B0i201204-201205
CORE PACKAGE&WITH(LEATHER PACKAGE),LT.GRAY,TRIM1#
sub58903-0T022
58920AARMREST ASSY, REAR CONSOLE
main58920-0T020-A1supersedes 58920-0T010-A1i200811-201203
CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#
main58920-0T020-B1supersedes 58920-0T010-B1i200811-201203
CORE PACKAGE&WITH(LEATHER PACKAGE),LT. GRAY,TRIM1#
main58920-0T021-A1supersedes 58920-0T010-A1i201204-201205
CORE PACKAGE&WITH(LEATHER PACKAGE),IVORY,TRIM0#
sub58920-0T022
main58920-0T021-B1supersedes 58920-0T010-B1i201204-201205
CORE PACKAGE&WITH(LEATHER PACKAGE),LT.GRAY,TRIM1#
sub58920-0T022
main58920-0T030-A0supersedes 58920-0T010-A1i201205-201207
WITH(LEATHER & MEMORY),IVORY,TRIM0#
main58920-0T030-B0supersedes 58920-0T010-B1i201205-201207
WITH(LEATHER & MEMORY),LT. GRAY,TRIM1#
main58920-0T030-C0supersedes 58920-0T010-C0i201205-201207
WITH(LEATHER & MEMORY),BLACK,TRIM2#
main58920-0T031-A0supersedes 58920-0T010-A1i201208-201612
WITH(LEATHER & MEMORY),IVORY,TRIM0#
main58920-0T031-B0supersedes 58920-0T010-B1i201208-201612
WITH(LEATHER & MEMORY),LT. GRAY,TRIM1#
main58920-0T031-C0supersedes 58920-0T010-C0i201208-201612
WITH(LEATHER & MEMORY),BLACK,TRIM2#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main58959-60060×2i200811-201205
58959DCUSHION, REAR CONSOLE BOX
main58959-60060×2i200811-201204
58981BRETAINER, CONSOLE MOUNTING, NO.1
main58981-0T010i200811-201204
8121
8202
9008011717
main90080-11717
9008011736
main90080-11736
9008016091
main90080-16091
9008016097
main90080-16097
90161A0003
main90161-A0003
90167A0017
main90167-A0017
9046710201
main90467-10201
90467A0011
main90467-A0011
9616000500
main96160-00500

29 parts on this diagram · 1 diagram in section
