Toyota VENZA — ARMREST & VISOR

74310VISOR ASSY, RH

main74310-48560-B2i202210-202408

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#

main74310-48560-C3i202210-202408

BLACK,TRIM2#,4#

74317COVER, VISOR BRACKET, RH

main74317-60020-B1i202007-202210

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,20

main74317-60020-C2i202210-202408

BLACK,TRIM2#,4#

74318COVER, VISOR BRACKET, LH

main74317-60020-B1i202007-202210

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,20

main74317-60020-C2i202007-202210

BLACK,TRIM2#,4#; BLACK,TRIM20,4#

74320VISOR ASSY, LH

main74320-48510-B2i202007-202210

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#

main74320-48510-C3i202007-202210

BLACK,TRIM2#,4#

74348BHOLDER, VISOR, RH

main74348-47010-B3i202007-202210

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,20

main74348-47010-C0i202210-202408

BLACK,TRIM2#,4#

74348CHOLDER, VISOR, LH

main74348-47010-B3i202007-202210

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,20

main74348-47010-C0i202007-202210

BLACK,TRIM2#,4#; BLACK,TRIM20,4#

74610SGRIP ASSY, ASSIST

main74610-12140-B1×2i202007-202210

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,20

main74610-12140-C0×2i202210-202408

BLACK,TRIM2#,4#

74612COVER, ASSIST GRIP

main74612-47070-B1×8i202007-202210

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,20

main74612-47070-C2×8i202210-202408

BLACK,TRIM2#,4#

74614BPLATE, ASSIST GRIP LOCK

main74614-12020×8i202210-202408

74620CGRIP ASSY, ASSIST, REAR RH

main74610-12170-B1i202007-202210

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,20

main74610-12170-C0i202210-202408

BLACK,TRIM2#,4#

74630EGRIP ASSY, ASSIST, REAR LH

main74610-12180-B1i202007-202210

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,20

main74610-12180-C0i202210-202408

BLACK,TRIM2#,4#

9015250027

main90152-50027

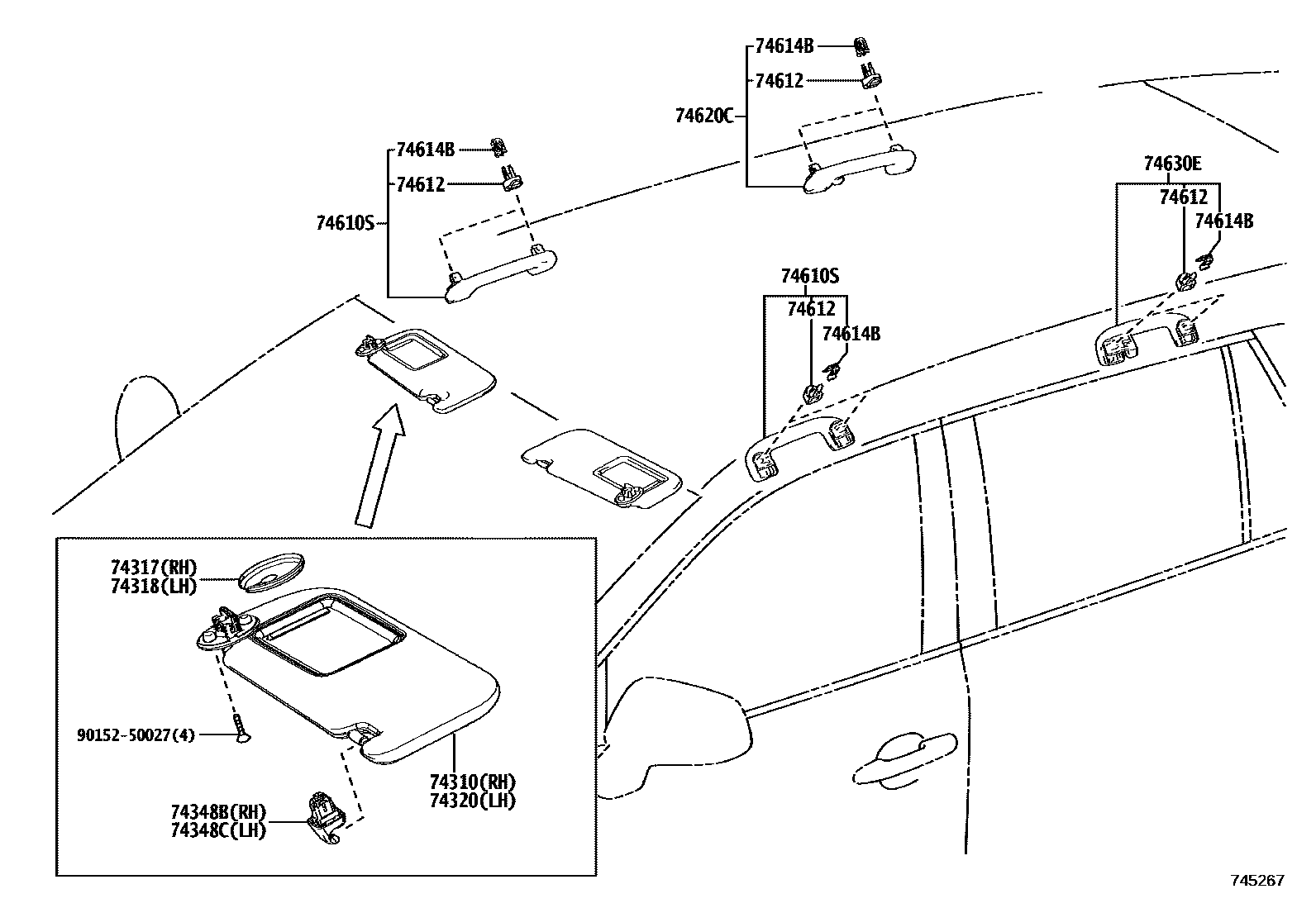

12 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota VENZA

This section contains 12 genuine Toyota parts for the ARMREST & VISOR system of the Toyota VENZA. Key components include: VISOR ASSY, RH, COVER, VISOR BRACKET, RH, COVER, VISOR BRACKET, LH, VISOR ASSY, LH, HOLDER, VISOR, RH.
