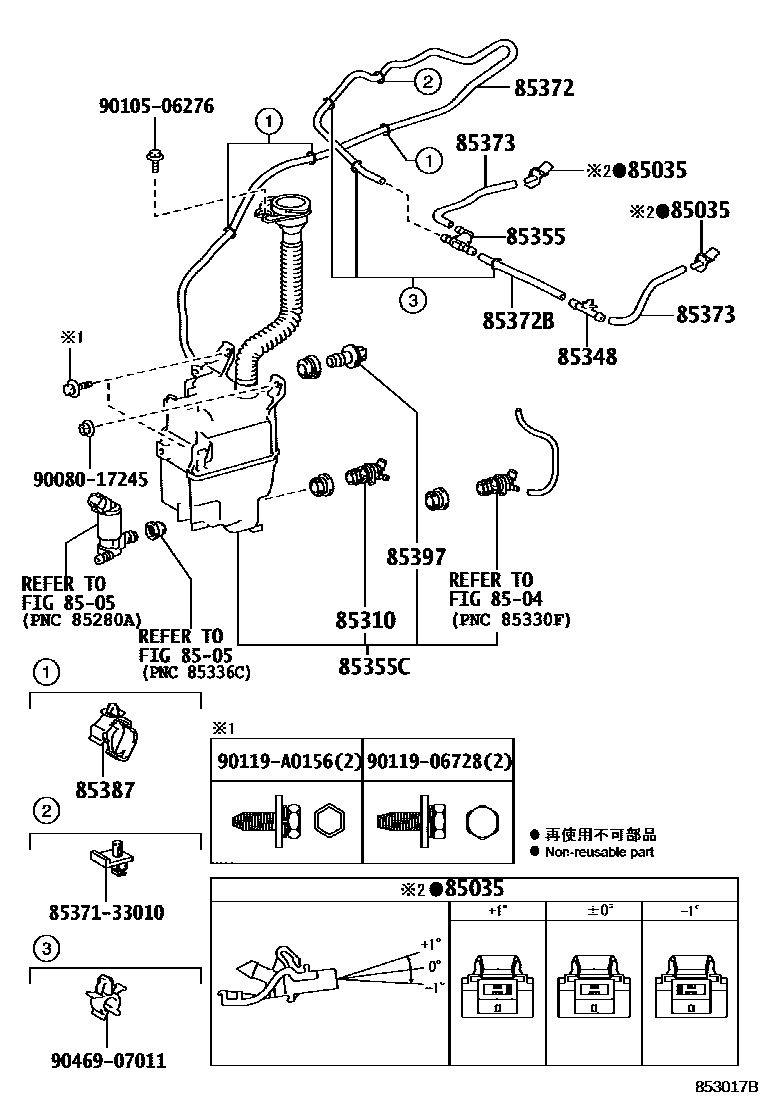

Toyota VENZA — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0T010×2i201303-201506

ANGLE 0

main85381-0T020×2i201303-201506

ANGLE +1

main85381-0T030×2i201303-201506

ANGLE -1

8504REAR WASHER

→ Go to FIG 85-04

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190i201303-201506

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-20800i201303-201506

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201303-201506

85355CJAR, WASHER, C

main85355-0T010i201303-201506

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33109i201303-201506

L=2030

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33065i201303-201506

L=390

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33097×2i201303-201506

L=265

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-1E350×3i201303-201506

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040i201303-201506

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9008017245

main90080-17245

9010506276

main90105-06276

9011906728

main90119-06728

90119A0156

main90119-A0156

9046907011

main90469-07011

18 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota VENZA

This section contains 18 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota VENZA. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, HEADLAMP CLEANER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JOINT, WINDSHIELD WASHER HOSE, NO.1.
