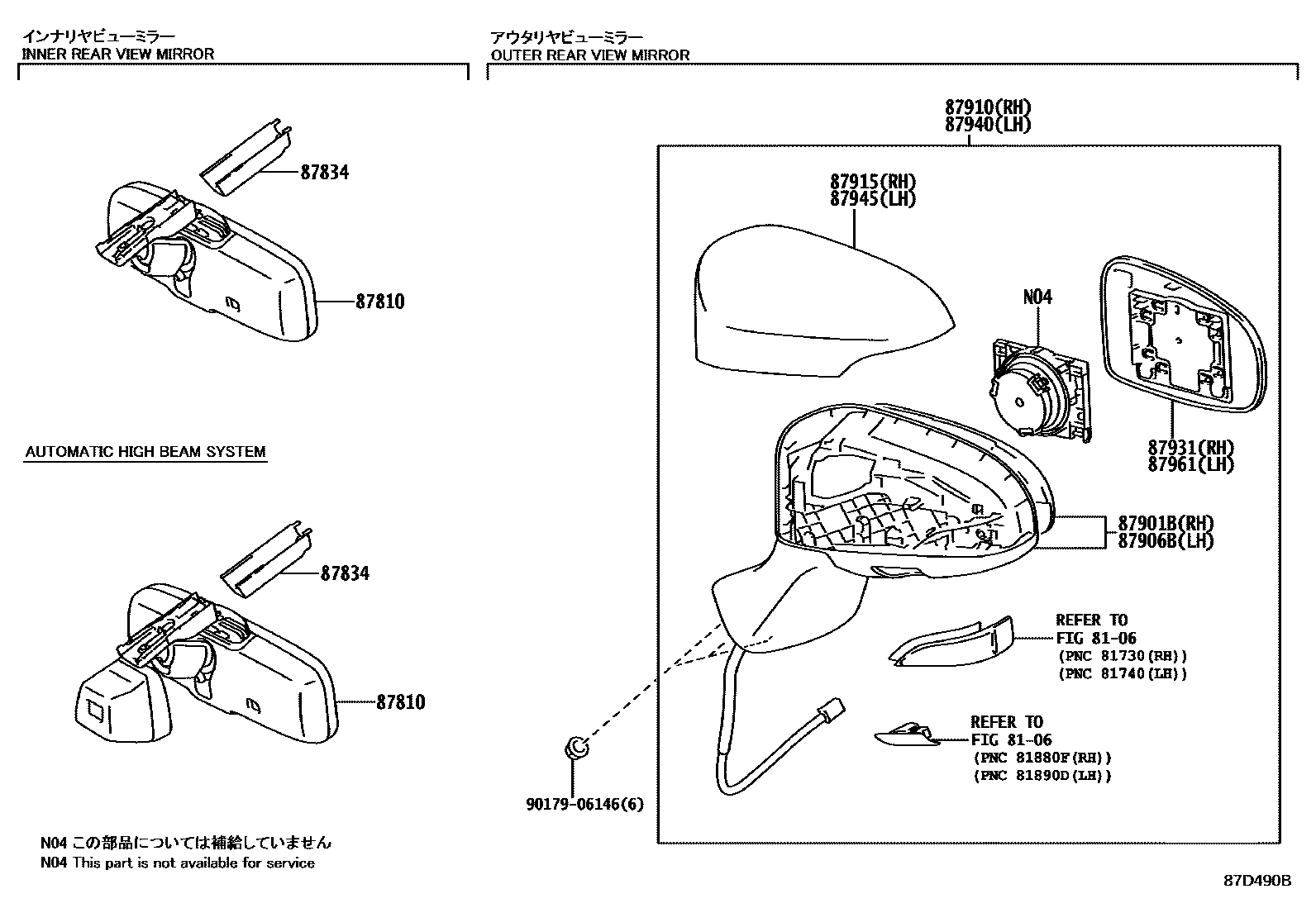

Toyota VENZA — MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-0T050supersedes 87810-07030i201303-201506

WITH(SMART KEY)

main87810-0T060supersedes 87810-07030i201303-201506

RUSSIA SPEC&WITH(SMART KEY)

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-0W050i201303-201506

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87901-0T030-A0i201303-201304

WHITE PEARL CS.,070

main87901-0T030-B0i201303-201304

SILVER ME.,1F7

main87901-0T030-C0i201303-201304

ATTITUDE BLACK MC.,218

main87901-0T030-D0i201303-201304

RED M.M.,3R3

main87901-0T030-E0i201303-201304

BROWN M.M.,4U2

main87901-0T030-E1i201303-201304

DK. BROWN M.M.,4U3

main87901-0T030-G0i201303-201304

OLIVE M.M.,6T7

main87901-0T050-A0i201304-201506

WHITE PEARL CS.,070

main87901-0T050-B0i201304-201408

SILVER ME.,1F7

main87901-0T050-B1i201304-201402

GRAY ME.,1G3

main87901-0T050-B2i201304-201402

DK. STEEL MC.,1H2

main87901-0T050-B3i201408-201506

SILVER ME.,1J9

main87901-0T050-C0i201304-201402

ATTITUDE BLACK MC.,218

main87901-0T050-C1i201402-201506

BLACK,1G3 ,1H2 ,218

main87901-0T050-D0i201304-201506

RED M.M.,3R3

main87901-0T050-E0i201304-201506

BROWN M.M.,4U2

main87901-0T050-E1i201304-201506

DK. BROWN M.M.,4U3

main87901-0T050-G0i201304-201408

OLIVE M.M.,6T7

main87901-0T050-J0i201408-201506

DK.BLUE M.M.,8W6

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87906-0T030-A0i201303-201304

WHITE PEARL CS.,070

main87906-0T030-B0i201303-201304

SILVER ME.,1F7

main87906-0T030-C0i201303-201304

ATTITUDE BLACK MC.,218

main87906-0T030-D0i201303-201304

RED M.M.,3R3

main87906-0T030-E0i201303-201304

BROWN M.M.,4U2

main87906-0T030-E1i201303-201304

DK. BROWN M.M.,4U3

main87906-0T030-G0i201303-201304

OLIVE M.M.,6T7

main87906-0T050-A0i201304-201506

WHITE PEARL CS.,070

main87906-0T050-B0i201304-201408

SILVER ME.,1F7

main87906-0T050-B1i201304-201402

GRAY ME.,1G3

main87906-0T050-B2i201304-201402

DK. STEEL MC.,1H2

main87906-0T050-B3i201408-201506

SILVER ME.,1J9

main87906-0T050-C0i201304-201402

ATTITUDE BLACK MC.,218

main87906-0T050-C1i201402-201506

BLACK,1G3 ,1H2 ,218

main87906-0T050-D0i201304-201506

RED M.M.,3R3

main87906-0T050-E0i201304-201506

BROWN M.M.,4U2

main87906-0T050-E1i201304-201506

DK. BROWN M.M.,4U3

main87906-0T050-G0i201304-201408

OLIVE M.M.,6T7

main87906-0T050-J0i201408-201506

DK.BLUE M.M.,8W6

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-0T060-A0i201303-201402

WHITE PEARL CS.,070

main87910-0T060-A1i201402-201506

WHITE PEARL CS.,070

main87910-0T060-B0i201303-201408

SILVER ME.,1F7

main87910-0T060-B1i201303-201402

GRAY ME.,1G3

main87910-0T060-B2i201303-201402

DK. STEEL MC.,1H2

main87910-0T060-B4i201402-201506

GRAY ME.,1G3

main87910-0T060-B5i201402-201506

DK. STEEL MC.,1H2

main87910-0T060-B6i201402-201506

SILVER ME.,1J9

main87910-0T060-C0i201303-201402

ATTITUDE BLACK MC.,218

main87910-0T060-C1i201402-201506

ATTITUDE BLACK MC.,218

main87910-0T060-D0i201303-201402

RED M.M.,3R3

main87910-0T060-D1i201402-201506

RED M.M.,3R3

main87910-0T060-E0i201303-201402

BROWN M.M.,4U2

main87910-0T060-E1i201303-201402

DK. BROWN M.M.,4U3

main87910-0T060-E2i201402-201506

BROWN M.M.,4U2

main87910-0T060-E3i201402-201506

DK. BROWN M.M.,4U3

main87910-0T060-G0i201303-201408

OLIVE M.M.,6T7

main87910-0T060-J1i201402-201506

DK.BLUE M.M.,8W6

87915COVER, OUTER MIRROR, RH

main87915-0T020-A0i201303-201506

WHITE PEARL CS.,070

main87915-0T020-B0i201303-201408

SILVER ME.,1F7

main87915-0T020-B1i201303-201506

GRAY ME.,1G3

main87915-0T020-B2i201303-201506

DK. STEEL MC.,1H2

main87915-0T020-B4i201408-201506

SILVER ME.,1J9

main87915-0T020-C0i201303-201506

ATTITUDE BLACK MC.,218

main87915-0T020-D0i201303-201506

RED M.M.,3R3

main87915-0T020-E0i201303-201506

BROWN M.M.,4U2

main87915-0T020-E1i201303-201506

DK. BROWN M.M.,4U3

main87915-0T020-G0i201303-201408

OLIVE M.M.,6T7

main87915-0T020-J0i201408-201506

DK.BLUE M.M.,8W6

87931OUTER MIRROR, RH

main87902-0T030i201303-201506

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-0T060-A0i201303-201402

WHITE PEARL CS.,070

main87940-0T060-A1i201402-201506

WHITE PEARL CS.,070

main87940-0T060-B0i201303-201408

SILVER ME.,1F7

main87940-0T060-B1i201303-201402

GRAY ME.,1G3

main87940-0T060-B2i201303-201402

DK. STEEL MC.,1H2

main87940-0T060-B4i201402-201506

GRAY ME.,1G3

main87940-0T060-B5i201402-201506

DK. STEEL MC.,1H2

main87940-0T060-B6i201402-201506

SILVER ME.,1J9

main87940-0T060-C0i201303-201402

ATTITUDE BLACK MC.,218

main87940-0T060-C1i201402-201506

ATTITUDE BLACK MC.,218

main87940-0T060-D0i201303-201402

RED M.M.,3R3

main87940-0T060-D1i201402-201506

RED M.M.,3R3

main87940-0T060-E0i201303-201402

BROWN M.M.,4U2

main87940-0T060-E1i201303-201402

DK. BROWN M.M.,4U3

main87940-0T060-E2i201402-201506

BROWN M.M.,4U2

main87940-0T060-E3i201402-201506

DK. BROWN M.M.,4U3

main87940-0T060-G0i201303-201408

OLIVE M.M.,6T7

main87940-0T060-J1i201402-201506

DK.BLUE M.M.,8W6

87945COVER, OUTER MIRROR, LH

main87945-0T020-A0i201303-201506

WHITE PEARL CS.,070

main87945-0T020-B0i201303-201408

SILVER ME.,1F7

main87945-0T020-B1i201303-201506

GRAY ME.,1G3

main87945-0T020-B2i201303-201506

DK. STEEL MC.,1H2

main87945-0T020-B4i201408-201506

SILVER ME.,1J9

main87945-0T020-C0i201303-201506

ATTITUDE BLACK MC.,218

main87945-0T020-D0i201303-201506

RED M.M.,3R3

main87945-0T020-E0i201303-201506

BROWN M.M.,4U2

main87945-0T020-E1i201303-201506

DK. BROWN M.M.,4U3

main87945-0T020-G0i201303-201408

OLIVE M.M.,6T7

main87945-0T020-J0i201408-201506

DK.BLUE M.M.,8W6

87961MIRROR OUTER, LH

main87907-0T030i201303-201506

9017906146

main90179-06146

12 parts on this diagram · 1 diagram in section

MIRROR for Toyota VENZA

This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota VENZA. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
