Toyota VENZA — HEATING & AIR CONDITIONING - COMPRESSOR

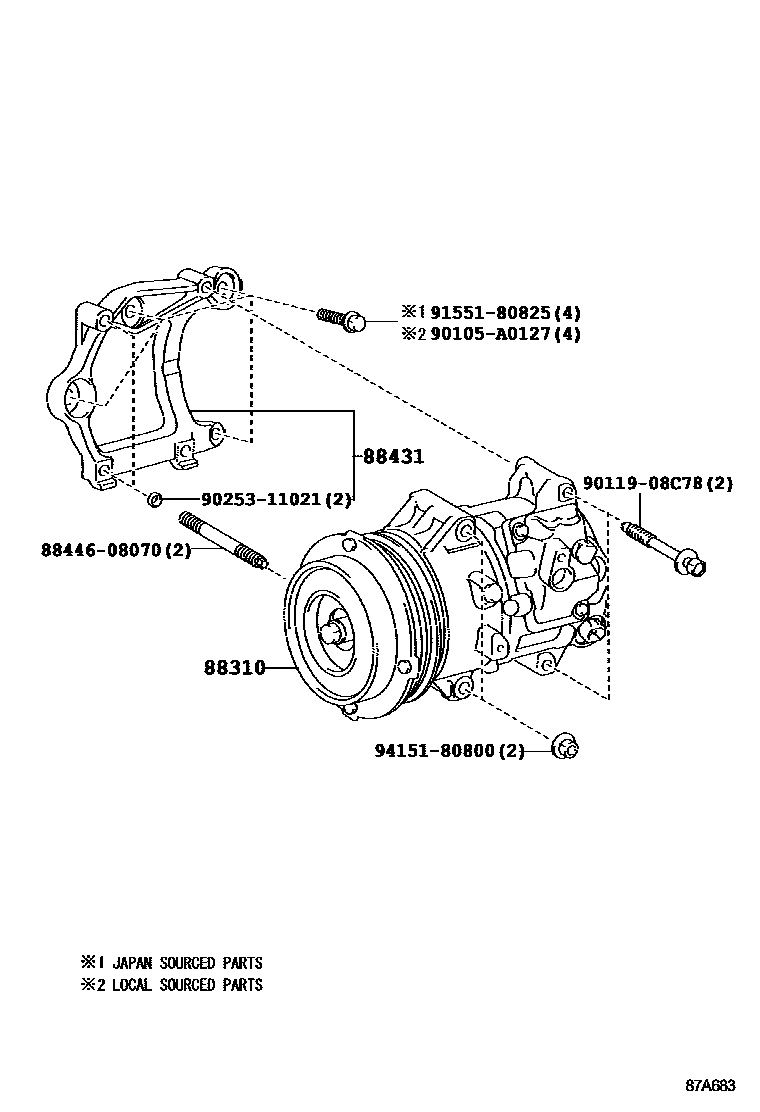

Parts diagram

88310COMPRESSOR ASSY, W/PULLEY

main88310-0T020i201303-201506

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main12502-0V040i201303-201506

(L)

main12502-36010i201303-201506

(J)

8844608070BOLT, IDLE PULLEY

main88446-08070

90105A0127

main90105-A0127

9011908C78

main90119-08C78

9025311021

main90253-11021

9155180825

main91551-80825

9415180800

main94151-80800

8 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota VENZA

This section contains 8 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota VENZA. Key components include: COMPRESSOR ASSY, W/PULLEY, BRACKET, COMPRESSOR MOUNTING, NO.1, BOLT, IDLE PULLEY.
