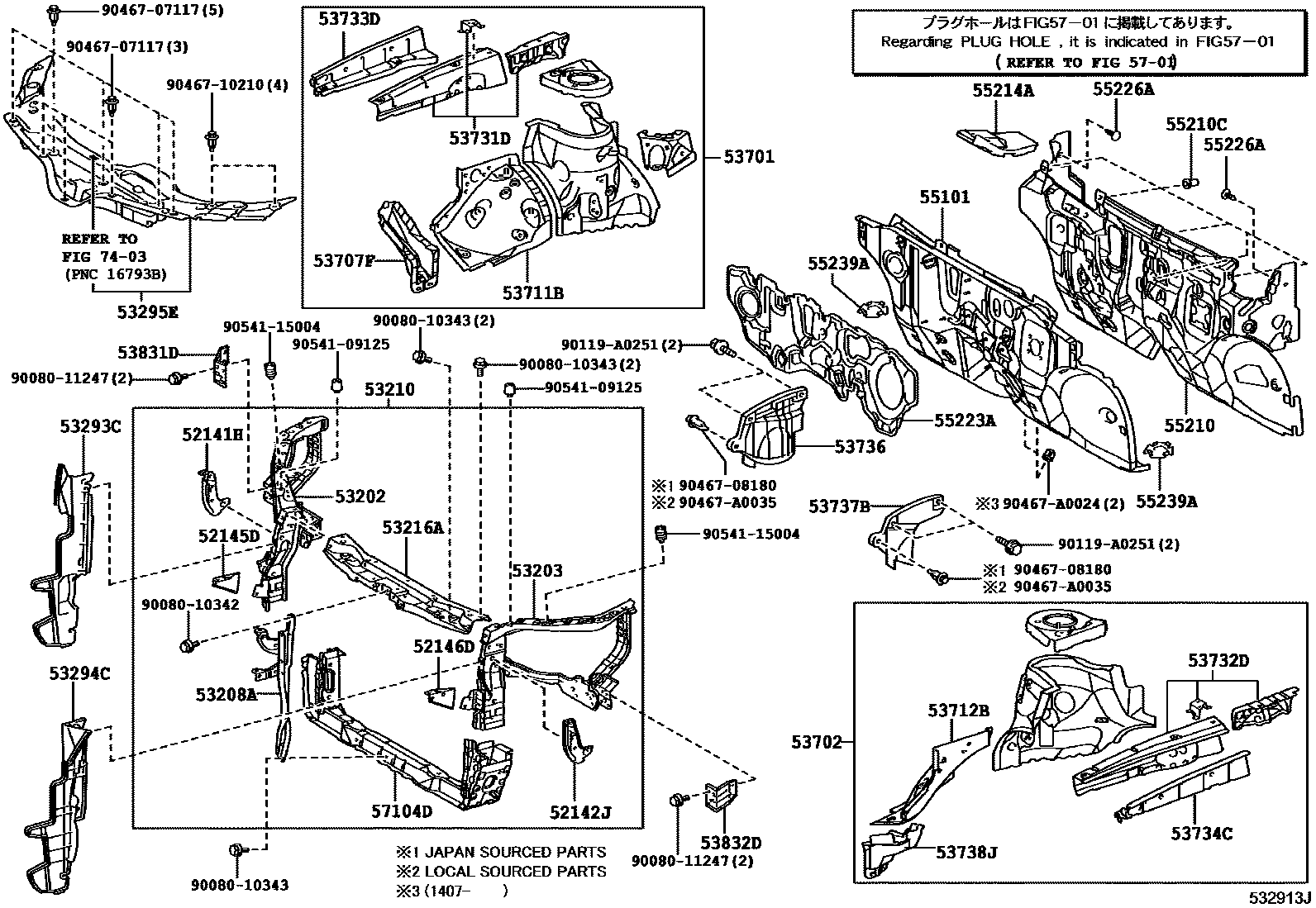

Toyota VENZA — FRONT FENDER APRON & DASH PANEL
52141HARM, FRONT BUMPER, UPPER RH
52142JARM, FRONT BUMPER, UPPER LH
52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH
52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53208ASUPPORT SUB-ASSY, HOOD LOCK
53210SUPPORT ASSY, RADIATOR
53216ASUPPORT, RADIATOR, UPPER
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53295ESEAL, COOL AIR INTAKE DUCT
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53736SEAL, FRONT FENDER APRON, RH
53737BSEAL, FRONT FENDER APRON, LH
53738JGUSSET, FRONT FENDER APRON WIND GUIDE, LH
53831DPANEL, FRONT FENDER SIDE, RH
53832DPANEL, FRONT FENDER SIDE, LH
55210CCLIP
55214APAD, DASH PANEL INSULATOR, NO.2
55223AINSULATOR, DASH PANEL, OUTER
55226ACLIP
BLACK
55239APLATE, DASH PANEL INSULATOR, NO.3
5701HOLE PLUG
57104DMEMBER SUB-ASSY, FRONT CROSS
7403CAUTION PLATE (EXTERIOR & INTERIOR)
9008010342
main90080-10342
9008010343
main90080-10343
9008011247
main90080-11247
90119A0251
main90119-A0251
9046707117
main90467-07117
9046708180
main90467-08180
9046710210
main90467-10210
90467A0024
main90467-A0024
90467A0035
main90467-A0035
9054109125
main90541-09125
9054115004
main90541-15004
47 parts on this diagram · 1 diagram in section
FRONT FENDER APRON & DASH PANEL for Toyota VENZA
This section contains 47 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota VENZA. Key components include: ARM, FRONT BUMPER, UPPER RH, ARM, FRONT BUMPER, UPPER LH, BRACKET, FRONT BUMPER SIDE MOUNTING, RH, BRACKET, FRONT BUMPER SIDE MOUNTING, LH, SUPPORT SUB-ASSY, RADIATOR, RH.
