Toyota VENZA — CONSOLE BOX & BRACKET

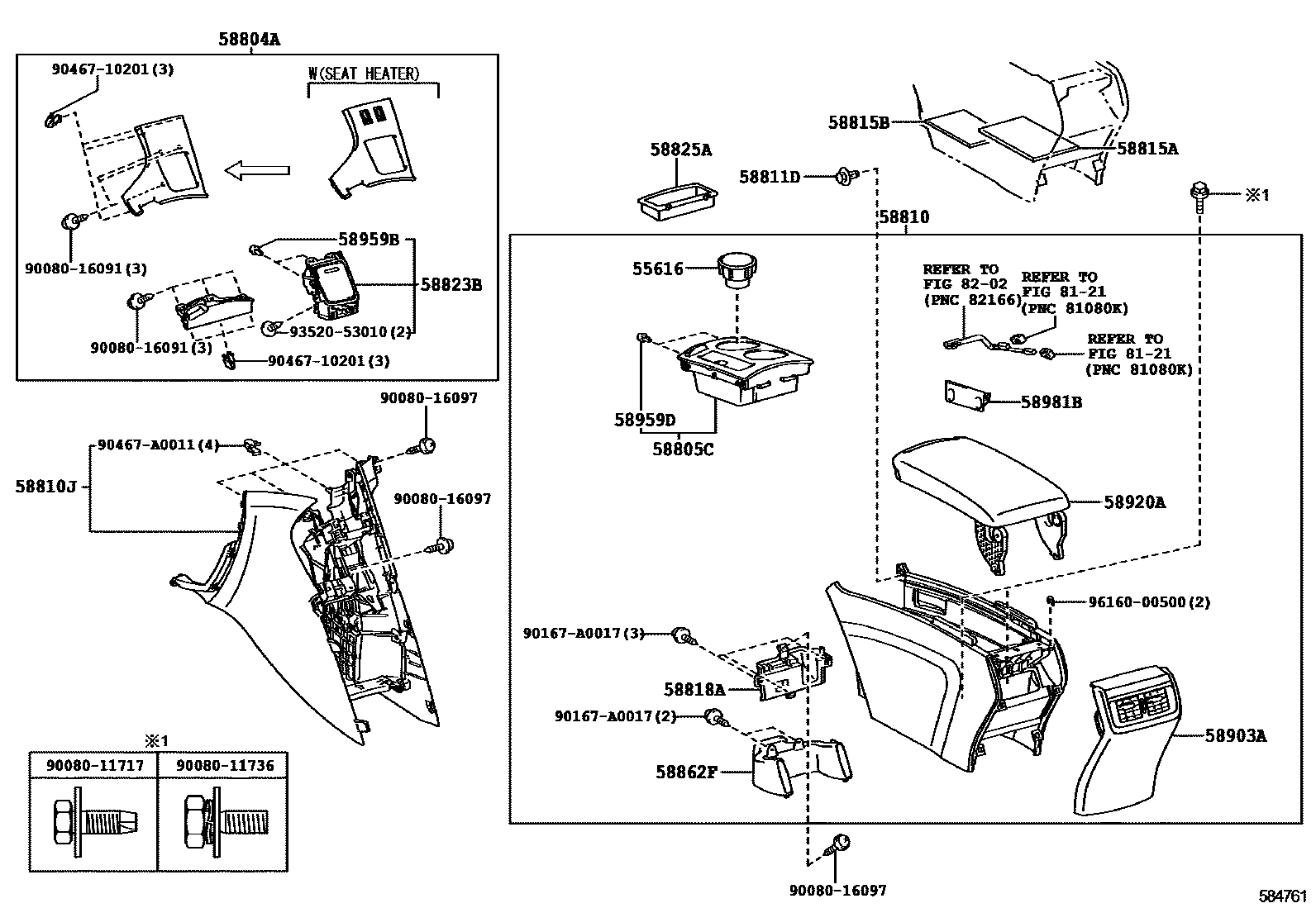

Parts diagram

55616DAMPER, INSTRUMENT PANEL CUP HOLDER

main55616-0T010i201303-201506

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-0T051-B1i201303-201506

SILVER,TRIM2#

main58804-0T051-C0i201303-201506

BLACK,TRIM1#

main58804-0T051-E0i201303-201506

DARK BROWN,TRIM0#

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-0T031-B1i201303-201506

SILVER,TRIM2#

main58805-0T031-C0i201303-201506

BLACK,TRIM1#

main58805-0T031-E0i201303-201506

DARK BROWN,TRIM0#

58810CONSOLE ASSY

main58810-0T041-A0i201303-201304

IVORY,TRIM0#

main58810-0T041-B0i201303-201304

LT.GRAY,TRIM1#

main58810-0T041-C1i201303-201304

BLACK,TRIM2#

main58810-0T042-A0i201305-201506

IVORY,TRIM0#

main58810-0T042-B0i201305-201506

LT.GRAY,TRIM1#

main58810-0T042-C1i201305-201506

BLACK,TRIM2#

58810JBOX ASSY, CONSOLE

main58802-0T011-A0i201303-201506

IVORY,TRIM0#

main58802-0T011-B0i201303-201506

LT.GRAY,TRIM1#

main58802-0T011-C0i201303-201506

BLACK,TRIM2#

58811DCLIP(FOR CONSOLE BOX)

main90467-05063-C0×2i201303-201506

BLACK

58815ACARPET, CONSOLE BOX

main58815-0T010i201303-201506

58815BCARPET, CONSOLE BOX

main58815-0T020i201303-201506

58818ACOVER, CONSOLE BOX, FR

main58818-0T010i201303-201506

58823BBOX, CONSOLE COMPARTMENT

main58806-0T040-B1i201303-201506

SILVER,TRIM2#

main58806-0T040-C0i201303-201506

BLACK,TRIM1#

main58806-0T040-E0i201303-201506

DARK BROWN,TRIM0#

58825APOCKET, CONSOLE BOX

main58825-0T010i201303-201506

58862FDUCT, CONSOLE BOX, NO.2

main58862-0T010i201303-201506

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-0T031-A0i201303-201304

IVORY,TRIM0#

main58903-0T031-B0i201303-201304

LT.GRAY,TRIM1#

main58903-0T031-C1i201303-201304

BLACK,TRIM2#

main58903-0T032-A0i201305-201506

IVORY,TRIM0#

main58903-0T032-B0i201305-201506

LT.GRAY,TRIM1#

main58903-0T032-C1i201305-201506

BLACK,TRIM2#

58920AARMREST ASSY, REAR CONSOLE

main58920-0T031-A0i201303-201506

IVORY,TRIM0#

main58920-0T031-B0i201303-201506

LT. GRAY,TRIM1#

main58920-0T031-C0i201303-201506

BLACK,TRIM2#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2i201303-201506

58959DCUSHION, REAR CONSOLE BOX

main58959-60060×2i201303-201506

58981BRETAINER, CONSOLE MOUNTING, NO.1

main58981-0T010i201303-201506

8121

8202

9008011717

main90080-11717

9008011736

main90080-11736

9008016091

main90080-16091

9008016097

main90080-16097

90167A0017

main90167-A0017

9046710201

main90467-10201

90467A0011

main90467-A0011

9352053010

main93520-53010

9616000500

main96160-00500

28 parts on this diagram · 1 diagram in section
