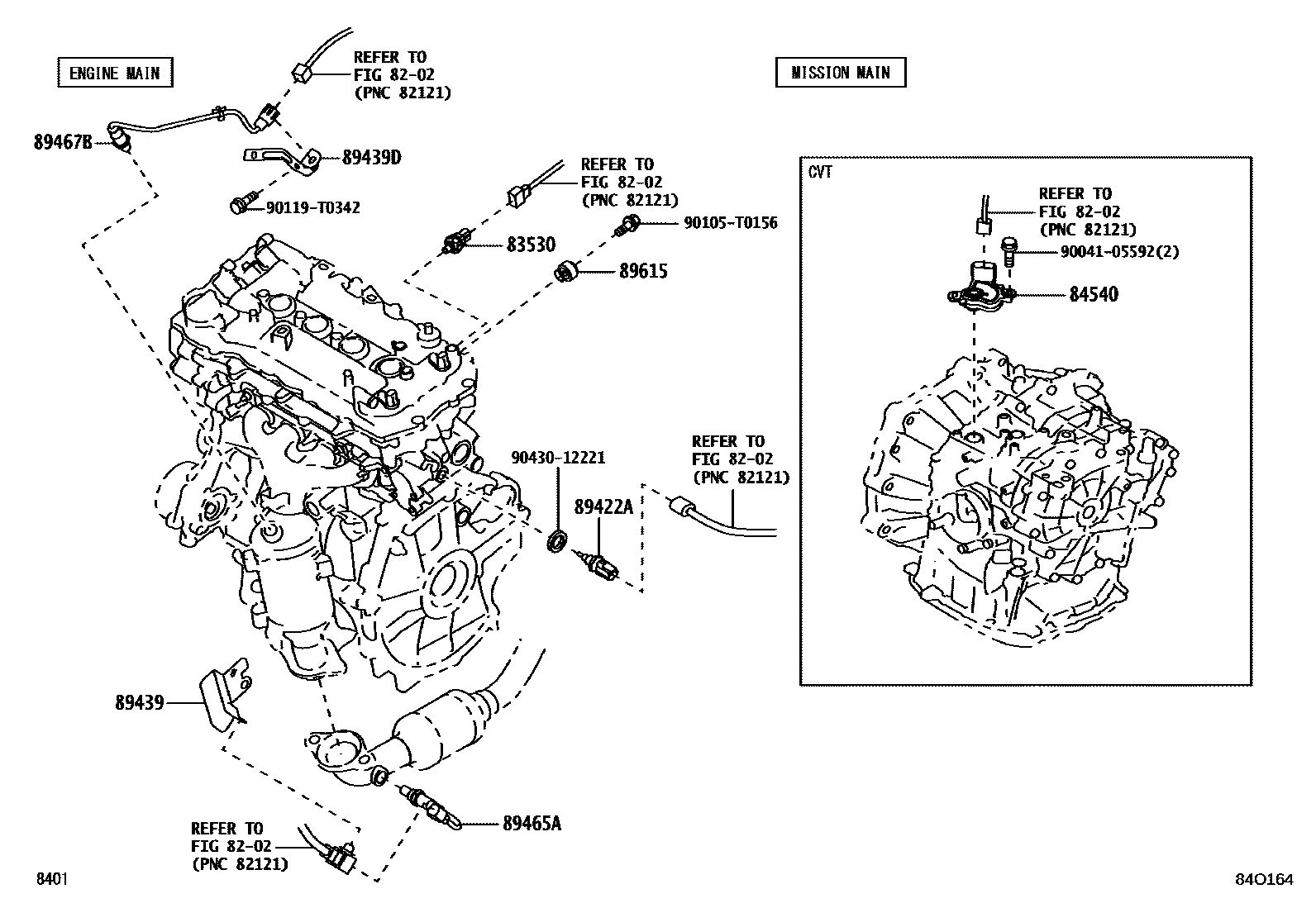

8202

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-52050iW151202206

84540SWITCH ASSY, NEUTRAL START

main84540-B2040iW151202206

89422ASENSOR, WATER TEMPERATURE

main89422-33030iW151202206

89439BRACKET, SENSOR

main89439-BZ200iW151202206

89439DBRACKET, SENSOR, NO.1

main89439-BZ210iW151202206

89465ASENSOR, OXYGEN NO.2

main89465-BZ610iW151202206

89467BSENSOR, AIR FUEL RATIO

main89467-BZ020iW151202206

89615SENSOR, KNOCK CONTROL

main89615-20090iW151202206

9004105592

main90041-05592

90105T0156

main90105-T0156

90119T0342

main90119-T0342

9043012221

main90430-12221

13 parts on this diagram · 8 diagrams in section
