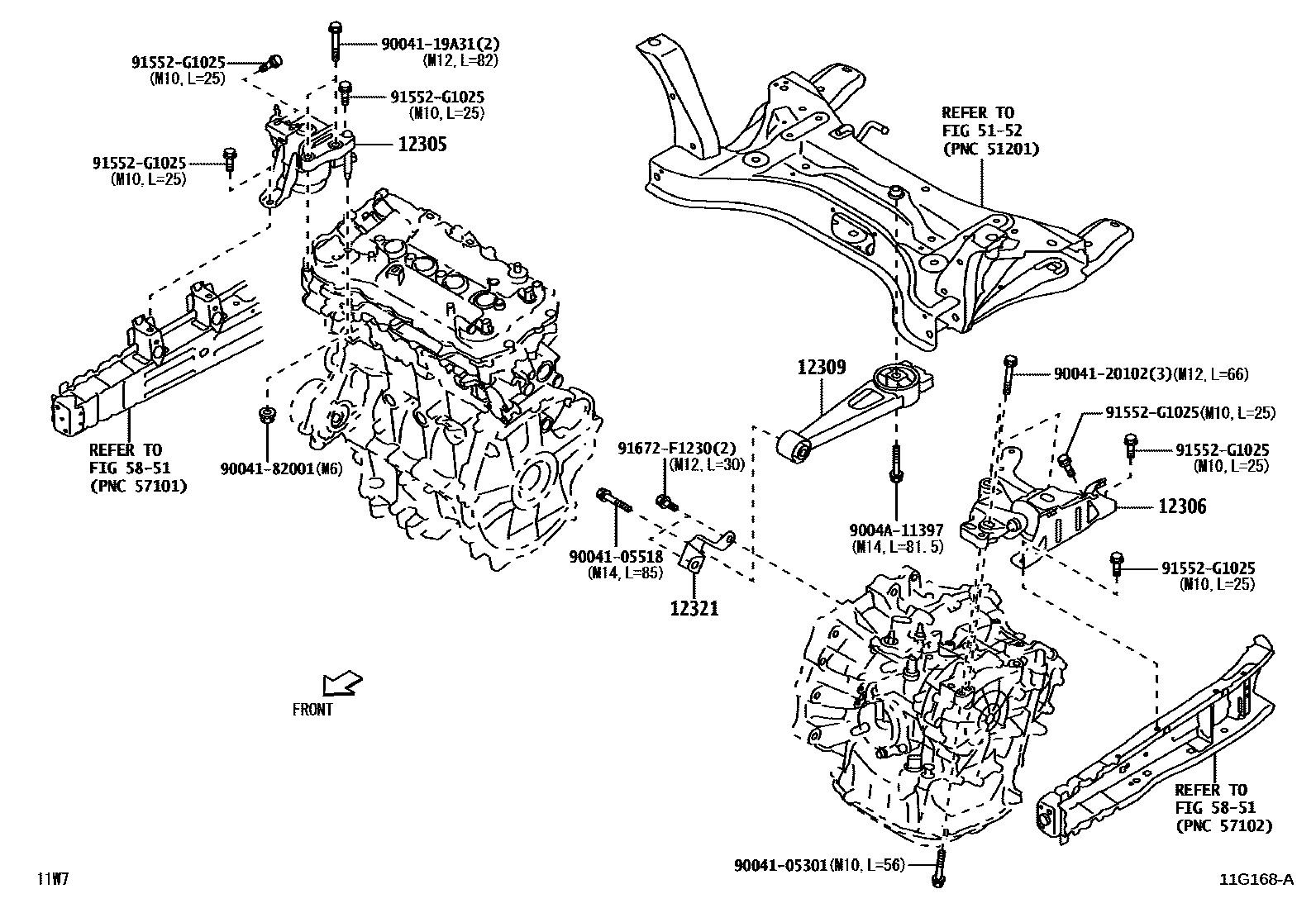

Toyota VELOZ — MOUNTING

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-BZ370i2NRVE..W151202206

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

main12306-BZ410i2NRVE..W151202206

12309ROD SUB-ASSY, ENGINE MOVING CONTROL

main12309-BZ310i2NRVE..W151202206

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-BZ360i2NRVE..W151202206

5152

5851

9004105301

main90041-05301

9004105518

main90041-05518

9004119A31

main90041-19A31

9004120102

main90041-20102

9004182001

main90041-82001

9004A11397

main9004A-11397

91552G1025

main91552-G1025

91672F1230

main91672-F1230

14 parts on this diagram · 1 diagram in section
